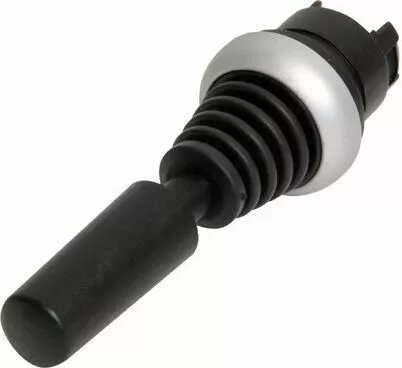

Eaton M22-WJ2H Two-Position Joystick Actuator, 22mm, Left-Right, Spring-Return

The Eaton M22-WJ2H is a high-quality two-position joystick actuator designed for integration into industrial control panels and automation systems. Featuring a 22mm mounting diameter, this device provides reliable manual control for machinery and electrical equipment. The unit is engineered for left-right operation and includes a spring-return mechanism, which automatically resets the joystick to the center position once released, ensuring safe and repeatable switching actions.

Advantages

This joystick actuator stands out due to its robust construction and compatibility with the extensive RMQ-Titan series. Its ergonomic design allows for intuitive operation in demanding industrial environments where precision is critical. The spring-return functionality enhances operational safety by preventing the switch from being left in an active state unintentionally. Furthermore, the device is built to withstand harsh conditions, offering long-term reliability and consistent performance in various process control applications.

Suitable for

• Manual control of industrial machinery
• Process control systems
• Automation panels
• Electrical switching applications

This actuator may not be suitable for applications requiring a maintained position, as the spring-return mechanism forces the switch back to the center immediately upon release. It is also not intended for use in environments that exceed its specified ingress protection ratings or for heavy-duty mechanical force applications beyond standard manual operation.

Key specifications

• Mounting diameter: 22mm
• Operation type: Two-position, left-right
• Mechanism: Spring-return
• Series compatibility: RMQ-Titan

To use the Eaton M22-WJ2H, mount the actuator into a standard 22mm hole on your control panel or enclosure. Ensure the device is securely fastened using the appropriate mounting hardware. Connect the necessary contact blocks to the rear of the actuator to complete your electrical circuit. Once installed, the joystick can be moved to the left or right to trigger the connected switching functions, with the spring-return mechanism ensuring it returns to the neutral position after each use.

What to consider before purchase

• Verify that your control panel has a 22mm mounting hole available.
• Ensure the spring-return functionality meets your specific operational requirements.
• Check compatibility with your existing RMQ-Titan contact blocks.
• Confirm the environmental conditions of your installation site.

Usage recommendations: Regularly inspect the actuator for any signs of mechanical wear or debris accumulation to maintain smooth operation. Ensure that all electrical connections to the contact blocks are tightened according to manufacturer specifications to prevent intermittent signals.
