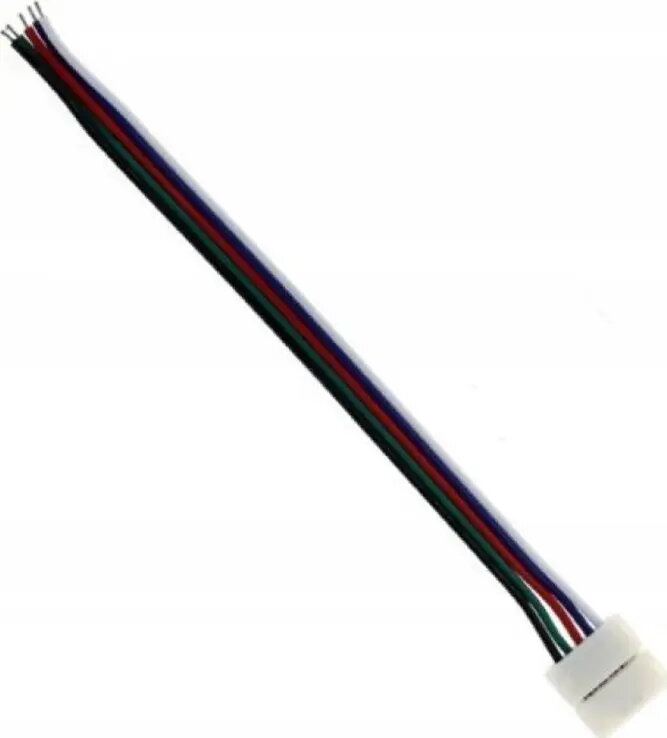

Connector for LED RGB strip ECOLIGHT2 EC79630 single-sided with cable

The ECOLIGHT2 Connector EC79630 single-sided with cable is designed to join RGB LED strip lighting to a power and control cable without soldering. It provides a compact, insulated electrical connection for standard 4-pin RGB LED tape, enabling quick repairs, straightforward extensions, or a neat transition from strip to controller wiring. The connector is intended for installations where a flexible cable lead is preferred over direct soldering or where a clean detachable connection is useful.

Advantages

This connector offers a tool-free attachment that reduces installation time and avoids heat-related damage to LED strip contacts. Its single-sided design with pre-attached cable keeps the wiring organized and insulated, ensuring consistent signal and power transfer for RGB channels. The product supports simple replacement or extension of existing runs and is suitable for on-site fixes without specialized equipment.

Suitable for

• Standard 4-pin RGB LED strips with solder pads aligned for single-sided connection
• Quick repairs and short extensions where a cable lead is needed
• Connecting LED strips to RGB controllers, power supplies, or junction points
• Installations requiring a compact, insulated connector rather than soldering

When it may not be suitable

The connector is not intended for waterproof or outdoor-exposed joints unless additional sealing is applied; it is primarily for indoor, dry-location use. It also may not be compatible with non-standard or slim-profile RGB tapes that have different pad spacing or non-4-pin configurations.

Key specifications

• Connection type: single-sided 4-conductor connector for RGB LED tape
• Cable: pre-attached multi-conductor cable suitable for power and RGB signal lines
• Contact method: clamp-style/press contact (no solder required)
• Insulation: molded housing providing electrical insulation for the connection
• Application environment: intended for indoor installations and dry locations

How to use

Prepare the LED strip by ensuring the cut end has exposed, clean solder pads and that the strip orientation matches the connector labeling. Open the connector housing, insert the strip into the slot so the pads align with the internal contacts, then close the housing until it locks. Route the attached cable to the controller or power source and connect the cable wires according to the RGB and common power polarity. Verify secure contact before applying power and test each color channel at low power initially.

What to consider before purchase

• Confirm the RGB strip has standard 4-pad single-sided pads with matching pitch
• Check that the pre-attached cable length and conductor gauge meet your installation needs
• Ensure the connector will be used in a dry, indoor environment or plan for sealing if used outdoors

Usage recommendations

For reliable connections, use with stripped LED tape ends that are free of adhesive residue and secure the connector in a location protected from mechanical strain. Test polarity and channels before final installation and avoid flexing the joint; if the installation will be exposed to moisture, add appropriate sealing or choose a dedicated waterproof connector.
