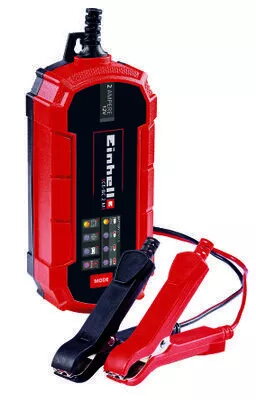

Battery Charger Einhell CE-BC 2 M 12 V

The Einhell CE-BC 2 M 12 V is an intelligent microprocessor-controlled battery charger designed for a variety of 12 V vehicle batteries. Optimized for modern high-performance batteries, it offers multi-stage charging, a trickle charge function and a winter mode for temperatures below 5 °C. The charger automatically detects battery status, adjusts charging current and provides protection against overcharging, short-circuits and reversed polarity. The compact, splash-resistant housing with a suspension eyelet and insulated clamps makes it suitable for workshop and home use.

Advantages

The CE-BC 2 M combines fast, low-stress charging with battery maintenance functions to prolong battery service life. A microprocessor continuously monitors and adjusts the multi-stage charging cycle, while the trickle charge function keeps batteries at optimal charge during long idle periods. Built-in protections and an LED indicator for voltage and charge status simplify operation and increase safety. The device is IP65-rated, providing dust protection and resistance to water jets.

Suitable for

• 12 V car batteries (lead-acid, low-maintenance and maintenance-free)
• AGM and gel batteries
• Motorcycles, scooters and seasonal vehicles with long storage periods

Key specifications

• Model: Einhell CE-BC 2 M
• Voltage: 12 V
• Input: 220–240 V ~ 50 Hz
• Charge settings: 25%, 50%, 75%, 100%, 12 V charging, Winter Mode
• Protection: overcharge, short-circuit, reversed polarity
• IP rating: IP65 (dustproof, protected against water jets)
• Dimensions (W×D×H): 70 × 148 × 250 mm
• MPN/EAN: 1002215 / 4006825640304

How to use

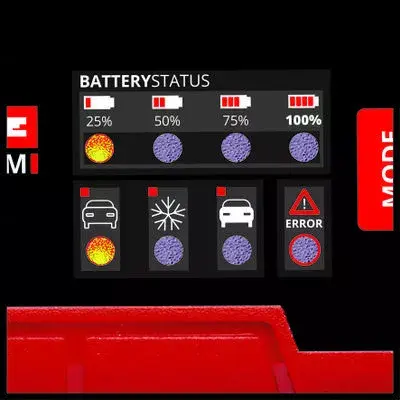

Connect the charger to the mains (220–240 V, 50 Hz) and attach the fully insulated clamps to the corresponding battery poles, observing correct polarity. Select the required charge setting or Winter Mode if ambient temperature is below 5 °C. The microprocessor will analyze the battery and run the appropriate multi-stage charging cycle automatically. Monitor the LED indicator to check voltage and charge status. Once the charger indicates a completed charge or maintenance mode, disconnect the mains and remove the clamps.

Usage recommendations

Use the CE-BC 2 M to maintain batteries during long storage periods rather than allowing deep discharge. For safe operation always ensure clamps are connected with correct polarity and avoid exposing the charger to heavy rain despite its IP65 protection. Choose Winter Mode when ambient temperature falls below 5 °C and select the appropriate charge level for the battery type.
