Mounting plate for ELEGOO OrangeStorm Giga quadruple printhead (model 50.204.0102)

The ELEGOO quadruple print head mounting plate is a specialized component designed for the OrangeStorm Giga 3D printer. This kit provides a robust mechanical interface that allows for the installation and precise alignment of a quadruple print head assembly. Engineered for stability, the plate ensures that the print head remains securely positioned during operation, which is essential for maintaining consistent print quality and structural integrity in complex 3D printing tasks.

Advantages

This mounting plate offers a reliable solution for upgrading or maintaining your 3D printer setup. Its solid construction is designed to minimize vibrations and ensure that the print head assembly is held firmly in place, which directly contributes to higher precision and accuracy during the printing process. By providing a stable platform, it helps prevent alignment issues that could otherwise affect the performance of the quadruple extruder system.

Suitable for

• Upgrading the OrangeStorm Giga 3D printer to a quadruple print head configuration
• Replacing a damaged or worn mounting plate on compatible 3D printers
• Projects requiring multi-material or multi-color printing capabilities

When it may not be suitable

This mounting plate is specifically engineered for the ELEGOO OrangeStorm Giga model and is not compatible with other 3D printer brands or series. It is not intended for use by individuals without experience in 3D printer maintenance or hardware assembly, as incorrect installation may lead to mechanical failure or damage to the print head.

Key specifications

• Compatibility: ELEGOO OrangeStorm Giga 3D printer

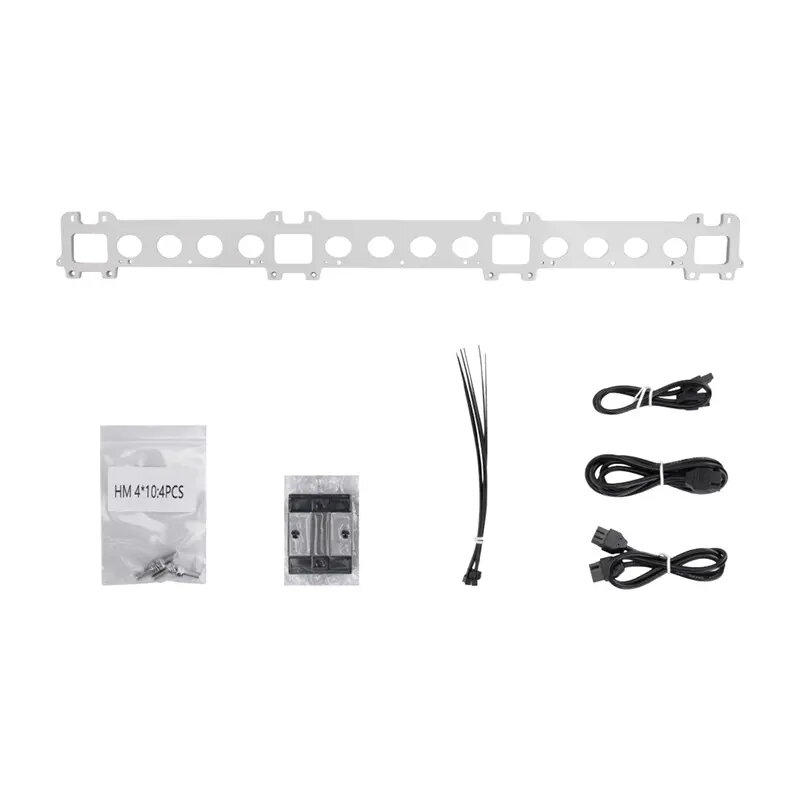

• Components: Mounting plate, mounting block, wires, clamping bands, and M4x10 screws
• Function: Secure mechanical interface for quadruple print head installation

How to use

To install the mounting plate, first ensure that the printer is powered off and disconnected from the power supply. Carefully remove the existing print head assembly if necessary. Align the mounting plate with the designated carriage on the OrangeStorm Giga and secure it using the provided screws and mounting block. Connect the included wires to the appropriate ports on the printer's control board, ensuring all connections are firm. Use the provided clamping bands to organize and secure the wiring to prevent interference with the printer's movement. Once installed, perform a calibration of the print head to ensure proper alignment before starting a print job.

What to consider before purchase

• Verify that your printer model is the ELEGOO OrangeStorm Giga
• Ensure you have the necessary tools for disassembly and reassembly
• Check that your current firmware supports the quadruple print head configuration

Usage recommendations: Always perform a test print at a low speed after installation to verify that the print head is moving correctly and that all connections are stable. Regularly inspect the mounting screws for tightness to maintain long-term printing accuracy.
