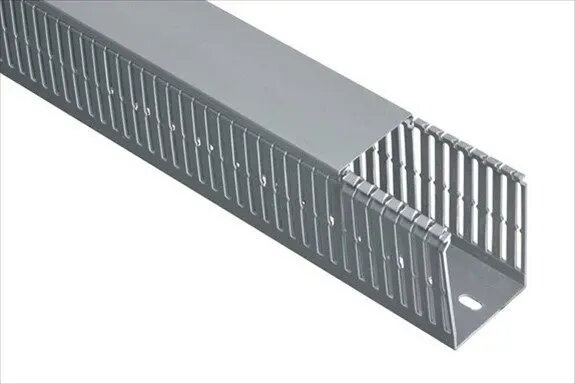

The Elettrocanali ECS6040 slotted wiring duct is a professional-grade solution engineered for organized cable management within electrical panels, control cabinets, and industrial distribution systems. Measuring 60mm in height and 40mm in width with a standard length of 2 meters, this grey PVC trunking provides a robust and reliable way to route, protect, and secure electrical wiring. Its slotted design allows for easy entry and exit of cables at any point along the duct, facilitating efficient installation and maintenance of complex electrical configurations.
Advantages
This wiring duct offers significant benefits for electrical installations by providing a structured environment that prevents cable clutter and improves airflow within enclosures. The high-quality PVC material ensures long-term durability and resistance to mechanical stress, while the precise slotting allows for quick and flexible wire routing. By using this duct, technicians can achieve a clean and professional layout that simplifies future troubleshooting and system upgrades, ultimately enhancing the safety and reliability of the electrical infrastructure.
Suitable for
- Electrical control panels and switchgear cabinets
- Industrial automation and machinery wiring
- Commercial electrical distribution systems
- Data and telecommunication rack cable management
When it may not be suitable
This product is not intended for outdoor use where it would be exposed to direct sunlight or harsh weather conditions, as standard PVC may degrade over time. It is also not suitable for applications requiring high-impact resistance or specialized fire-rated materials in environments with extreme temperature fluctuations.
Key specifications
- Dimensions: 60mm x 40mm
- Length: 2 meters
- Material: Durable PVC
- Color: Grey
- Design: Slotted for flexible cable routing
How to use
To install the Elettrocanali wiring duct, measure the required length and cut the trunking to size using a standard saw or dedicated duct cutter. Secure the duct to the mounting surface of the panel using screws or rivets through the pre-punched holes in the base. Once mounted, route your cables through the slots, ensuring that the wires are not overly compressed. Finally, snap the cover securely onto the duct to protect the cables and provide a finished appearance.
What to consider before purchase
- Ensure the 60 x 40mm dimensions provide sufficient internal volume for your cable bundle.
- Verify that the mounting surface is flat and capable of supporting the duct and cable weight.
- Check if the environment requires specific fire-retardant or halogen-free materials.
Usage recommendations
For optimal results, ensure that the duct is not filled beyond 70% of its capacity to allow for proper heat dissipation and ease of maintenance. Always use appropriate tools for cutting to ensure clean edges and prevent damage to the cables.
