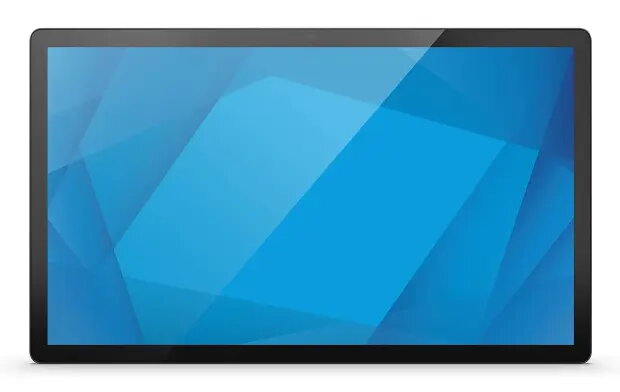

Elo Touch Solutions I-Series 4 Slate Interactive Flat Panel 15.6" Full HD Touchscreen Android 10 Grey Wi-Fi

Built-in microphone: Microphone that is found inside the product.

Yes

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.0

USB connector type: The type of USB connector/port that this product has.

USB Type-A, USB Type-C

Number of built-in speakers:

2

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

0.7 W

Power consumption (off):

0.4 W

Purpose: What the product is used for.

Commercial

Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor

Power consumption (sleep):

5 W

Product design: The creation of a plan or convention for the construction of an object or a system.

Interactive flat panel

Number of microphones:

2

Built-in processor: Whether or not a processor is built into the device.

Yes

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0/3.2 Gen 1 (3.1 Gen 1)

Internal storage capacity: The amount e.g of data which can be stored inside the device.

64 GB

Display technology: The technology used in the display e.g. plasma, LED.

LED

Google applications:

Google Play

Display depth:

13.1 mm

Display height:

221.2 mm

Display weight:

1500 g

Multi-touch:

Yes

Native aspect ratio: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:9

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD

USB ports quantity:

5

Panel type:

LCD

Display width:

370.2 mm

Active display area (W x H):

344 x 194

Screen shape:

Flat

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Computer system:

Yes

Computer system type:

System on Chip (SoC)

Real Time Clock (RTC):

Yes

USB Type-C DisplayPort Alternate Mode:

Yes

USB Power Delivery (USB PD):

Yes

USB Power Delivery revision:

3.0

Technical details

Warranty period:

2 year(s)

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

UL, MIC, VCCI, cUL, Industry Canada (IC), RCM, CB, CE, Federal Communications Commission (FCC)

Camera

Camera resolution (numeric):

5 MP

Built-in camera: The product has an integrated camera.

Yes

Packaging content

Power adapter included:

Yes

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

AC

Packaging data

Package weight: Weight of the packaged product.

3450 g

Package height: The distance from the top to the bottom of the packaging.

310 mm

Package depth: The distance from the front to the back of the packaging.

156 mm

Package width: The distance from one side of the packaging to the other.

443 mm

Ergonomics

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

VESA mounting:

Yes

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 50

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

5 - 95

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

10 W

AC input frequency:

50 - 60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Software

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Android 10

Design

Product colour: The colour e.g. red, blue, green, black, white.

Grey

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

0

DVI port: Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.

No

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Network

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Multimedia

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Memory

Internal memory: A computer's memory which is directly accessible to the CPU.

4 GB

Processor

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

2.2 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

8

Processor manufacturer: The manufacturer that produced the processor.

Qualcomm

Display

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

1000:1

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

170 °

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

170 °

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

350 cd/m²

Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

20 ms

Touchscreen technology:

Projected capacitive system

Display number of colours:

16.7 million colours

Native refresh rate:

60 Hz

Number of simultaneous touchpoints:

10

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1920 x 1080

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

15.6 "
