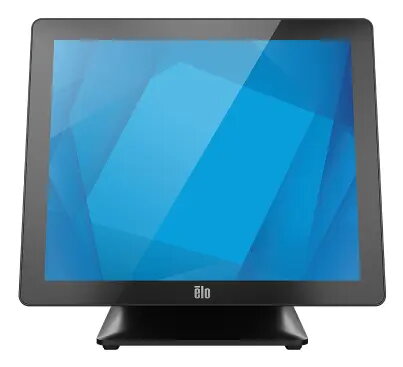

Elo Touch Solutions I-Series 3.0 All-in-One PC, 17-inch, Intel Core i5-1245UL, 8GB DDR5, 256GB SSD, Windows 11 IoT Enterprise

AC adapter input voltage:

100 - 240

AC adapter frequency:

50 - 60

AC adapter power:

180 W

Bluetooth version:

5.3

RMS rated power:

4 W

Power consumption (off):

0.5 W

Headphone outputs:

1

Power cord included:

Yes

LED backlight:

Yes

Number of SSDs installed:

1

Memory form factor:

DIMM/SO-DIMM

Touch technology:

Multi-touch

Built-in camera:

No

On-board graphics card model:

Intel Iris Xe Graphics

Discrete graphics card model:

Not available

Market positioning:

Business

On-board graphics card:

Yes

Memory layout (slots x size):

1 x 8

Native aspect ratio:

5:4

Weight (without stand):

9200 g

Product type:

All-in-One PC

Panel type:

TFT

Number of storage drives installed:

1

Screen shape:

Flat

Processor cache type:

Smart Cache

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

0

Top Wi-Fi standard:

Wi-Fi 6 (802.11ax)

Discrete graphics card:

No

On-board graphics card family:

Intel Iris Xe Graphics

Total SSDs capacity:

256 GB

Processor base power:

15 W

Maximum turbo power:

28 W

On-board GPU manufacturer:

Intel

Display

Viewing angle, horizontal:

170 °

Viewing angle, vertical:

160 °

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.

17 "

Display brightness:

250 cd/m²

Response time:

25 ms

Display resolution:

1280 x 1024

Touchscreen:

Yes

Processor

Processor model:

i5-1245UL

Processor manufacturer:

Intel

Processor cores:

10

Processor threads:

12

Processor boost frequency:

4.4 GHz

Processor cache:

12 MB

Processor frequency:

4.4 GHz

Efficient cores:

8

Performance cores:

2

Efficient-core Max Turbo Frequency:

2.5 GHz

Performance-core Max Turbo Frequency:

4.4 GHz

Memory

Internal memory type:

DDR5-SDRAM

Maximum internal memory:

64 GB

Memory clock speed:

4800 MHz

Memory slots type:

SO-DIMM

Internal memory:

8 GB

Storage

Total storage capacity:

256 GB

SSD interface:

M.2

SSD capacity:

256 GB

Number of storage drives supported:

1

Storage media:

SSD

SSD form factor:

M.2

NVMe:

Yes

Multimedia

Optical drive type:

No

Built-in speaker(s):

Yes

Number of speakers:

2

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1

HDMI ports quantity:

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

1

Power

AC adapter output voltage:

24

Power consumption (standby):

5 W

Weight & dimensions

Width (with stand):

393.4 mm

Height (with stand):

205.6 mm

Depth (with stand):

371.2 mm

Packaging data

Package weight:

12300 g

Package depth:

539 mm

Package height:

315 mm

Package width:

529 mm

Ergonomics

Mean time between failures (MTBF):

50000 h

Wall mountable:

Yes

Panel mounting interface:

100 x 100

VESA mounting:

Yes

Network

Wi-Fi standards:

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet LAN:

Yes

Bluetooth:

Yes

Wi-Fi:

Yes

Ethernet LAN data rates:

10, 100, 1000

Performance

Trusted Platform Module (TPM):

Yes

Trusted Platform Module (TPM) version:

2.0

Packaging content

Cables included:

AC

Quick start guide:

Yes

Software

Operating system installed:

Windows 11 IoT Enterprise

Operating system architecture:

64-bit

Other features

Memory slots:

2

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 35

Storage relative humidity (H-H):

5 - 95

Design

Product colour:

Black

Technical details

Compliance certificates:

CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI, CE, Industry Canada (IC)

Sustainability

Sustainability certificates:

ENERGY STAR
