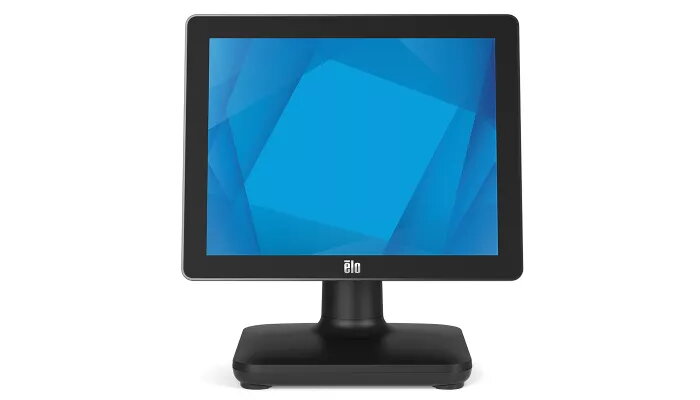

All-in-One Elo Touch Solutions EloPOS i5-8500T 17-inch Touchscreen 1280x1024

Effective viewing area:

337.9 x 270.3

Touchscreen technology:

Projected capacitive system

Display

Contrast ratio (typical):

1000:1

Viewing angle, horizontal:

170 °

Viewing angle, vertical:

160 °

Aspect ratio:

5:4

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.

17 "

Response time:

5 ms

Display resolution:

1280 x 1024

Touchscreen:

Yes

Display type:

LED

Display number of colours:

16.78 million colours

Processor

Processor family:

Intel Core i5

Processor model:

i5-8500T

Processor frequency:

2.1 GHz

Processor cores:

6

System bus rate:

8 GT/s

Processor threads:

6

Processor cache:

9 MB

Processor manufacturer:

Intel

Memory

Internal memory:

8 GB

Internal memory type:

DDR4-SDRAM

Maximum internal memory:

32 GB

Memory clock speed:

2400 MHz

Memory slots type:

SO-DIMM

Number of memory slots:

2

Storage

Total storage capacity:

128 GB

SSD capacity:

128 GB

SSD interface:

Serial ATA

Number of storage drives supported:

1

Storage media:

SSD

SSD form factor:

M.2

Graphics

Graphics card:

UHD Graphics 630

Network

Wi-Fi:

Yes

Wi-Fi standards:

802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a

Bluetooth:

Yes

Ethernet LAN:

Yes

Ethernet LAN data rates:

1000

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1

Serial ports quantity:

2

USB 2.0 ports quantity:

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

Software

Operating system installed:

Windows 10

Technical details

Graphics card manufacturer:

Intel

Design

Product colour:

Black

Chassis type:

All-in-One

Cable lock slot:

Yes

Wall mountable:

Yes

Panel mounting interface:

75 x 75

VESA mounting:

Yes

Operational conditions

Operating relative humidity (H-H):

0 - 35

Operating temperature (T-T):

-20 - 60

Storage relative humidity (H-H):

5 - 95

Weight & dimensions

Weight:

4.8 kg

Package weight:

6800 g

Height:

83.3 mm

Width:

393.5 mm

Depth:

325.9 mm

Package depth:

197 mm

Package height:

400 mm

Package width:

476 mm

Width (with stand):

393.5 mm

Height (with stand):

221.3 mm

Depth (with stand):

325.9 mm

Weight (with stand):

6700 g

Other features

Mean time between failures (MTBF):

50000 h

Power supply:

180 W

Relative humidity:

20 - 80

Certificates

Certification:

UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Audio

Built-in speaker(s):

Yes

Number of speakers:

2

Performance

Motherboard chipset:

Intel Q370

Trusted Platform Module (TPM):

Yes

Trusted Platform Module (TPM) version:

2.0

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.

76 W

AC input frequency:

50-60

AC input voltage:

100-240
