Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen

Name: Elotouch I-Series 5 Steel Digital E176840
Brand: Elotouch
SKU: 12425568
Price: 1657.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Elotouch I-Series 5 Steel Digital Signage Flat Panel 21.5-inch Full HD Touchscreen with Android and 8GB RAM

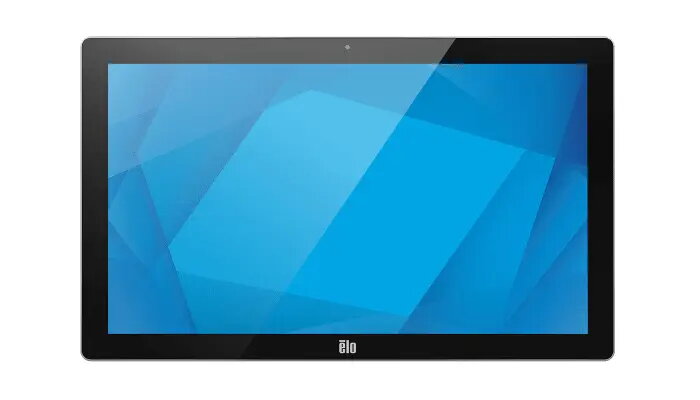

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 1

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 2

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 3

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 4

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 5

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 6

Elotouch I-Series 5 Steel 21.5-inch Digital Signage Touchscreen Photo 7

Short description

The Elotouch I-Series 5 Steel is a 21.5-inch digital signage flat panel featuring a Full HD LED display with integrated touchscreen technology. Powered by an Android operating system and equipped with 8GB of internal memory, this robust stainless steel unit is designed for professional interactive applications. It includes built-in Wi-Fi connectivity, making it an ideal solution for retail, hospitality, and corporate environments requiring reliable performance.

Warranty: 2 Years

SKU: 12425568

Manufacturer: Elotouch

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Elotouch I-Series 5 Steel is a professional-grade 21.5-inch digital signage flat panel designed for high-traffic interactive environments. Featuring a Full HD LED display with responsive touchscreen technology, this unit combines robust stainless steel construction with the flexibility of the Android operating system. With 8GB of RAM, it provides reliable performance for demanding commercial applications, ensuring smooth operation for interactive content and digital displays.

Advantages

The primary advantage of the I-Series 5 Steel is its industrial-grade durability, which allows it to withstand the rigors of public spaces while maintaining a sleek, professional appearance. The integration of the Android platform simplifies content management and application deployment, making it highly versatile for various business needs. Furthermore, the inclusion of Power-over-Ethernet (PoE) technology significantly reduces installation complexity by eliminating the need for separate power cabling, while the VESA-compatible design ensures easy mounting in either landscape or portrait orientations.

Suitable for

Retail store interactive kiosks
Hospitality check-in and information points
Corporate lobby digital signage
Public information displays
Interactive product catalogs

This device may not be suitable for outdoor environments exposed to direct weather conditions, as it is designed for indoor use. Additionally, it may not be the optimal choice for high-end graphic design or heavy-duty computing tasks that require desktop-class operating systems like Windows or macOS.

Key specifications

Display size: 21.5 inches (54.6 cm)
Resolution: 1920 x 1080 pixels (Full HD)
Display technology: LED
Operating system: Android
Memory: 8 GB RAM
Connectivity: Wi-Fi and Ethernet LAN
Mounting: VESA compatible
Audio: Built-in 1.5W speakers
Housing: Stainless steel

To use the Elotouch I-Series 5 Steel, mount the unit securely using a compatible VESA mount in your preferred orientation. Connect the device to your network via Ethernet or Wi-Fi. If using Power-over-Ethernet, ensure your network switch supports the required power standards. Once powered on, follow the initial Android setup prompts to configure your network settings and install your preferred digital signage or interactive applications.

What to consider before purchase

Verify that your mounting location supports the VESA standard.
Ensure your network infrastructure supports PoE if you intend to use that power method.
Confirm that your software applications are compatible with the Android operating system.
Assess the ambient lighting of the installation site to ensure the 250 cd/m² brightness is sufficient.

Usage recommendations

For optimal performance and longevity, ensure the unit is installed in a well-ventilated area and keep the touchscreen surface clean using non-abrasive, screen-safe cleaning solutions. Regularly update the Android firmware and your installed applications to maintain security and functionality.

Specifications

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.: Android
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: Yes
Built-in speaker(s): The device contains speaker(s) to produce sound.: Yes
Internal storage capacity: The amount e.g of data which can be stored inside the device.: 64 GB
Built-in processor: Whether or not a processor is built into the device.: Yes
Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.: Yes
Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.: 1920 x 1080
Display diagonal: Size of the display for this product, measured diagonally, usually in inches.: 21.5 "
Internal memory: A computer's memory which is directly accessible to the CPU.: 8 GB
Product colour: The colour e.g. red, blue, green, black, white.: Stainless steel

All features

Purpose: What the product is used for.: Commercial
Product design: The creation of a plan or convention for the construction of an object or a system.: Digital signage flat panel
Touchscreen technology:: Projected capacitive system
Display technology: The technology used in the display e.g. plasma, LED.: LED
Display depth:: 324 mm
Display height:: 386.8 mm
Display weight:: 5200 g
Number of simultaneous touchpoints:: 10
Display width:: 533 mm
Active display area (W x H):: 476 x 268
Orientation:: Horizontal/Vertical
USB port: The device features a socket into which a USB cable can be plugged.: Yes
Number of displays:: 1

Other features

Megapixel (approx.): The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.: 8 MP
USB connector type: The type of USB connector/port that this product has.: USB Type-A, USB Type-C
Power consumption (off):: 0.2 W
Power consumption (sleep):: 2 W
Operating system version: The version of the operating system used e.g. 4.1, 4.2 for Android.: Android 14
Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.: 50000 h

Packaging content

Cables included:: Power

Certificates

Certification:: UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)

Technical details

Native refresh rate:: 60 Hz

Software

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.: Android

Performance

Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Indoor

Ports & interfaces

USB ports quantity:: 2
DC-in jack: The socket/plug where the DC electricity supply connects to the device.: Yes
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1

Network

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).: 5.2
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: Yes
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes
Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.: Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.: 1000
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: Yes

Audio

Number of microphones:: 2
RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.: 1.5 W
Built-in speaker(s): The device contains speaker(s) to produce sound.: Yes
Number of built-in speakers:: 2

Weight & dimensions

Package weight: Weight of the packaged product.: 8200 g
Package height: The distance from the top to the bottom of the packaging.: 415 mm
Package depth: The distance from the front to the back of the packaging.: 173 mm
Package width: The distance from one side of the packaging to the other.: 613 mm

Storage

Internal storage capacity: The amount e.g of data which can be stored inside the device.: 64 GB

Operational conditions

Storage relative humidity (H-H):: 5 - 95
Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 50
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 45

Processor

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).: 8
Processor manufacturer: The manufacturer that produced the processor.: Qualcomm
Built-in processor: Whether or not a processor is built into the device.: Yes

Display

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.: 100:1
Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.: 178 °
Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.: 178 °
Multi-touch:: Yes
Screen shape:: Flat
Display number of colours:: 16.7 million colours
Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.): 14 ms
Panel type:: TFT-LCD
Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.: 250 cd/m²
Aspect ratio: The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.: 16:9
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).: Full HD
Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.: Yes
Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.: 1920 x 1080
Display diagonal: Size of the display for this product, measured diagonally, usually in inches.: 21.5 "

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 15.2 W
AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240

Design

VESA mounting:: Yes
Panel mounting interface: The product can be used wih VESA mounting interfaces.: 75 x 100
Product colour: The colour e.g. red, blue, green, black, white.: Stainless steel

Memory

Internal memory: A computer's memory which is directly accessible to the CPU.: 8 GB

Hide Show all

Description

Machine translation.

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Elotouch products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Elotouch service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: operating system installed, ethernet lan, wi-fi, built-in speaker(s), internal storage capacity, built-in processor, touchscreen, display resolution, display diagonal, internal memory, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
