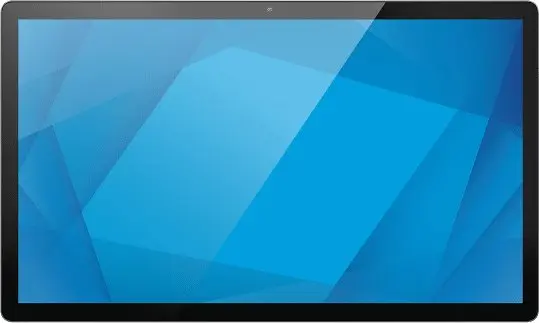

Elotouch I-Series 5 Slate Digital Signage Flat Panel 15.6 Inch Full HD Touchscreen Android Qualcomm Processor 8GB RAM 64GB Storage Grey

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

170 °

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

170 °

Megapixel (approx.): The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.

8 MP

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

8.5 W

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

20 ms

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

2 W

Purpose: What the product is used for.

Commercial

Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor

Product design: The creation of a plan or convention for the construction of an object or a system.

Digital signage flat panel

Touchscreen technology:

Projected capacitive system

AC input frequency:

50 - 60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Display depth:

15.1 mm

Display height:

221.3 mm

Display weight:

1560 g

Multi-touch:

Yes

DisplayPorts out:

1

Number of simultaneous touchpoints:

10

USB ports quantity:

4

Display width:

370.3 mm

Active display area (W x H):

344 x 194

Screen shape:

Flat

Orientation:

Horizontal/Vertical

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Number of displays:

1

Other features

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

1000:1

USB connector type: The type of USB connector/port that this product has.

USB Type-A, USB Type-C

Power consumption (off):

0.4 W

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

Display diagonal (metric): This is the size of the display screen, measured diagonally.

396.24 cm

Power consumption (sleep):

3 W

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1

Built-in processor: Whether or not a processor is built into the device.

Yes

VESA mounting:

Yes

Technical details

Native refresh rate:

60 Hz

Operational conditions

Storage relative humidity (H-H):

10 - 90

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 50

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Certificates

Certification:

UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)

Packaging content

Cables included:

Power

Weight & dimensions

Package weight: Weight of the packaged product.

3510 g

Package height: The distance from the top to the bottom of the packaging.

308 mm

Package depth: The distance from the front to the back of the packaging.

160 mm

Package width: The distance from one side of the packaging to the other.

445 mm

Software

Operating system version: The version of the operating system used e.g. 4.1, 4.2 for Android.

Android 14

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Android

Design

Product colour: The colour e.g. red, blue, green, black, white.

Grey

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Network

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a

Camera

Built-in camera: The product has an integrated camera.

Yes

Audio

Number of microphones:

2

Number of built-in speakers:

2

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Storage

Internal storage capacity: The amount e.g of data which can be stored inside the device.

64 GB

Memory

Internal memory: A computer's memory which is directly accessible to the CPU.

8 GB

Processor

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

8

Processor manufacturer: The manufacturer that produced the processor.

Qualcomm

Display

Aspect ratio: The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.

16:9

Display number of colours:

16.7 million colours

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

350 cd/m²

Display technology: The technology used in the display e.g. plasma, LED.

LED

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1920 x 1080

Panel type:

TFT-LCD

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

15.6 "
