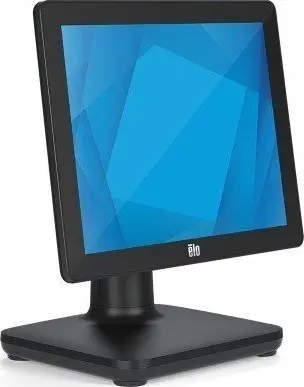

Elotouch E931896 All-in-One POS System 15-inch Touchscreen Intel Core i3-8100T 4GB RAM 128GB SSD Windows 10

Touchscreen technology:

Projected capacitive system

Powered USB:

Yes

Other features

Graphics card:

UHD Graphics 630

Chassis type: The type of rigid framework onto which is the hosuing for device components.

All-in-One

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

180 W

Line-out:

Yes

Relative humidity:

20 - 80

Storage media type: Type of storage medium, like flash, hard disk drive, etc.

SSD

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

Technical details

Graphics card manufacturer:

Intel

Certificates

Certification:

UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Logistics data

Harmonized System (HS) code:

84715000

Power

AC input frequency:

50-60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100-240

Performance

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel® H310

Design

VESA mounting:

Yes

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

Product colour: The colour e.g. red, blue, green, black, white.

Black

Ports & interfaces

Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.

2

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

Network

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Audio

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Number of speakers: The quantity of speakers included in/with the product.

2

Weight & dimensions

Package weight: Weight of the packaged product.

8200 g

Package height: The distance from the top to the bottom of the packaging.

509 mm

Package depth: The distance from the front to the back of the packaging.

372 mm

Package width: The distance from one side of the packaging to the other.

455 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

5.3 kg

Height: The measurement of the product from head to foot or from base to top.

390.4 mm

Depth: The distance from the front to the back of something.

221.3 mm

Width: The measurement or extent of something from side to side.

359.7 mm

Storage

SSD form factor: The size of the solid-state drive, given in inches

M.2

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

Serial ATA

SSD capacity:

128 GB

Number of storage drives supported: How many storage drives can be fit into the product at once.

1

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD

Total storage capacity: The total amount of data that can be stored on the device.

128 GB

Sustainability

Sustainability certificates:

ENERGY STAR

Operational conditions

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

0 - 35

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60

Memory

Memory clock speed: The frequency at which the memory (e.g. RAM) runs.

2400 MHz

Memory slots type: A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.

SO-DIMM

Maximum internal memory: The maximum internal memory which is available in the product.

32 GB

Number of memory slots:

2

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR4-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

4 GB

Processor

System bus rate: A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system.

8 GT/s

Processor cache:

6 MB

Processor threads:

4

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

3.1 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4

Processor model: The model number for the processor in a computer.

i3-8100T

Display

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

800:1

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

160 °

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

160 °

Display number of colours:

262144 colours

Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

23 ms

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

340 cd/m²

Aspect ratio: The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.

4:3

Display type: Type of display (screen) e.g. LCD.

LCD

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1024 x 768

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

15 "

Software

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 10
