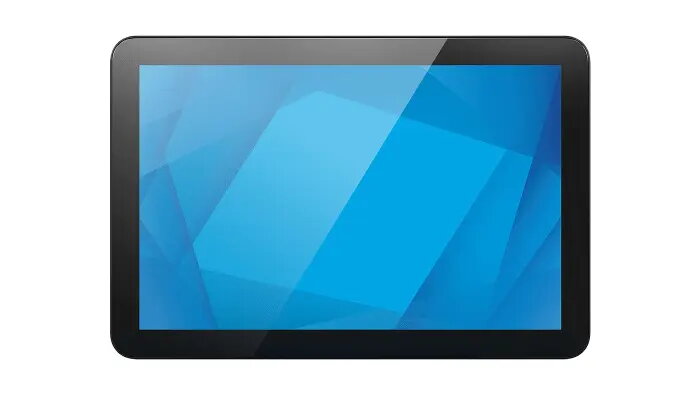

Digital signage flat panel Elotouch 1004L — 10.1" (25.6 cm) LED WXGA 1280x800, 360 cd/m², touchscreen, VESA 75x75, black

Horizontal scan range:

30 - 80

USB connector type: The type of USB connector/port that this product has.

Micro-USB, USB Type-C

Number of built-in speakers:

2

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

4 W

Power consumption (off):

0.25 W

Purpose: What the product is used for.

Universal

Display diagonal (metric): This is the size of the display screen, measured diagonally.

26 cm

On Screen Display (OSD) languages:

Spanish, English, German, Simplified Chinese, Traditional Chinese, Japanese, Italian, French

Power consumption (sleep):

1 W

Product design: The creation of a plan or convention for the construction of an object or a system.

Digital signage flat panel

Number of OSD languages:

8

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP54

Display technology: The technology used in the display e.g. plasma, LED.

LED

Display depth:

168 mm

Display height:

25 mm

Display weight:

900 g

Multi-touch:

Yes

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

WXGA

Panel type:

TFT-LCD

Display width:

249 mm

Active display area (W x H):

217 x 135.6

Screen shape:

Flat

Orientation:

Horizontal/Vertical

USB port: The device features a socket into which a USB cable can be plugged.

Yes

USB Power Delivery (USB PD):

Yes

Number of displays:

1

USB Power Delivery up to:

18 W

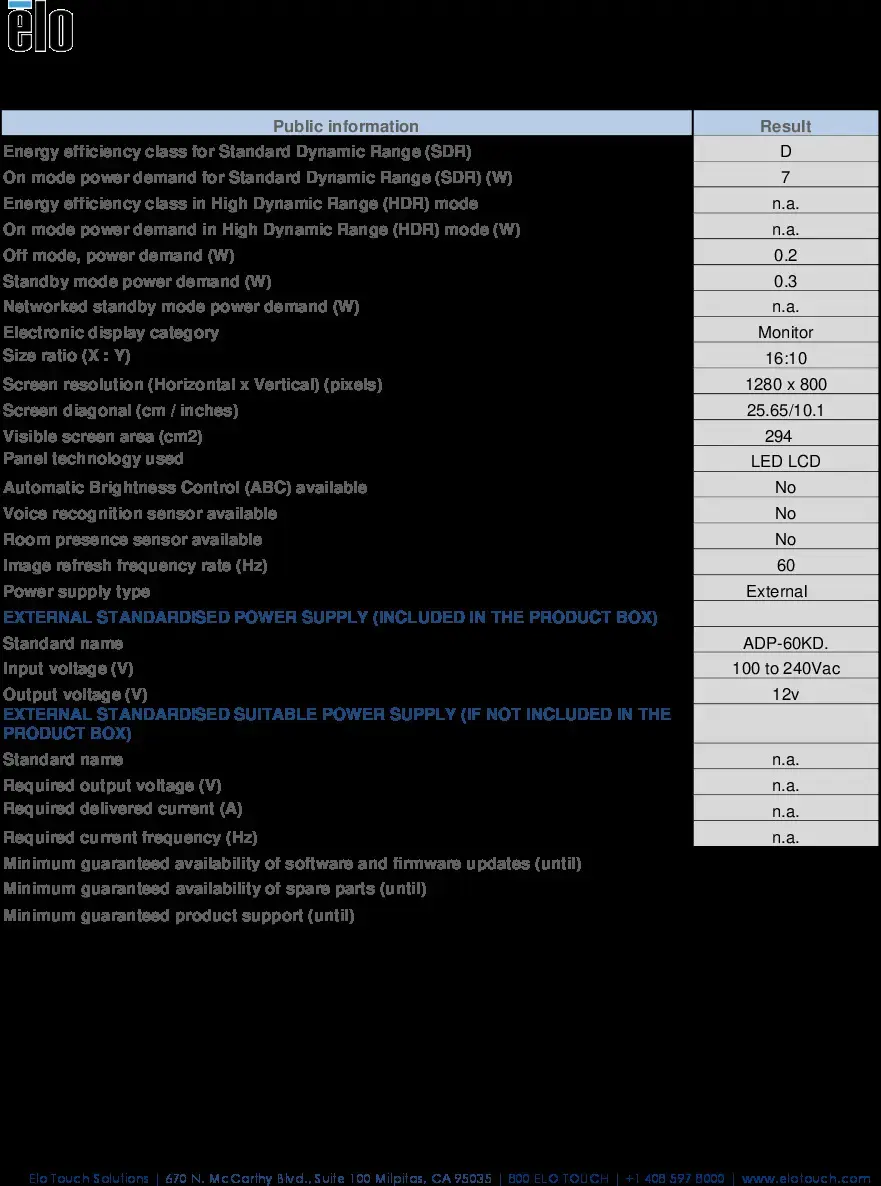

Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.

A to G

Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

D

Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.

7 kWh

Packaging content

Cables included:

USB Type-A to USB Type-C, Power, HDMI

Packaging data

Package weight: Weight of the packaged product.

2200 g

Package height: The distance from the top to the bottom of the packaging.

223 mm

Package depth: The distance from the front to the back of the packaging.

143 mm

Package width: The distance from one side of the packaging to the other.

308 mm

Ergonomics

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

On Screen Display (OSD):

Yes

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

VESA mounting:

Yes

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

10 - 95

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

6.5 W

Design

Product colour: The colour e.g. red, blue, green, black, white.

Black

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

DVI port: Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.

No

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

Network

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

No

Multimedia

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Display

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

800:1

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

170 °

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

170 °

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

360 cd/m²

Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

30 ms

Touchscreen technology:

Projected capacitive system

Display number of colours:

16.7 million colours

Native refresh rate:

60 Hz

Number of simultaneous touchpoints:

10

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1280 x 800

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

10.1 "
