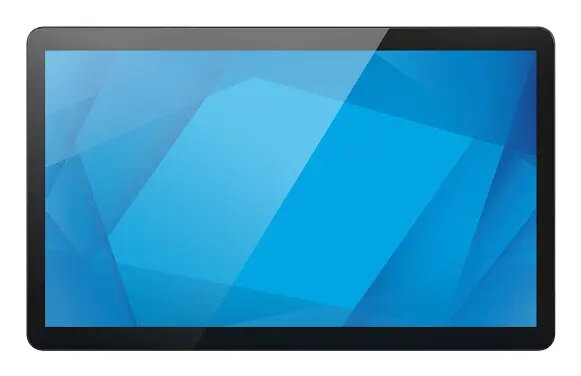

Digital signage flat panel Elotouch 1504L 15.6" LED 1920x1080 450 cd/m² Black touchscreen

Horizontal scan range:

30 - 82

USB connector type:

USB Type-A, Micro-USB, USB Type-C

Number of built-in speakers:

2

RMS rated power:

4 W

Power consumption (off):

0.25 W

Display diagonal (metric):

419.1 cm

On Screen Display (OSD) languages:

ENG, ESP, JPN, ITA, FRE, CHI (SIMPL), CHI (TR), DEU

Stand colour:

Black

Power consumption (sleep):

1 W

Product design:

Digital signage flat panel

Number of OSD languages:

8

Display technology:

LED

Anti-glare screen:

Yes

Stand included:

Yes

Display depth:

26.9 mm

Display height:

227.5 mm

Display weight:

1700 g

Multi-touch:

Yes

Number of simultaneous touchpoints:

10

USB ports quantity:

6

Panel type:

TFT-LCD

Display width:

371 mm

Active display area (W x H):

344.2 x 193.6

Screen shape:

Flat

Orientation:

Horizontal/Vertical

USB port:

Yes

Number of displays:

1

Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.

A to G

Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

E

Display

Contrast ratio (typical):

1000:1

Viewing angle, horizontal:

178 °

Viewing angle, vertical:

178 °

Aspect ratio:

16:9

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.

15.6 "

Display brightness:

450 cd/m²

Response time:

25 ms

Display resolution:

1920 x 1080

Touchscreen:

Yes

Touchscreen technology:

Projected capacitive system

Display number of colours:

16.7 million colours

Native refresh rate:

60 Hz

Network

Ethernet LAN:

No

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.

12.1 W

AC input frequency:

50 - 60

AC input voltage:

100 - 240

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 40

Storage relative humidity (H-H):

10 - 95

Packaging data

Package weight:

5600 g

Package depth:

220 mm

Package height:

342 mm

Package width:

451 mm

Quantity per pack:

1 pc(s)

Ports & interfaces

DC-in jack:

Yes

HDMI ports quantity:

1

DisplayPorts quantity:

1

Ergonomics

Mean time between failures (MTBF):

50000 h

On Screen Display (OSD):

Yes

Panel mounting interface:

100 x 100, 75 x 75

VESA mounting:

Yes

Weight & dimensions

Weight (with stand):

2900 g

Multimedia

Built-in speaker(s):

Yes

Packaging content

Cables included:

HDMI, Power, USB Type-A to USB Type-C

Design

Product colour:

Black
