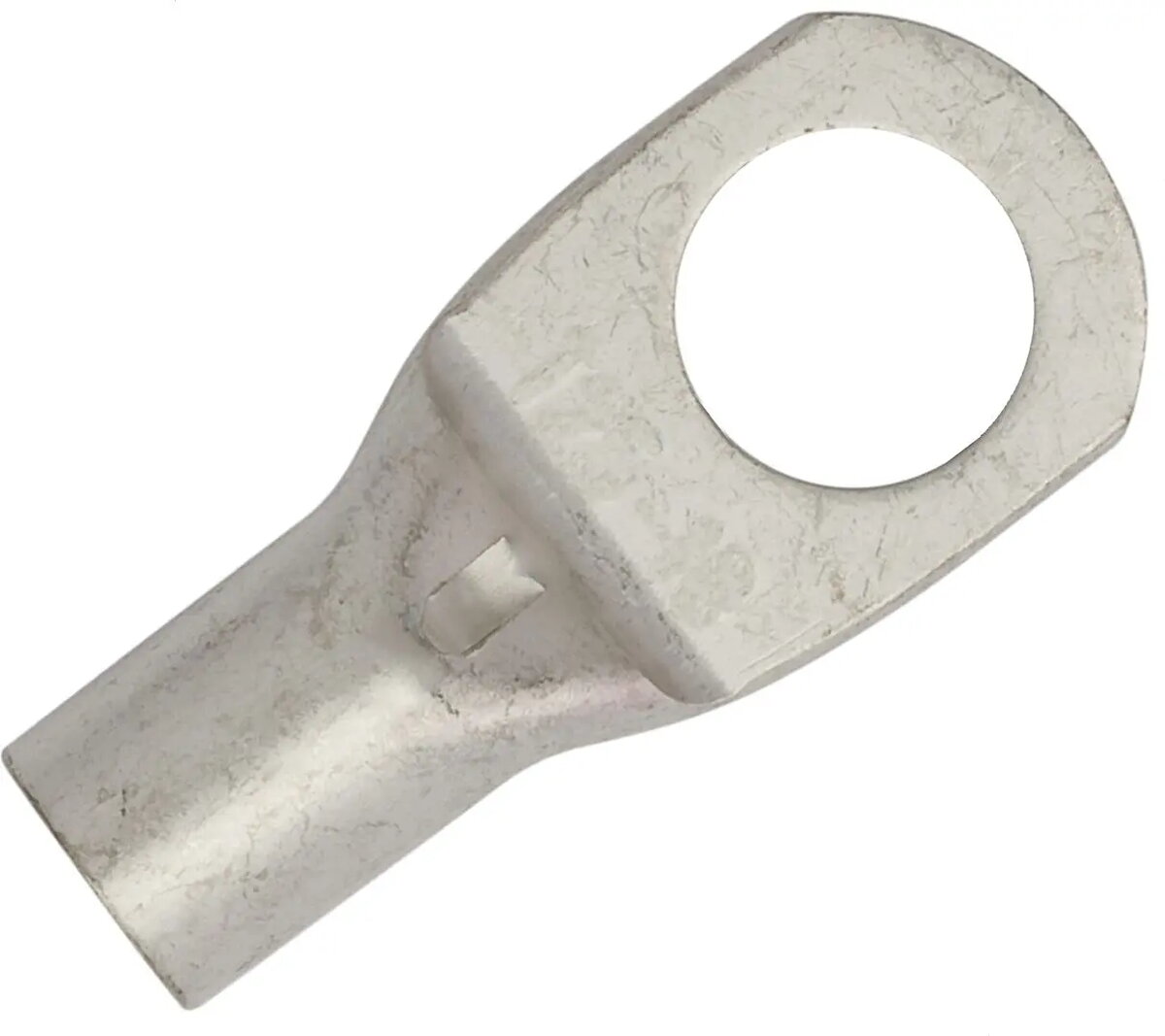

EM Group Tubular Ring Terminal 95mm² M10 Tinned Copper

The EM Group Tubular Ring Terminal 95mm² M10 is a professional-grade electrical connector engineered for high-performance power distribution and industrial cabling. Constructed from high-purity copper and finished with a protective tin coating, this terminal provides a robust and reliable interface for heavy-duty electrical systems. Its tubular design allows for efficient crimping, ensuring a permanent mechanical and electrical bond with 95mm² conductors, while the M10 mounting hole facilitates secure attachment to busbars, studs, or terminal blocks.

Advantages

The primary benefit of this tubular ring terminal is its superior electrical conductivity, which minimizes resistance and heat generation during high-current operations. The tinned copper construction offers exceptional resistance to oxidation and environmental corrosion, making it suitable for demanding industrial environments where long-term durability is critical. The precise manufacturing ensures a consistent fit, simplifying the installation process and reducing the risk of loose connections that could lead to system failures.

Suitable for

• Industrial power distribution panels
• Heavy-duty electrical machinery and equipment
• Battery bank interconnections
• Grounding and earthing systems
• Renewable energy installations

When it may not be suitable

This terminal is specifically designed for 95mm² cables and is not compatible with smaller or larger wire gauges. It is intended for use with M10 mounting hardware and will not fit studs of different diameters without modification, which is not recommended for safety reasons.

Key specifications

• Material: Tinned copper
• Cable cross-section: 95mm²
• Mounting hole diameter: 10mm (M10)
• Design: Tubular ring terminal

How to use

To install the terminal, first strip the insulation from the end of the 95mm² cable to the appropriate length required by the terminal barrel. Insert the conductor fully into the tubular section of the terminal. Use a professional-grade hydraulic or manual crimping tool specifically calibrated for 95mm² tubular terminals to compress the barrel onto the cable. Ensure the crimp is uniform and secure. Once crimped, place the ring end over the M10 stud and tighten the nut to the manufacturer's specified torque to ensure a solid electrical contact.

What to consider before purchase

• Verify that your cable cross-section is exactly 95mm².
• Ensure your mounting stud is M10 size.
• Confirm you have access to a compatible heavy-duty crimping tool.
• Check the environmental conditions to ensure tinned copper is appropriate for your application.

Usage recommendations

Always use a calibrated crimping tool to ensure the integrity of the connection. Avoid using pliers or improper tools, as these can lead to high-resistance joints and potential overheating. Ensure the contact surfaces are clean and free of debris before tightening the mounting nut.
