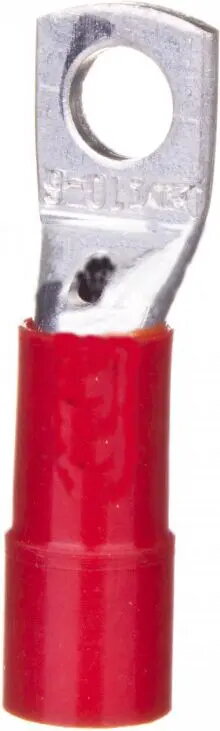

EM Group Insulated Ring Terminal 10mm² M8 Tinned Copper

The EM Group insulated ring terminal is a high-quality electrical connector engineered for 10mm² conductors. Designed for secure and stable power distribution, this terminal features an M8 stud size, making it compatible with a wide range of standard electrical hardware. The construction utilizes premium tinned copper, which provides superior electrical conductivity while offering robust protection against oxidation and environmental corrosion, ensuring long-term reliability in demanding electrical systems.

Advantages

This terminal offers exceptional performance due to its tinned copper base, which maintains low contact resistance over extended periods of use. The integrated insulation provides an essential layer of safety, reducing the risk of accidental short circuits during installation or maintenance. Its design facilitates a firm, vibration-resistant connection, which is critical for maintaining electrical integrity in both stationary and mobile equipment. The precision-engineered ring shape ensures optimal surface contact with the mounting stud, promoting efficient current flow and minimizing heat generation at the connection point.

Suitable for

• Industrial power distribution panels
• Automotive electrical wiring systems
• Marine electrical installations
• Heavy machinery power connections
• Battery terminal attachments

When it may not be suitable

This terminal is not intended for use with conductors outside the 10mm² specification, as improper sizing can lead to loose connections or overheating. It is also not suitable for high-temperature environments that exceed the thermal rating of the insulation material.

Key specifications

• Conductor cross-section: 10mm²
• Stud size: M8
• Material: Tinned copper
• Insulation type: Pre-insulated

How to use

To install the terminal, first strip the insulation from the end of the 10mm² conductor to the appropriate length. Insert the bare wire into the barrel of the terminal. Use a professional-grade crimping tool designed for insulated terminals to compress the barrel firmly onto the wire, ensuring a gas-tight connection. Once crimped, place the ring over the M8 stud and secure it tightly with a matching nut and washer to ensure full contact.

What to consider before purchase

• Verify that the conductor size is exactly 10mm²
• Ensure the mounting stud diameter matches the M8 specification
• Check that your crimping tool is compatible with insulated terminals of this size
• Confirm the environmental conditions do not exceed the insulation's temperature limits

Usage recommendations

Always ensure the wire is fully inserted into the terminal barrel before crimping to prevent loose strands. Regularly inspect connections for signs of wear or corrosion in high-vibration environments.
