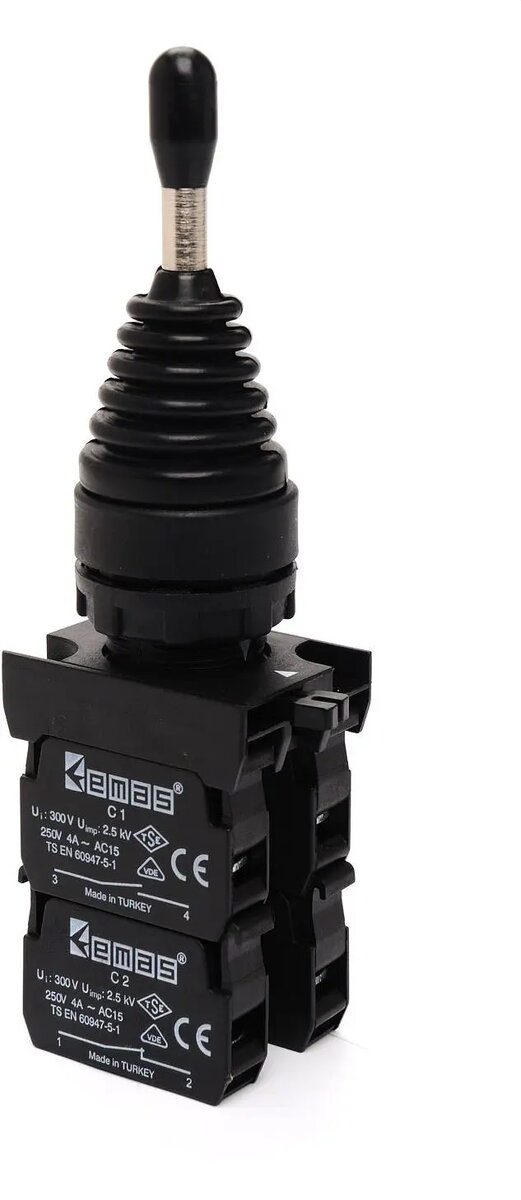

Emas T0-CP707DJ40 4-Way Joystick Switch 22mm Non-Spring Return 4NO

The Emas T0-CP707DJ40 is a high-quality 4-way joystick switch engineered for seamless integration into industrial control systems. Designed for standard 22mm mounting holes, this device provides reliable manual control for various machinery and automation applications. The switch features a non-spring return mechanism, which allows the joystick to remain in its selected position until manually moved, offering stable and consistent operation for complex control tasks.

Advantages

This joystick switch stands out due to its robust construction, which is specifically designed to withstand the rigors of demanding industrial environments. The 4-way functionality provides versatile directional control, while the non-spring return feature ensures that the operator can maintain a specific setting without constant physical pressure. With its 4 normally open contacts, it offers excellent electrical connectivity for multi-circuit control requirements, ensuring precision and durability in daily operations.

Suitable for

• Industrial automation systems
• Control panels for heavy machinery
• Robotic control interfaces
• Material handling equipment
• Custom electrical control consoles

This switch may not be suitable for applications requiring an automatic return to the center position, as the non-spring return mechanism keeps the switch engaged until manually reset. It is also not intended for high-voltage power switching without appropriate contactors or relays.

Key specifications

• Mounting diameter: 22mm
• Operation type: 4-way, non-spring return
• Contact configuration: 4 normally open (NO) contacts
• Application: Industrial control and automation

To use the Emas joystick switch, mount it securely into a 22mm panel hole using the provided hardware. Ensure that the electrical connections are wired to the 4 normally open contacts according to your system's wiring diagram. Once installed, the joystick can be moved in four distinct directions to trigger the corresponding circuits, remaining in the chosen position until the operator manually returns it to the neutral state.

What to consider before purchase

• Verify that your control panel has a 22mm mounting hole available.
• Ensure that your application requires a non-spring return function rather than a momentary action.
• Check that your control system is compatible with 4 normally open contact configurations.

For optimal longevity and performance, ensure the switch is protected from excessive dust, moisture, and extreme vibration. Regularly inspect the electrical connections to maintain consistent contact reliability.
