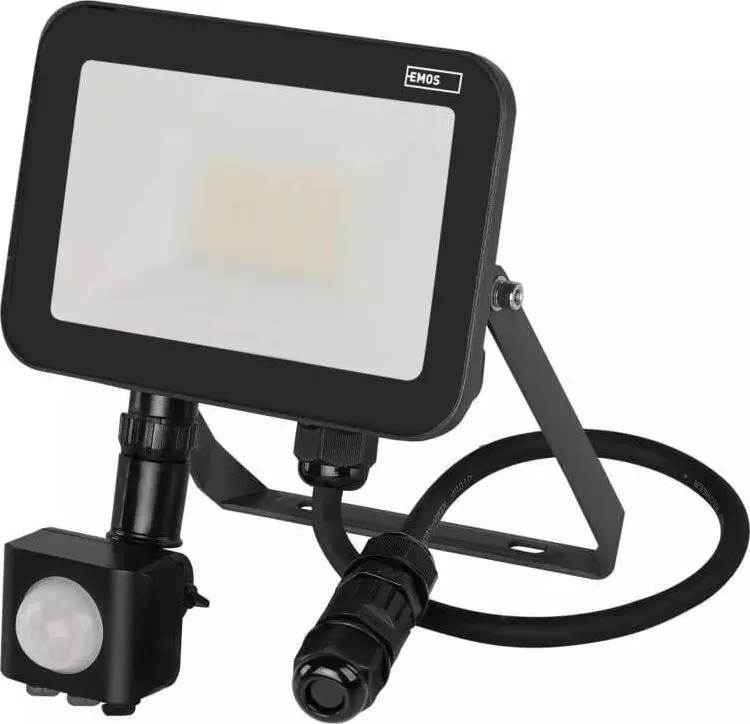

LED floodlight EMOS INOVO 20W 2200lm with PIR sensor IP65

LED floodlight EMOS INOVO 20W 2200lm with PIR sensor IP65 is a compact outdoor luminaire that combines a 20 W LED array with an integrated passive infrared motion sensor. Delivering approximately 2200 lumens, the floodlight provides bright, energy-efficient illumination for entrances, driveways, façades and other exterior areas. The housing is rated IP65, offering protection against dust ingress and low-pressure water jets, making the luminaire suitable for exposed outdoor installation.

Advantages

The integrated PIR sensor enables automatic activation when movement is detected, reducing manual switching and improving convenience. With a power draw of 20 W and an output of about 2200 lm, the unit delivers high luminous efficacy for its size, lowering energy consumption compared to traditional halogen floodlights. The IP65-rated enclosure ensures reliable performance in outdoor environments, and the compact form factor simplifies mounting in limited spaces.

Suitable for

• Illuminating home entrances and porches
• Lighting driveways and garage areas
• Security lighting around perimeters and courtyards
• Exterior commercial and service areas

Key specifications

• Light source: integrated LED module
• Rated power: 20 W
• Luminous flux: approximately 2200 lm
• Detector: built-in PIR motion sensor for presence detection
• Ingress protection: IP65 for dust and water jets
• Color temperature: neutral to cool white (manufacturer specification)
• Mounting: wall or surface mounting with adjustable bracket

How to use

Mount the floodlight on a stable surface at the recommended height to ensure the PIR sensor covers the intended detection zone. Connect the luminaire to the mains supply according to local electrical codes and the wiring diagram provided by the manufacturer. Adjust the angle of the lamp head and the position of the sensor for optimal coverage. The PIR sensor will switch the light on automatically when it detects motion; some models may include settings for detection range and time after activation—consult the product leaflet for available adjustments.

Usage recommendations

Install the unit at a height and orientation that avoids direct exposure of the sensor to moving vegetation, traffic, or reflective glass surfaces to reduce false triggers. For long-term performance, periodically inspect the seal and mounting hardware and clean the front lens to maintain light output. For installation in exposed or coastal locations, consider additional corrosion-resistant mounting hardware if required by local conditions.
