Fiber Patch Cord Equip MTP/SC Trunk OM4 7m
Short description
Cheapest delivery:
Unisend LV
Esto — pay in 6 equal parts
Product information
Description

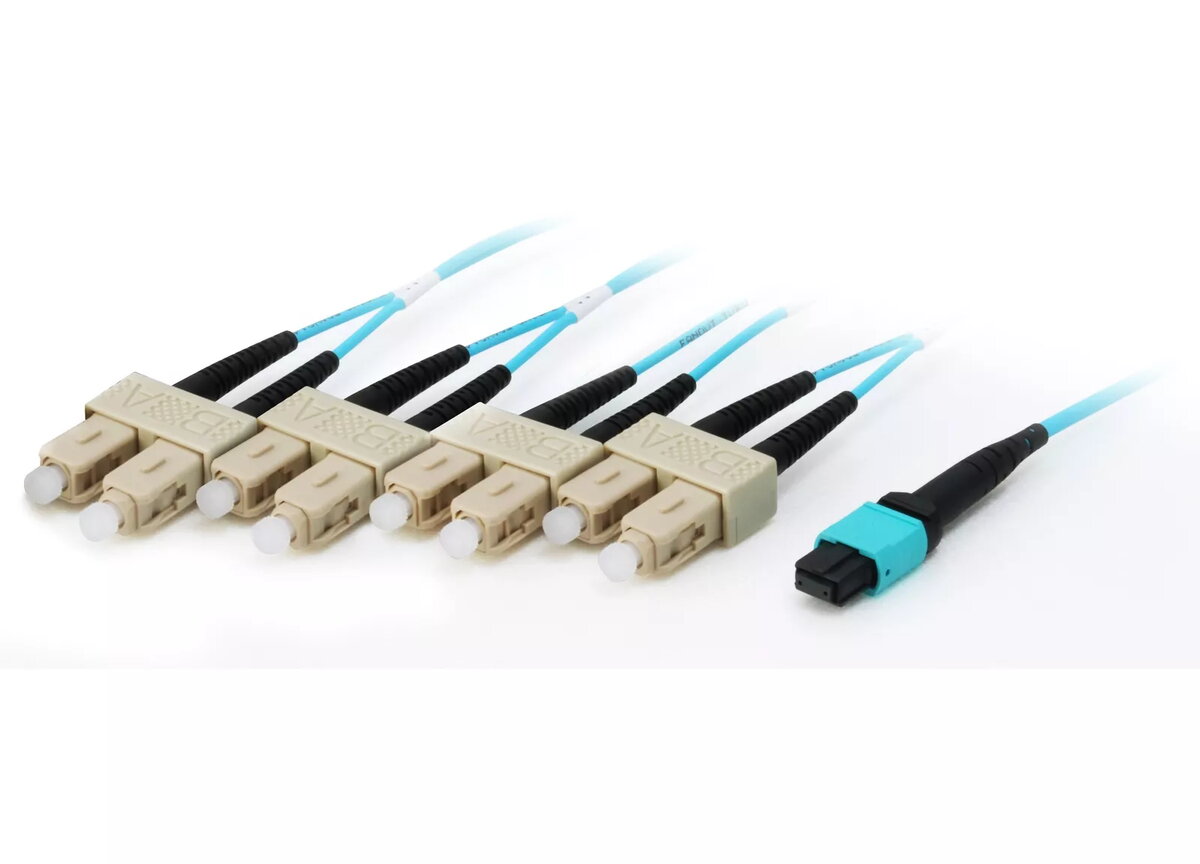

The equip® MTP/SC Trunk Fiber Patch Cord OM4, 7m is a pre-terminated multimode fiber trunk cable with a 50 µm core diameter designed for high-bandwidth, high-density cabling in data centers and enterprise networks. The assembly combines an MTP connector on one end with four SC connectors on the other, providing a compact solution for parallel optical links and structured cabling systems.
Advantages
This MTP/SC trunk cable supports OM4 multimode performance for high-speed data transmission and increased reach compared with lower-grade multimode fibers. Pre-terminated connectors reduce installation time and the risk of field termination errors. The 7 m length offers flexibility for rack-to-rack or equipment-to-distribution connections while the MTP to 4×SC breakout enables compatibility with common SC-based equipment and patch panels.
Suitable for
- Data center rack-to-rack and pod interconnects
- High-density patch panels and MPO/MTP trunking
- Enterprise backbone and server room cabling
- Parallel optical transceiver connections (e.g., 40G/100G applications using MPO/MTP)
Key specifications
- Brand: EQUIP
- Model/MPN: 25557407
- EAN: 4015867192696
- Type: MTP (male) to 4×SC multimode trunk patch cord
- Fiber grade: OM4 multimode
- Core diameter: 50 µm
- Length: 7 m
How to use
Route the pre-terminated trunk cable between the source MTP/MPO panel or transceiver and the destination SC patch panel or equipment. Ensure connectors and ports are clean and follow standard fiber handling procedures to avoid bend radius violations and contamination. Insert the MTP connector into the matching MTP/MPO adapter or transceiver and plug each SC connector into the corresponding SC adapter or device port. Verify link performance with appropriate test equipment after installation.
Usage recommendations
Use the equip MTP/SC Trunk OM4 in structured cabling where OM4 multimode performance is required and where pre-terminated trunking reduces installation time. Clean connectors before mating, maintain specified minimum bend radius for multimode fiber, and confirm connectivity and insertion loss with a qualified tester.
- Weight:
- 0.124 kg
- Storage temperature (T-T):
- -40 - 80
- Package weight:
- 0 g
- Operating temperature (T-T):
- -20 - 70
- Cable length:
- 7 m
- Product colour:
- Cyan
- Package height:
- 200 mm
- Package width:
- 330 mm
- Connector 1:
- MTP
- Connector 2:
- 4x SC
- Insertion loss:
- 0.5 dB
- Fiber mode structure:
- Multi-mode
- Core diameter:
- 50 µm
- Cladding diameter:
- 125 µm
- Jacket material:
- Low smoke fire retardant zero halogen (LSFRZH)
- Connector 1 gender:
- Female
- Connector 2 gender:
- Male
- Harmonized System (HS) code:
- 85447000
- Fibre optic type:
- OM4
- Compliance certificates:
- RoHS, REACH
Instructions
Product comparison
This product page presents the Fiber Patch Cord Equip MTP/SC Trunk OM4 7m, compared alongside alternative options from the same manufacturer: Fiber Patch Cord Equip MTP/SC Trunk OM4 10m, Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 7m, MTP/SC Trunk Fiber Patch Cord Equip 25557307 OM4 3m, Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 5m, and Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 3m. All compared options belong to the same category of OM4 high-speed fiber optic patch cords with a 50 µm core diameter. The primary practical differences lie in the cable length and the connector types.
⚙️ The specifications comparison table below details the core physical attributes such as connector types, cable lengths, and fiber types to help you evaluate hardware compatibility.
| Parameter | Fiber Patch Cord Equip MTP/SC Trunk OM4 7m | Fiber Patch Cord Equip MTP/SC Trunk OM4 10m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 7m | MTP/SC Trunk Fiber Patch Cord Equip 25557307 OM4 3m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 5m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 3m | Practical Significance |
|---|---|---|---|---|---|---|---|
| Fiber type | OM4 (50 µm) | OM4 (50 µm) | OM4 (50 µm) | OM4 (50 µm) | OM4 (50 µm) | OM4 (50 µm) | Ensures identical high-speed data transmission capabilities across all alternatives. |
| Connectors | MTP and 4x SC | MTP and 4x SC | MTP and 4x LC | MTP and 4x SC | MTP and 4x LC | MTP and 4x LC | Determines direct physical compatibility with specific network equipment interfaces (SC or LC). |
| Cable length | 7 m | 10 m | 7 m | 3 m | 5 m | 3 m | Allows precise routing matching for data center racks without excessive slack. |
◎ The suitability table below evaluates different use cases and buyer profiles to help you choose the right product for your specific networking setup.
| Use case | Recommended product | Why |
|---|---|---|
| Medium-distance links with SC ports | Fiber Patch Cord Equip MTP/SC Trunk OM4 7m | Provides a balanced 7-meter length suited for standard rack-to-rack routing with SC connectors. |
| Extended-distance links with SC ports | Fiber Patch Cord Equip MTP/SC Trunk OM4 10m | Offers a longer 10-meter reach for more complex routing paths requiring extra slack. |
| Medium-distance links with LC ports | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 7m | Maintains the same 7-meter length but utilizes LC connectors for hardware requiring alternative interfaces. |
Fiber Patch Cord Equip MTP/SC Trunk OM4 7m is ideal for enterprise networks and data center runs requiring a 7-meter length combined with SC connectivity. Choose this model if your equipment matches the SC interface specification and medium reach, while alternative lengths or LC-equipped variants should be selected based on your specific port layout and distance requirements.
