Fiber Patch Cord Equip MTP/SC Trunk OM4 10m
Short description
Cheapest delivery:
Unisend LV
Esto — pay in 6 equal parts
Product information
Description

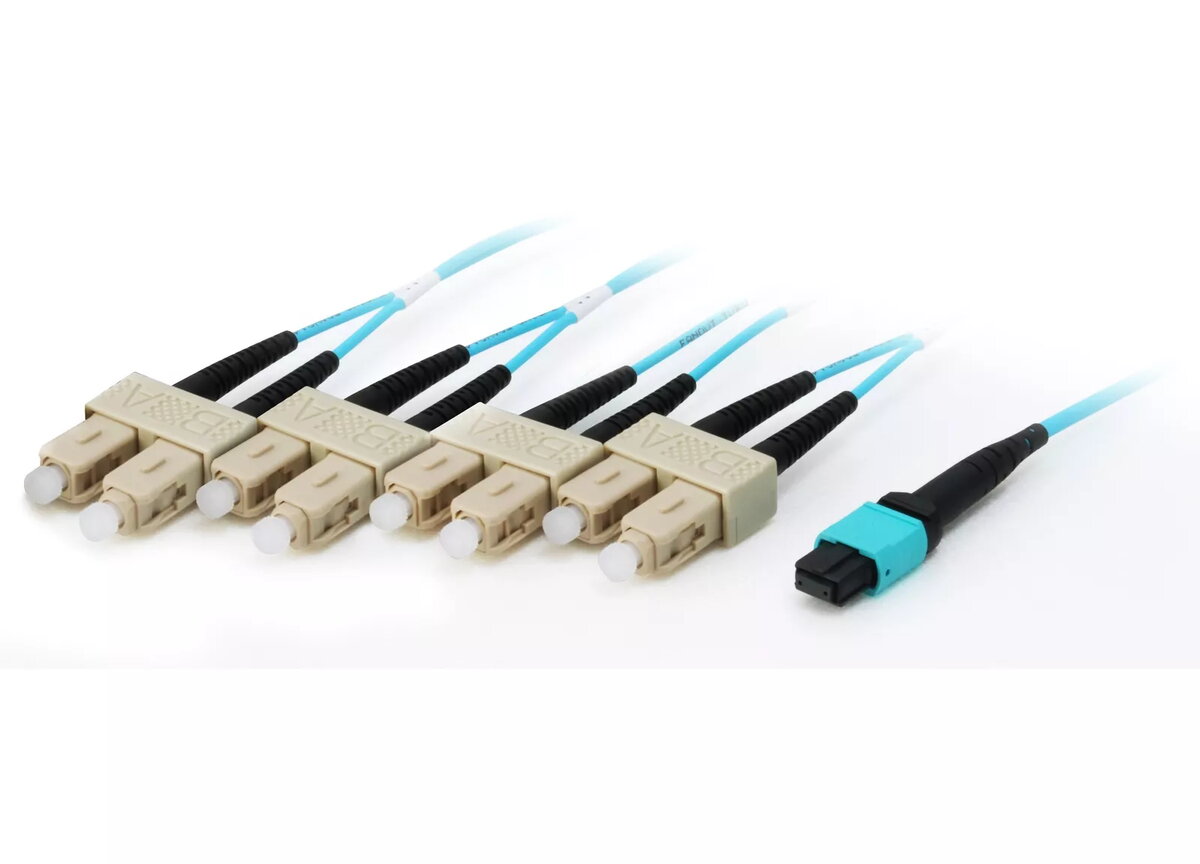

The Equip MTP/SC Trunk Fiber Patch Cord OM4 10m is a pre-terminated multimode fiber assembly designed for high-density, high-bandwidth network environments. With a 50 µm core diameter and OM4 grading, this 10 metre trunk cable combines an MTP connector on one end with four SC connectors on the other to support parallel optical links and streamline connection between MTP-based trunk infrastructure and SC-based equipment.
Advantages
This OM4 trunk cable delivers improved modal bandwidth for higher data rates over short- to mid-range distances and supports reliable multi-fiber connections via the MTP interface. The pre-terminated design reduces installation time and the risk of field termination errors. Durable connector housings and standardized fiber parameters ensure consistent performance in data center and enterprise cabling racks.
Suitable for
- Data center backbone and patching between MTP trunks and SC ports
- High-density server and switch interconnects
- Multimode parallel optical links (e.g., 40G/100G deployments)
Key specifications
- Fiber type: OM4 multimode
- Core diameter: 50 µm
- Length: 10 m
- Connector A: MTP (multi-fiber)
- Connector B: 4× SC (single-fiber adapters)
- Brand: EQUIP
- MPN: 25557607
- EAN: 4015867192719
How to use
Route the trunk cable along existing cable management, avoiding tight bends and tension. Insert the MTP connector into the corresponding MTP cassette or adapter and plug the SC connectors into the destination SC ports or patch panel. Verify polarity and fiber mapping before powering equipment, then test links using appropriate optical test equipment to confirm attenuation and continuity.
Usage recommendations
Store and handle the OM4 fiber trunk in a clean environment, protect connector endfaces with dust caps until installation, and follow manufacturer guidelines for bend radius and connector cleaning to maintain optimal signal performance.
- Weight:
- 0.134 kg
- Storage temperature (T-T):
- -40 - 80
- Package weight:
- 0 g
- Operating temperature (T-T):
- -20 - 70
- Cable length:
- 10 m
- Product colour:
- Cyan
- Package height:
- 200 mm
- Package width:
- 330 mm
- Connector 1:
- MTP
- Connector 2:
- 4x SC
- Insertion loss:
- 0.5 dB
- Fiber mode structure:
- Multi-mode
- Core diameter:
- 50 µm
- Cladding diameter:
- 125 µm
- Jacket material:
- Low smoke fire retardant zero halogen (LSFRZH)
- Connector 1 gender:
- Female
- Connector 2 gender:
- Male
- Harmonized System (HS) code:
- 85447000
- Fibre optic type:
- OM4
- Compliance certificates:
- RoHS, REACH
Instructions
Product comparison
This product page focuses on the Fiber Patch Cord Equip MTP/SC Trunk OM4 10m fiber optic cable with a length of 10 meters. It is compared with similar solutions from the EQUIP brand, including cables of the same series with different lengths (7m and 15m), as well as versions equipped with MTP/LC connectors (5m, 7m, and 15m lengths). All compared products use OM4 standard multi-mode fiber with a 50 µm core diameter, support high-speed data transmission, and are designed for data centers and enterprise networks. The main differences between them lie in the physical cable length and the types of end connectors (MTP/SC or MTP/LC).
⚙️ Below is a comparison of the main characteristics, including fiber type, core diameter, cable length, connector configuration, and their practical significance for equipment cabling.
| Parameter | Fiber Patch Cord Equip MTP/SC Trunk OM4 10m | Fiber Patch Cord Equip MTP/SC Trunk OM4 15m | Fiber Patch Cord Equip MTP/SC Trunk OM4 7m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 5m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 15m | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 7m | Practical significance |
|---|---|---|---|---|---|---|---|
| Fiber type | OM4 | OM4 | OM4 | OM4 | OM4 | OM4 | All models support high bandwidth capabilities for modern 40G and 100G networks. |
| Core diameter | 50 µm | 50 µm | 50 µm | 50 µm | 50 µm | 50 µm | Provides identical optical characteristics and signal transmission compatibility. |
| Cable length | 10 m | 15 m | 7 m | 5 m | 15 m | 7 m | Length determines the reach radius when routing cables between racks and switches. |
| Connector types | MTP and 4x SC | MTP and 4x SC | MTP and 4x SC | MTP and 4x LC | MTP and 4x LC | MTP and 4x LC | SC interfaces suit specific networking hardware, whereas LC is more common in high-density transceivers. |
◎ The table below evaluates the suitability of each option based on specific use case scenarios, distances between connection points, and network hardware port types.
| Use case | Recommended product | Why |
|---|---|---|
| Medium-distance connection with SC ports | Fiber Patch Cord Equip MTP/SC Trunk OM4 10m | The optimal 10-meter length allows neat connection of spaced racks without excess cable slack when using equipment with SC connectors. |
| Long-distance connection with SC interfaces | Fiber Patch Cord Equip MTP/SC Trunk OM4 15m | The additional 15-meter length is convenient for routing paths between distant cabinets while keeping SC interfaces. |
| Compact patching within a single rack with SC ports | Fiber Patch Cord Equip MTP/SC Trunk OM4 7m | The 7-meter length prevents unnecessary cable loops when equipment with SC connectors is positioned closely. |
| Connecting hardware with LC ports at short distances | Fiber Optic Patch Cable Equip MTP/MTP Trunk OM4 5m | The combination of MTP and 4x LC along with a 5-meter length is ideal for dense transceiver placement at minimal range. |
The Fiber Patch Cord Equip MTP/SC Trunk OM4 10m is best suited for situations where you need to connect networking equipment with SC connectors at a medium distance within a data center or enterprise network. If you require the exact same connector type but need a longer or shorter cable run, the 15-meter or 7-meter versions are more appropriate. If your equipment features LC ports, you should consider the product line featuring MTP/LC connectors.
