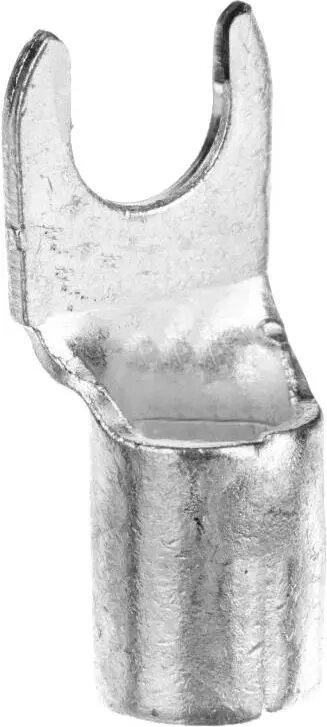

Ergom KW Fork Terminal 16mm² for 6mm Stud

The Ergom KW fork terminal is a professional-grade electrical connector engineered for the secure termination of 16mm² conductors onto 6mm diameter studs. Designed for durability and optimal performance, this terminal facilitates reliable electrical contact in demanding environments, such as control panels, switchgear, and industrial wiring systems. Its robust construction ensures mechanical stability and efficient current flow, providing a dependable solution for permanent electrical installations.

Advantages

This fork terminal offers superior electrical conductivity, ensuring minimal resistance and heat generation during operation. The design allows for quick and easy installation or removal from stud-type terminals without the need to fully unscrew the fastener, which significantly improves maintenance efficiency. The high-quality material composition provides excellent resistance to mechanical stress and environmental factors, ensuring a long service life in professional electrical applications.

Suitable for

• Control panel wiring and distribution boards
• Industrial automation and machinery electrical systems
• Connection of power cables to stud-type terminal blocks
• Maintenance and repair of electrical equipment

When it may not be suitable

This terminal is not intended for use with conductors outside the specified 16mm² cross-section range, as improper sizing can lead to loose connections or overheating. It is also not suitable for applications requiring high-vibration resistance where a ring terminal would be more appropriate to prevent accidental disconnection.

Key specifications

• Conductor cross-section: 16mm²
• Stud size: 6mm
• Terminal type: Fork (spade)
• Material: High-conductivity copper alloy

How to use

To use the Ergom KW fork terminal, first strip the insulation from the end of the 16mm² conductor to the appropriate length. Insert the conductor into the barrel of the terminal and use a professional crimping tool designed for this specific terminal type to ensure a gas-tight connection. Once crimped, loosen the nut on the 6mm stud, slide the fork terminal into place, and tighten the nut securely to ensure full contact surface area.

What to consider before purchase

• Verify the conductor cross-section matches the 16mm² specification
• Ensure the stud diameter is exactly 6mm for a proper fit
• Confirm the availability of a compatible crimping tool

Usage recommendations

Always ensure that the power supply is disconnected before performing any electrical work. Regularly inspect connections for signs of oxidation or mechanical loosening to maintain system integrity.
