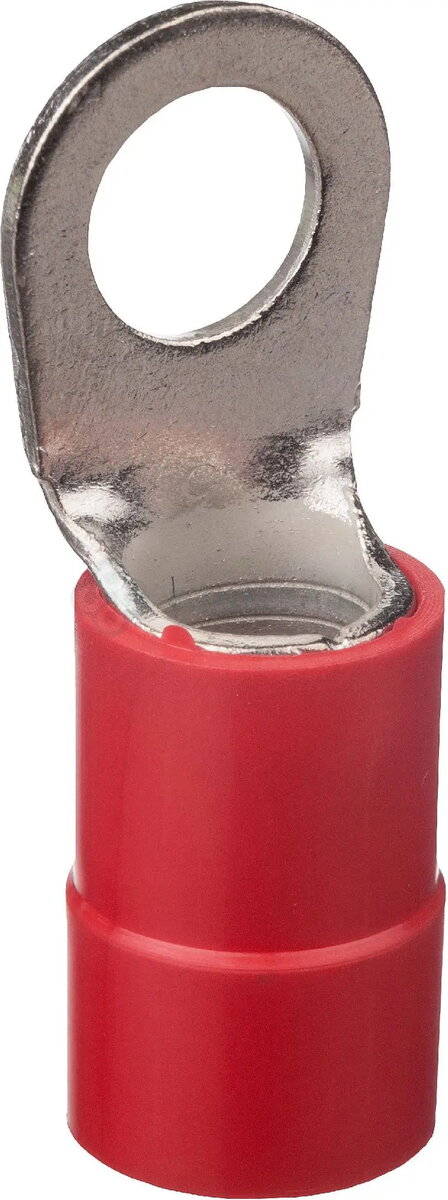

Ergom KOI 35/10 Insulated Ring Terminal for 35mm² Cable with 10mm Stud Hole

The Ergom KOI 35/10 is a high-quality insulated ring terminal engineered for the secure termination of 35mm² electrical conductors. Designed for precision and durability, this terminal features a 10mm stud hole, making it an essential component for creating robust electrical connections in both industrial and residential environments. The integrated insulation sleeve provides critical protection against short circuits and accidental contact, significantly enhancing the safety and reliability of your electrical systems.

Advantages

This ring terminal offers exceptional mechanical strength and electrical conductivity, ensuring that connections remain stable even under demanding operating conditions. The high-grade insulation material is resistant to environmental factors, which helps maintain the integrity of the connection over time. Its design facilitates easy installation while ensuring a tight, vibration-resistant fit on the stud, which is vital for maintaining consistent power flow and preventing overheating in high-current applications.

Suitable for

• Industrial electrical panel building
• Residential electrical wiring projects
• Power distribution systems
• Automotive and machinery electrical maintenance

When it may not be suitable

This terminal is specifically designed for 35mm² cables and a 10mm stud size. It is not suitable for cables with different cross-sections, as this would result in an insecure connection or improper crimping. Additionally, it should not be used in environments where temperatures exceed the thermal rating of the insulation material.

Key specifications

• Cable cross-section: 35mm²
• Stud hole diameter: 10mm
• Insulation type: Integrated sleeve
• Material: High-conductivity copper with protective coating

How to use

To use the Ergom KOI 35/10, first strip the insulation from the end of your 35mm² cable to the appropriate length. Insert the conductor into the barrel of the terminal, ensuring all strands are fully contained. Use a professional-grade crimping tool specifically calibrated for 35mm² terminals to compress the barrel firmly onto the wire. Once crimped, place the ring over the 10mm stud and secure it tightly with a nut or bolt to ensure optimal electrical contact.

What to consider before purchase

• Verify the cable cross-section matches 35mm² exactly.
• Ensure the stud size is 10mm to guarantee a proper fit.
• Confirm that your crimping tool is compatible with insulated ring terminals of this size.

Usage recommendations: Always perform a pull test after crimping to ensure the wire is securely fastened within the terminal. Ensure the connection point is clean and free of oxidation before installation to maintain maximum electrical efficiency.
