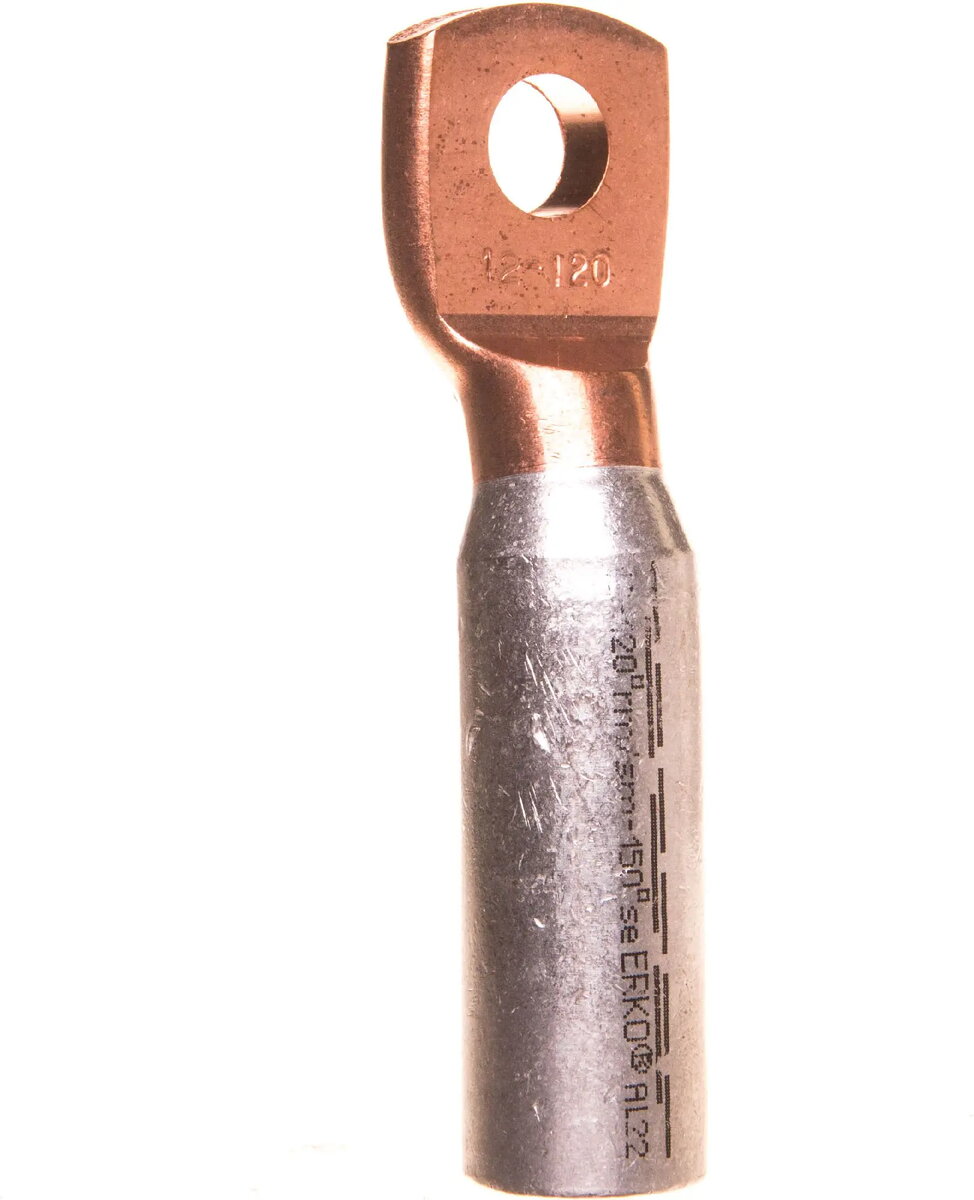

Erko ACK 12-240/1 Sealed Al-Cu Ring Terminal for 12-240mm² Conductors

The Erko ACK 12-240/1 is a professional-grade sealed ring terminal engineered for secure and reliable connections between aluminum and copper conductors. Designed to accommodate a wide range of cable sizes from 12mm² to 240mm², this terminal is essential for maintaining electrical integrity in complex power distribution systems. Its robust construction prevents oxidation and corrosion at the junction point, ensuring long-term stability and safety in demanding industrial environments.

Advantages

This terminal offers exceptional durability due to its specialized sealed design, which effectively protects the connection from environmental factors and moisture ingress. By facilitating a stable transition between aluminum and copper, it minimizes the risk of galvanic corrosion, which is a common issue in mixed-metal electrical systems. The high-quality materials used in its manufacturing ensure excellent conductivity and mechanical strength, providing peace of mind for critical electrical infrastructure projects.

Suitable for

• Industrial power distribution networks
• Connecting aluminum cables to copper busbars or terminals
• Electrical installations in outdoor or high-humidity environments
• Heavy-duty electrical machinery and equipment

When it may not be suitable

This terminal is specifically designed for aluminum-to-copper transitions and may not be necessary for simple copper-to-copper connections where standard terminals are more cost-effective. It is also not intended for use with conductors outside the specified 12mm² to 240mm² range.

Key specifications

• Conductor range: 12mm² to 240mm²
• Material compatibility: Aluminum and Copper
• Design: Sealed ring terminal
• Application: Corrosion-resistant electrical connection

How to use

To use the Erko ACK 12-240/1, first strip the insulation from the conductor to the appropriate length. Insert the conductor into the terminal barrel, ensuring it is fully seated. Use a professional-grade crimping tool compatible with the terminal size to create a secure, permanent connection. Ensure the crimping process is performed according to standard electrical practices to guarantee optimal contact pressure and electrical conductivity.

What to consider before purchase

• Verify the cross-sectional area of your conductor falls within the 12-240mm² range
• Ensure you have the correct crimping tool for this specific terminal type
• Check the mounting bolt size required for the ring terminal hole

Usage recommendations

Always ensure that the conductor surface is clean and free of debris before insertion. For optimal performance in highly corrosive environments, consider applying an appropriate electrical joint compound to the conductor before crimping.
