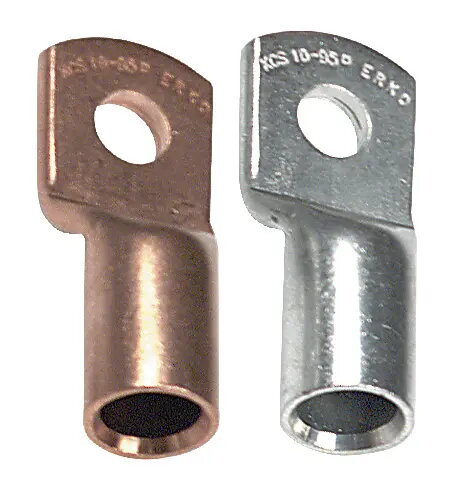

Erko KCS6 Tubular Cable Lug 16mm2 M6 Tin-Plated

The Erko KCS6 tubular cable lug is a professional-grade electrical connector engineered for the reliable termination of 16mm2 conductors. Constructed from high-quality copper and finished with a durable tin-plated coating, this terminal provides superior electrical conductivity and long-term protection against corrosion. Designed with an M6 mounting hole, it ensures a secure and stable connection for various power distribution and electrical installation projects.

Advantages

The primary benefit of the Erko KCS6 lug is its robust construction, which minimizes contact resistance and ensures optimal current flow. The tin-plated surface prevents oxidation, making it suitable for use in demanding environments where reliability is critical. Its tubular design allows for precise crimping, providing a strong mechanical bond between the cable and the terminal, which is essential for maintaining safety and performance in electrical systems.

Suitable for

• Industrial power distribution systems
• Electrical control panels and switchgear
• Automotive and marine electrical wiring
• Renewable energy installations
• General electrical infrastructure projects

When it may not be suitable

This cable lug is specifically designed for 16mm2 conductors and an M6 bolt size. It may not be suitable for applications requiring different wire gauges or mounting hardware dimensions, as improper sizing can lead to loose connections or overheating.

Key specifications

• Conductor cross-section: 16mm2
• Mounting hole diameter: M6
• Material: Tin-plated copper
• Type: Tubular cable lug

How to use

To use the Erko KCS6 cable lug, first strip the insulation from the end of the 16mm2 conductor to the appropriate length. Insert the conductor fully into the tubular barrel of the lug. Use a professional crimping tool compatible with tubular lugs to compress the barrel firmly onto the wire. Once crimped, align the mounting hole with the terminal stud and secure it using an M6 bolt and washer to ensure a tight, low-resistance connection.

What to consider before purchase

• Verify that the conductor cross-section is exactly 16mm2
• Ensure the M6 bolt size matches your existing terminal block or busbar
• Check that you have the correct crimping tool for tubular copper lugs
• Confirm the environmental conditions for compatibility with tin-plated copper

Usage recommendations

Always ensure the crimping tool is properly calibrated for the specific lug size to achieve a gas-tight connection. Regularly inspect the connection point for signs of heat or mechanical stress in high-vibration environments.
