Ernitec WT5 Workstation Intel Core Ultra 5 225 16GB DDR5-SDRAM NVIDIA GeForce RTX 3050 Windows 11 Pro Black 750W

Power cord included:

Yes

Number of displays supported: The number of displays that can be used with this product.

5

DisplayPort version:

1.4

Total SSDs capacity:

1000 GB

Discrete GPU manufacturer:

NVIDIA

On-board graphics card 6K support:

Yes

Processor base power:

65 W

Number of rear USB ports:

9

Number of front USB ports:

5

Other features

Number of free internal memory expansion slots:

2

Product type: The sub-category of the product.

Workstation

Form factor: The shape or design of the product.

Midi Tower

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

10

Supported memory types: Types of memory which can be used with the product.

DDR5-SDRAM

Packaging data

Package weight: Weight of the packaged product.

12000 g

Weight & dimensions

Package height: The distance from the top to the bottom of the packaging.

530 mm

Package depth: The distance from the front to the back of the packaging.

540 mm

Package width: The distance from one side of the packaging to the other.

310 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

10 kg

Height: The measurement of the product from head to foot or from base to top.

530 mm

Depth: The distance from the front to the back of something.

540 mm

Width: The measurement or extent of something from side to side.

310 mm

Power

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

750 W

Design

Motherboard form factor: Design of the motherboard (ATX, BTX etc).

ATX

Product colour: The colour e.g. red, blue, green, black, white.

Black

BIOS

BIOS memory size:

256 Mbit

Features

Compatible operating systems: List of desktop operating systems tested as compatible with this product.

Windows 11

Audio chip:

Realtek ALC897

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1

Expansion slots

PCI Express x4 (Gen 3.x) slots:

1

Certificates

80 PLUS certification:

80 PLUS Gold

Storage

SSD form factor: The size of the solid-state drive, given in inches

M.2

Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.

0

Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.

2

Number of 2.5" bays:

2

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express

NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Yes

Number of SSDs installed:

1

Processor

Processor socket: Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

LGA 1851 (Socket V1)

Processor threads:

10

Processor cache type:

Smart Cache

Efficient cores:

4

Performance cores:

6

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

4.9 GHz

Processor model: The model number for the processor in a computer.

225

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel B860

Processor cache:

20 MB

Performance-core Max Turbo Frequency:

4.9 GHz

Efficient-core Max Turbo Frequency:

4.4 GHz

Performance-core base frequency:

3.3 GHz

Efficient-core base frequency:

2.7 GHz

Processor manufacturer: The manufacturer that produced the processor.

Intel

Processor special features

Intel® Quick Sync Video Technology: Create, Edit, and Share Video in a Flash Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier.

Yes

Processor ARK ID:

241749

Software

Operating system language:

Multilingual

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro

Performance

BIOS type: The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.

UEFI AMI

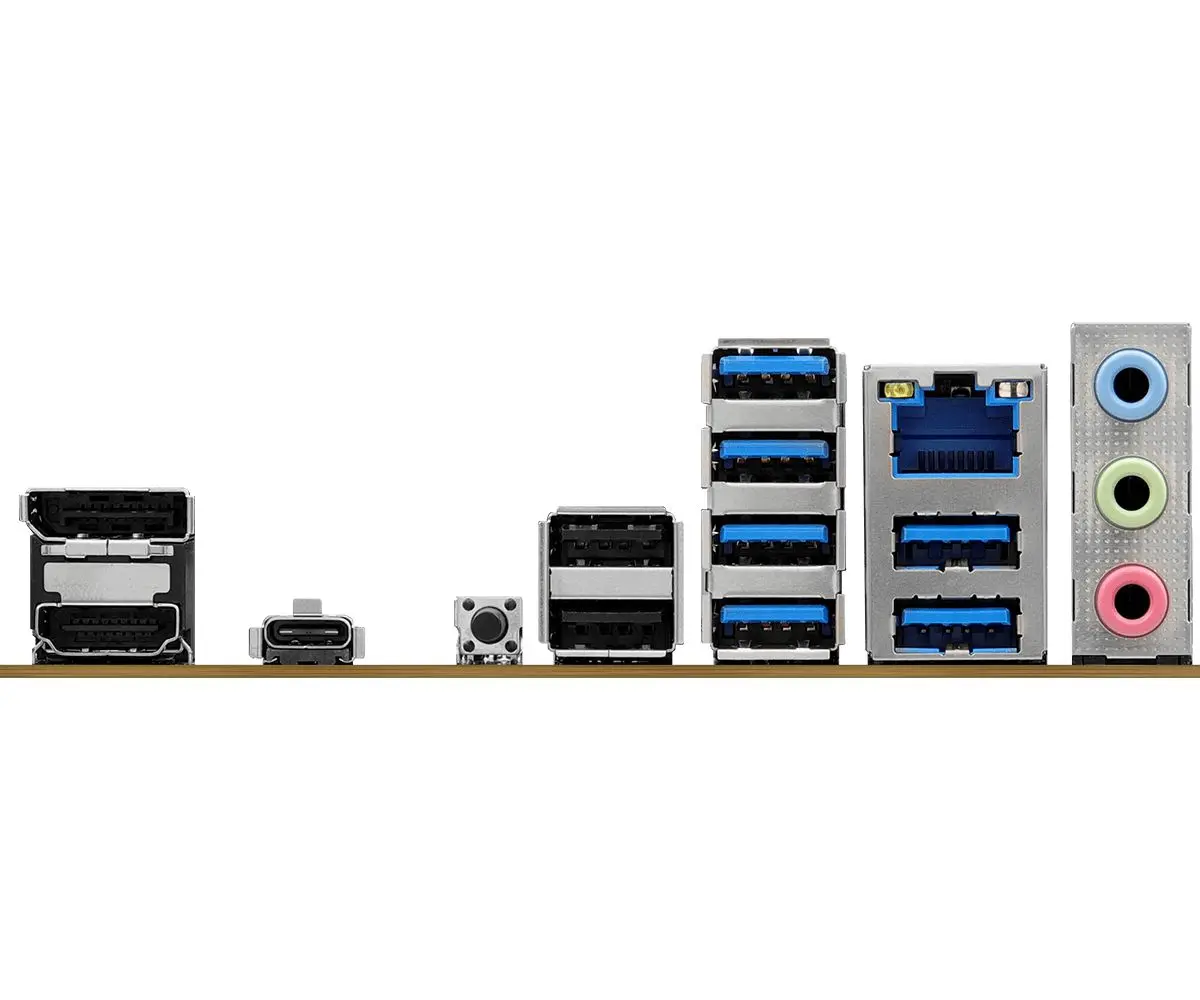

Ports & interfaces

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2

HDMI version:

2.1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2

Number of SATA connectors:

4

Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity:

2

Internal USB 2.0 ports quantity:

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

2

Network

Wake-on-LAN ready:

Yes

LAN controller:

Dragon RTL8125BG

Ethernet interface type:

25 Gigabit Ethernet

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

2500

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Graphics

On-board graphics card 4K support:

Yes

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel Arc Graphics

Number of discrete graphics cards:

1

Discrete graphics card memory:

6 GB

Discrete graphics memory type:

GDDR6

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

NVIDIA GeForce RTX 3050

On-board graphics card family:

Intel Arc Graphics

On-board GPU manufacturer:

Intel

Discrete graphics card:

Yes

Memory

Maximum internal memory: The maximum internal memory which is available in the product.

256 GB

Memory clock speed: The frequency at which the memory (e.g. RAM) runs.

5600 MHz

Memory channels:

Dual-channel

Memory layout (slots x size): The slots and size of the memory for the CPU.

2 x 8

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

16 GB
