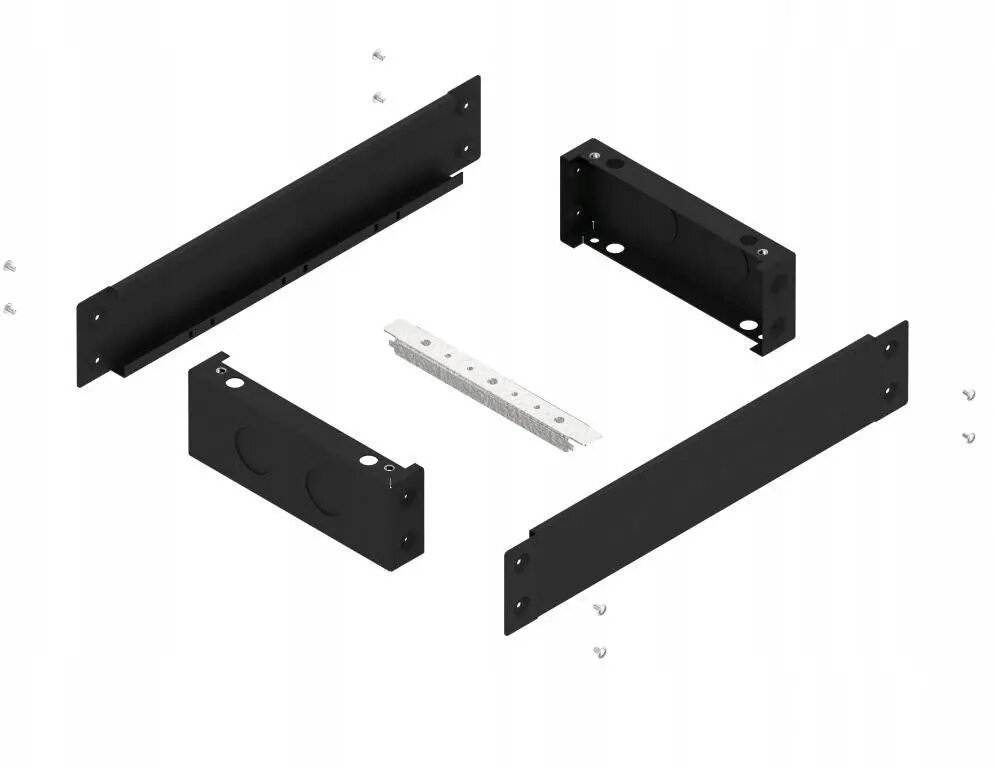

Eti-Polam PH1 D4-W3 100 mm Plinth for HXS400 Enclosures, RAL9005, Width 800

The Eti-Polam PH1 D4-W3 plinth is a robust 100 mm high base specifically engineered for HXS400 series electrical enclosures with a width of 800 mm. This component serves as a reliable foundation, elevating the enclosure above the floor level to provide necessary clearance for incoming and outgoing cables. Finished in a professional RAL9005 black coating, it integrates seamlessly with industrial and commercial electrical distribution setups, ensuring both structural stability and a clean, organized installation environment.

Advantages

This plinth offers significant benefits for professional electrical installations by providing a stable and elevated mounting platform that protects the enclosure from floor-level moisture and debris. The design simplifies the process of cable entry and management, allowing for easier access during both the initial installation and subsequent maintenance tasks. Its durable construction ensures long-term support for heavy electrical equipment, while the standardized finish maintains a consistent aesthetic across complex distribution systems.

Suitable for

• Industrial electrical distribution cabinets
• Commercial power management systems
• Floor-standing HXS400 enclosure configurations
• Environments requiring organized cable routing from the floor

When it may not be suitable

This plinth is specifically designed for HXS400 series enclosures with a width of 800 mm and will not be compatible with enclosures of different series or dimensions. It is not intended for wall-mounted applications or installations where the enclosure must be flush with the floor surface.

Key specifications

• Height: 100 mm
• Compatibility: HXS400 series enclosures
• Width: 800 mm
• Color: RAL9005
• Material: Durable metal construction

How to use

To install the plinth, position it on a level floor surface at the desired location. Secure the base firmly to the floor using appropriate mounting hardware. Once the base is stable, align the HXS400 enclosure with the top of the plinth and fasten it securely using the provided mounting points. Ensure that all cable entries are properly aligned with the openings in the plinth before finalizing the connection.

What to consider before purchase

• Verify the exact width of your enclosure to ensure it matches the 800 mm requirement.
• Confirm that your enclosure model belongs to the HXS400 series.
• Ensure the floor surface is level to maintain the stability of the entire assembly.
• Check if additional cable glands or sealing accessories are required for your specific installation.

Usage recommendations

Regularly inspect the mounting bolts and the connection between the plinth and the enclosure to ensure they remain tight and secure, especially in environments subject to vibrations. Keep the area around the plinth clear of debris to maintain easy access to cable entry points.
