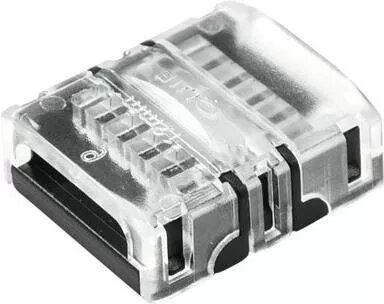

LED strip connector EUROLITE 50530073, 5-pin for 12 mm LED strips

EUROLITE 50530073 is a 5-pin connector engineered for 12 mm multichannel LED strips. It enables a secure electrical and mechanical link between RGBW or other 5-wire LED strips and controllers, power supplies or extension leads. The connector is designed for quick, solder-free connections, simplifying installations, replacements and maintenance in indoor lighting setups while maintaining reliable signal and power transmission.

Advantages

The connector supports 5-wire configurations for RGBW and similar LED strips, providing a compact and lightweight solution that avoids soldering. Its clamp-style contact design ensures consistent electrical contact and reduces installation time. The connector’s form factor is compatible with standard 12 mm strip widths, enabling straightforward integration into lighting fixtures, channels and custom assemblies.

Suitable for

• Connecting RGBW or other 5-wire 12 mm LED strips to controllers
• Extending multichannel LED strip runs without soldering
• Quick replacement or repair of damaged strip segments in indoor installations
• Prototyping and temporary lighting setups where fast assembly is needed

Key specifications

• Pin count: 5 conductors suitable for multichannel strips
• Compatible strip width: 12 mm
• Connection type: solder-free clamp/contact connection
• Intended use: indoor LED strip electrical and mechanical connection
• Contact arrangement: aligned to match common 5-wire LED strip contacts (signal and power lines)

How to use

Ensure the LED strip and the connector contact pads are clean and free of debris. Align the 12 mm LED strip so that the strip’s contact pads match the connector’s contact positions, then insert the strip fully into the connector channel. Close the connector latch or clamp according to the manufacturer’s action to secure the strip and establish electrical contact. Connect the mating cable or controller wires to the connector’s output side, making sure wire order corresponds to the controller and strip wiring. Verify polarity and channel assignment before powering the system.

Usage recommendations

Use this connector only with compatible 12 mm, 5-wire LED strips and install in dry, indoor environments. For permanent or outdoor installations, consider sealed or soldered connections and appropriate weatherproofing. Always disconnect power before making or changing connections and follow the controller and power supply specifications to avoid overcurrent or incorrect wiring.
