Power Feed (Einspeiser) for 5‑pin LED Strip EUROLITE 50530074, 12 mm

The EUROLITE power feed for 5‑pin LED strip, 12 mm, provides a compact feed-in connection designed to deliver power and signal to compatible LED strips. It is intended for use where a separate power input is required to maintain stable operation across longer runs or to add power at specific points. The unit supports 5‑pin interfaces and a 12 mm strip width, offering a straightforward way to connect power leads without soldering in many installation scenarios.

Advantages

This power feed offers a reliable mechanical and electrical connection tailored to 5‑pin, 12 mm LED strips. Its design reduces installation time and simplifies wiring by enabling direct feed-in of power and control signals. The compact form factor allows placement in confined spaces while maintaining contact stability. The solution helps reduce voltage drop along long strips when used as an intermediate or end feed point.

Suitable for

• Feeding 5‑pin LED strips with a 12 mm width in indoor lighting installations
• Adding a dedicated power input at midpoints of long LED strip runs
• Signage, architectural accent lighting, and display lighting requiring a 5‑pin interface
• Installations that require a compact, secure feed connection without extensive soldering

Key specifications

• Compatibility: 5‑pin LED strips, 12 mm width
• Function: power and signal feed-in connection for LED strips
• Connection type: feed connector for power and control signal lines
• Form factor: compact inline feed suitable for installation in confined spaces
• Use environment: designed primarily for indoor lighting and signage applications

How to use

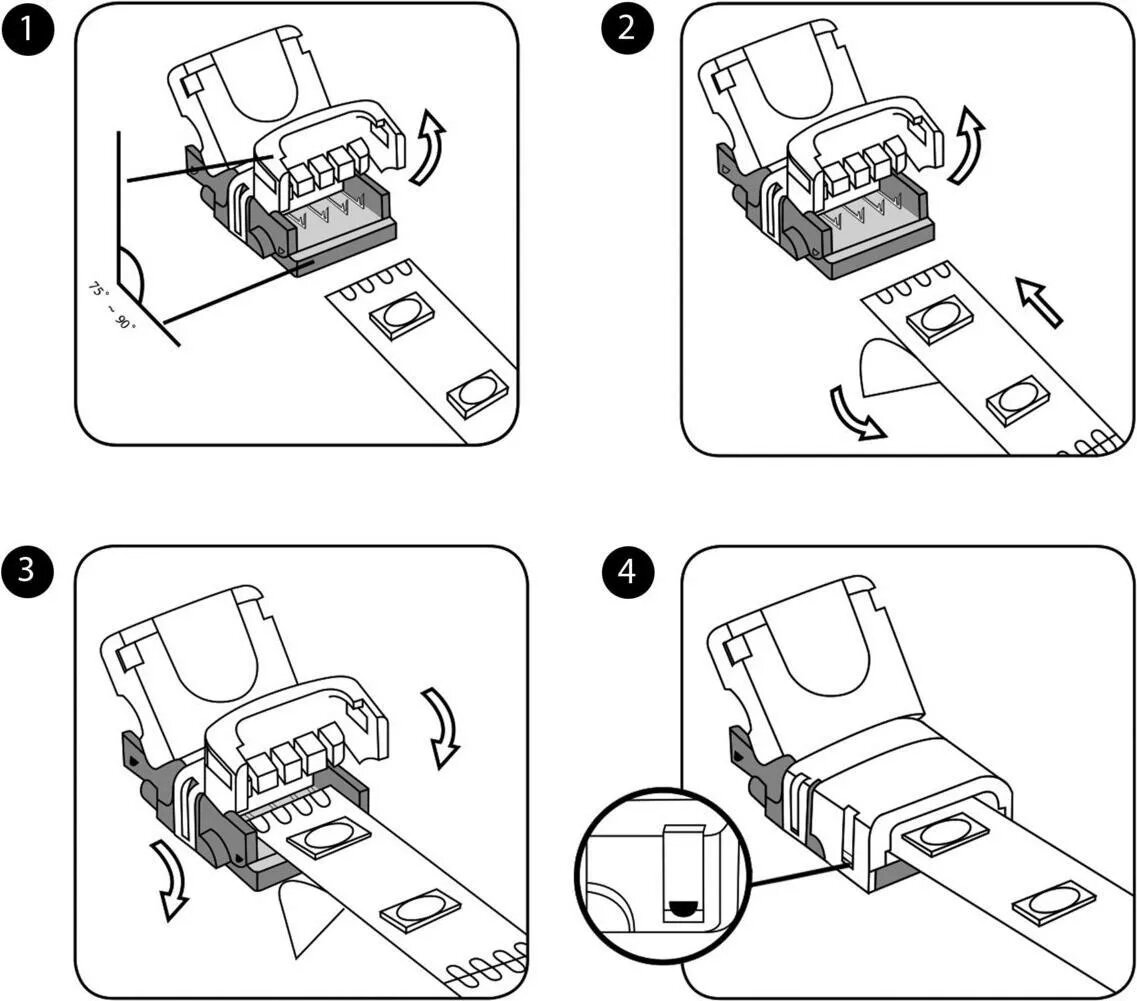

Prepare the LED strip and power supply according to the strip manufacturer’s instructions. Align the 5‑pin conductors of the LED strip with the feed connector and secure the strip into the connector following the product’s mechanical attachment method. Connect the power and control wires to the feed connector ensuring correct polarity and pin assignment for the control signal. After connecting, power the supply and verify that the strip receives power and responds to control signals as expected. Make sure all connections are secure and insulated where necessary.

Usage recommendations

Use the feed at intervals recommended by the LED strip manufacturer to minimize voltage drop on long runs. Verify pin mapping and control signal requirements before connecting to avoid damage. For permanent installations, ensure connections are protected from moisture and mechanical strain.
