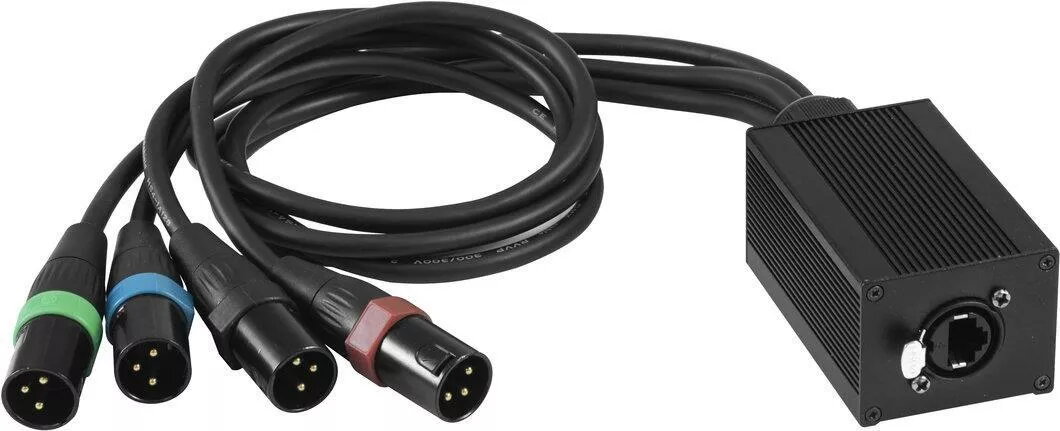

DMX-RJ45 Adapter EUROLITE DNK-1 (MPN 70064831) for converting DMX512 signals to RJ45 connections

EUROLITE DNK-1 is a compact DMX-RJ45 adapter designed to convert standard DMX512 signals to an RJ45 connection for simplified cable routing in live events, stage installations and fixed lighting setups. The adapter provides a physically small and easy-to-install interface between DMX controllers and fixtures or stage equipment that use Ethernet-style cabling, allowing existing DMX512 systems to interoperate with RJ45 infrastructures without altering signal format.

Advantages

The adapter offers a space-saving form factor and straightforward passive conversion of DMX512 to an RJ45 interface, enabling use of commonly available Ethernet cables for DMX signal transport. It reduces cable clutter and can streamline cabling runs across long distances or through existing network conduits. The device is compatible with typical lighting control equipment that outputs DMX512 and with fixtures or patch panels expecting an RJ45 physical connection.

Suitable for

• Live concerts and touring rigs where RJ45 cabling is preferred for routing
• Theatre and stage productions requiring discrete cable runs
• Fixed installations in venues or studios using structured cabling
• Connections between DMX controllers, patch panels and RJ45-equipped fixtures

Key specifications

• Function: passive conversion of DMX512 signals to RJ45 physical connection
• Signal compatibility: DMX512 protocol (unmodified signal format)
• Connector types: standard 5-pin XLR (DMX input/output) and RJ45 (Ethernet-style) interface
• Form factor: compact inline adapter suitable for rack, stage or in-line cabling
• Materials and finish: robust housing designed for event and stage use

How to use

Insert the EUROLITE DNK-1 adapter between a DMX512 output or fixture using the XLR DMX connector and an RJ45 cable run. Ensure the DMX controller and fixture are powered off when connecting or disconnecting cables to avoid signal interruption. After physical connection, power up the system and verify that the DMX universe and addressing remain unchanged; the adapter performs a passive mapping to the RJ45 connector without altering DMX data. Use proper shielding and grounding practices for long cable runs to maintain signal integrity.

Использование и рекомендации

The adapter is intended for professional lighting signal routing where RJ45 cabling is needed; for best results use high-quality Cat5e or Cat6 cable and maintain secure connector seating. Avoid running DMX cabling in parallel with mains power over long distances to reduce interference. Verify pinouts and compatibility with any intermediate patch panels or network hardware before deployment.
