Internal Serial Adapter EXSYS EX-46012

Name: Internal Serial Adapter EXSYS EX-46012 EX-46012
Brand: Exsys
SKU: 5829757
Price: 40.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Internal Serial Adapter EXSYS EX-46012 PCIe Male ASIX MCS9901CV-CC

Internal Serial Adapter EXSYS EX-46012 Photo 1

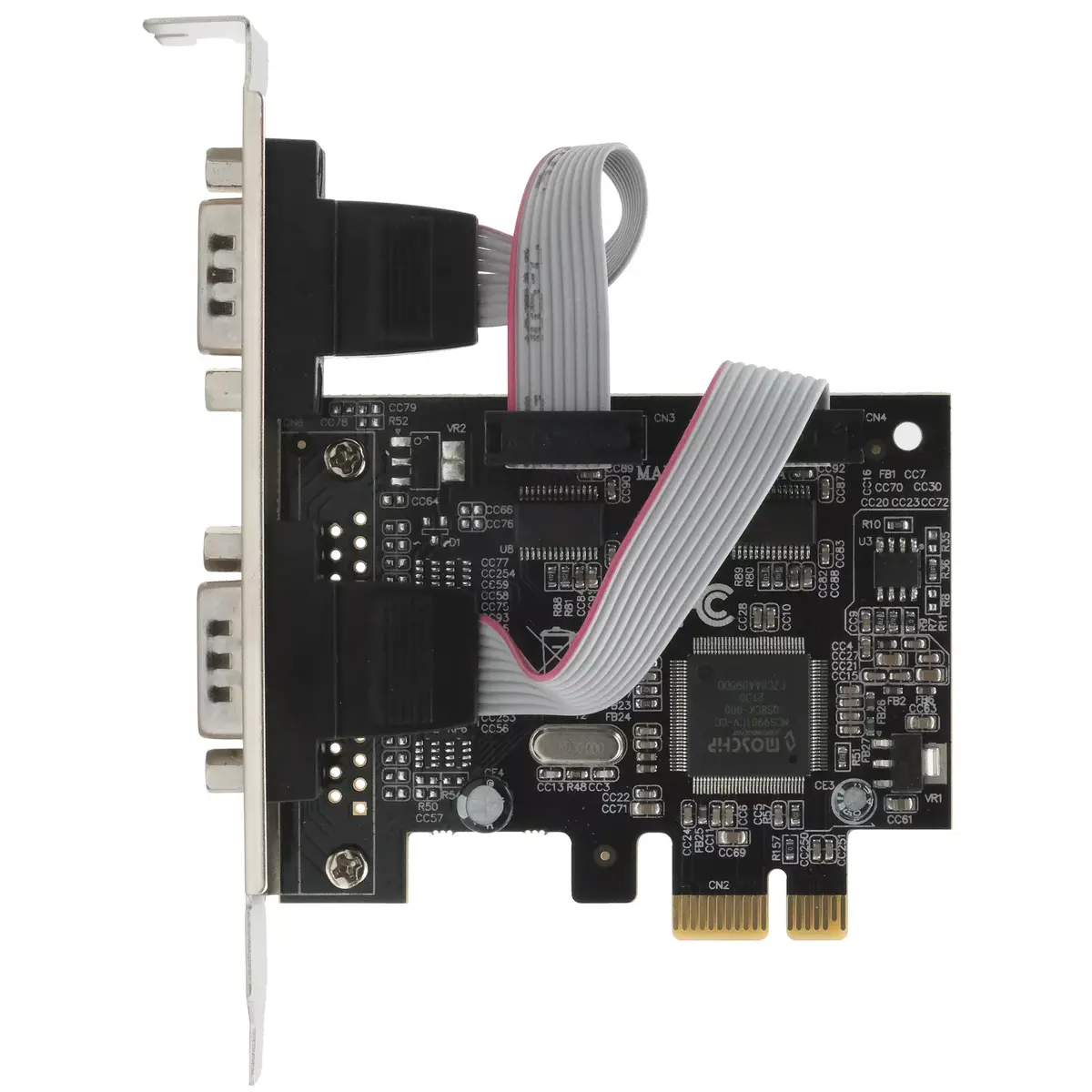

Internal Serial Adapter EXSYS EX-46012 Photo 2

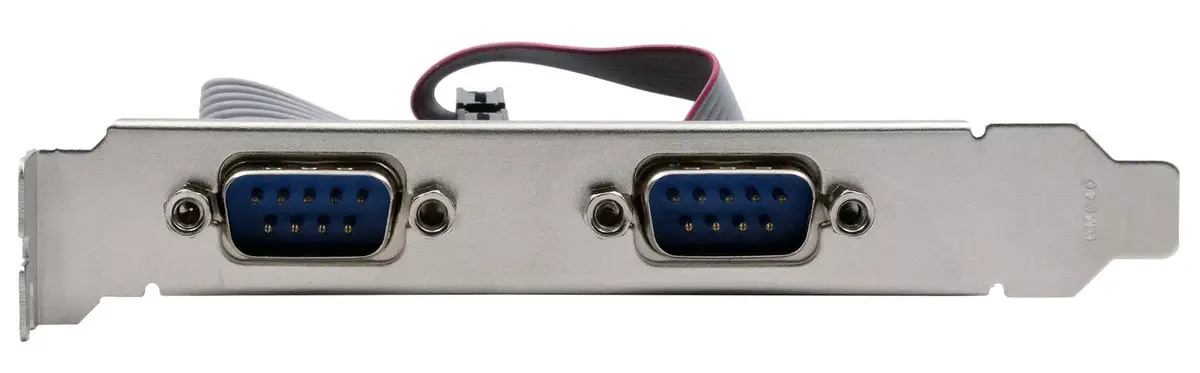

Internal Serial Adapter EXSYS EX-46012 Photo 3

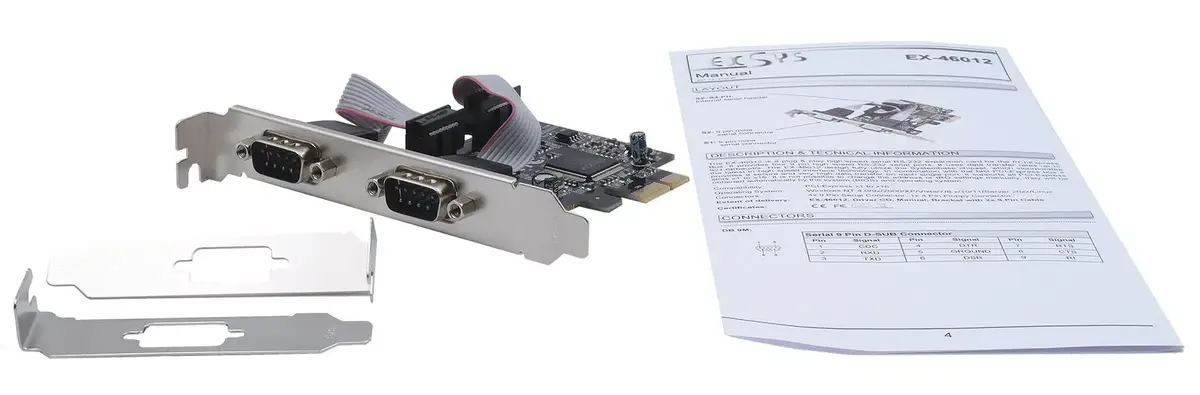

Internal Serial Adapter EXSYS EX-46012 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The EXSYS EX-46012 is an internal serial adapter featuring a PCIe host interface and ASIX MCS9901CV-CC chipset. It has male connectors and operates at a power supply input voltage of 3.3 V. Compact dimensions of 62 mm width and 77.5 mm depth make it suitable for various applications.

Available for order: 15 pcs.

Warranty: 2 Years

SKU: 5829757

Manufacturer: Exsys

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.18 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

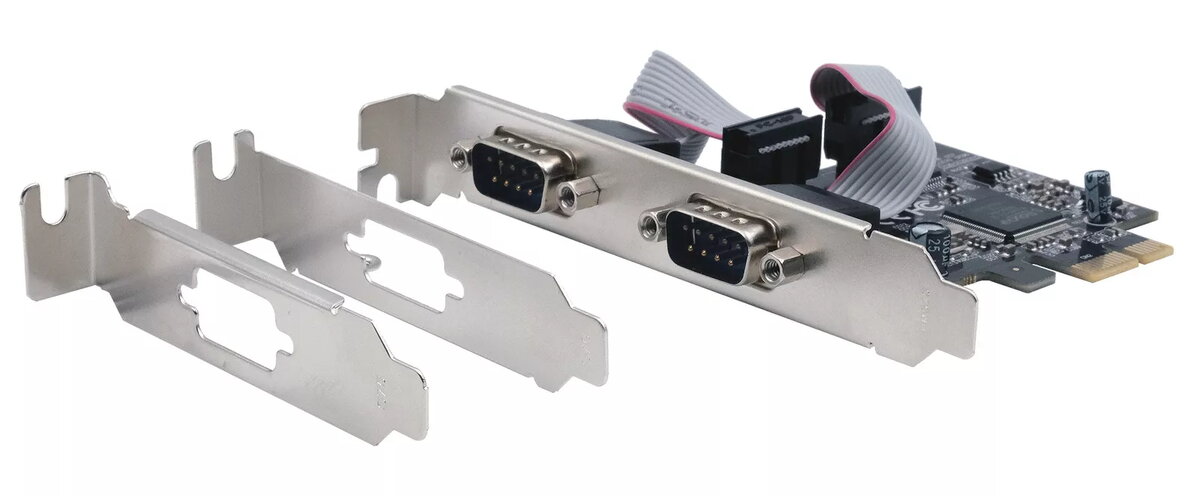

The EXSYS EX-46012 PCIe internal serial adapter provides two RS-232 serial ports driven by high-performance 16C550-compatible UARTs. Designed for installation in PCs, small workstations or servers, the card uses a PCIe host interface and the ASIX MCS9901CV-CC chipset. The adapter is supplied with two low-profile brackets to fit compact computer cases and requires a 3.3 V power input; its compact dimensions (62 mm × 77.5 mm) suit space-constrained systems.

Advantages

The EX-46012 adds two reliable RS-232 ports via a PCIe slot, offering compatibility with legacy serial devices and systems that require UART-based communication. The onboard ASIX MCS9901CV-CC chipset and 16C550-style UARTs ensure consistent serial performance, while the included low-profile brackets allow flexible installation in standard and small-form-factor cases. The adapter's internal design and grey finish integrate easily into a range of hardware environments.

Suitable for

Connecting industrial or legacy serial devices (modems, barcode scanners, PLCs)
Expanding serial ports on desktops, servers, or small workstations
Embedded systems or applications requiring reliable UART-based communication

Key specifications

Host interface: PCIe
Chipset: ASIX MCS9901CV-CC
UART: 16C550-compatible, 2 × RS-232 ports
Power supply input: 3.3 V
Dimensions: 62 mm (W) × 77.5 mm (D)
Internal: Yes
Colour: Grey
Weight: 0.13 kg
MPN: EX-46012
EAN: 4718359460128

How to use

Install the EX-46012 into an available PCIe slot on the host system, secure the card using the appropriate bracket (standard or low-profile depending on the case), and connect any required internal power if applicable. After physical installation, power on the system and install or verify the correct drivers for the ASIX MCS9901CV-CC chipset so the operating system recognises the two RS-232 serial ports. Configure serial port parameters (baud rate, parity, data bits, stop bits) in your application or OS serial communication settings as needed.

Usage recommendations

Use the supplied low-profile brackets for small-form-factor cases and ensure the host system provides a stable 3.3 V supply. For reliable operation with industrial equipment, use quality shielded serial cables and verify grounding. Confirm driver compatibility with your operating system before deployment.

Specifications

Host interface:: PCIe
Weight:: 0.13 kg
Internal:: Yes
Output interface:: Serial
Product colour:: Grey

All features

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 75
Operating temperature (T-T):: 0 - 55

Technical details

Sustainability compliance:: Yes
Compliance certificates:: RoHS, Federal Communications Commission (FCC), CE

Ports & interfaces

Serial interface type:: RS-232
Serial ports quantity:: 2
Host interface:: PCIe
Output interface:: Serial
Host interface gender:: Male

Other features

Manual:: Yes

Weight & dimensions

Weight:: 0.13 kg
Width:: 62 mm
Depth:: 77.5 mm

Power

Power supply input voltage:: 3.3

System requirements

Windows operating systems supported:: Y
Mac operating systems supported:: Y
Linux operating systems supported:: Y

Design

Internal:: Yes
Product colour:: Grey

Performance

Chipset:: ASIX MCS9901CV-CC

Logistics data

Country of origin:: China
Quantity per pack:: 1 pc(s)

Features

Baud rate:: 921.6 Kbit/s
Data bits:: 8, 7, 6, 5
Stop bits:: 2, 1.5, 1
FIFO (First In, First Out):: 256
Connector 1 form factor:: Straight
Connector 2 form factor:: Straight
Connector 1 gender:: Male
Connector 2 gender:: Male

Packaging data

Mounting brackets included:: Yes
