Extralink 1:4 FBT SC/APC 70:10:10:10 Cable Splitter
Short description
Cheapest delivery:
Unisend LV
Product information
Description

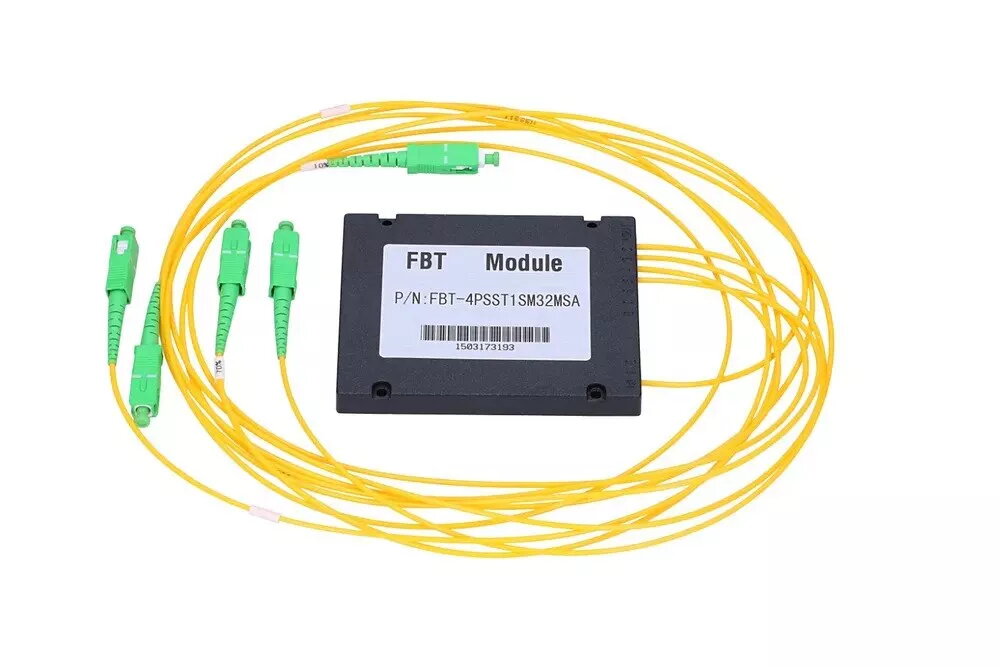

The Extralink 1:4 FBT SC/APC 70:10:10:10 Cable Splitter is designed for efficient optical signal distribution in telecommunications and FTTH infrastructure. This fiber optic splitter features a 1:4 FBT configuration with SC/APC connectors and a 70:10:10:10 split ratio, enabling the delivery of network connections directly to multiple endpoints without the need for active intermediate devices. Built with a durable ABS housing in green and yellow, the unit includes a 1-meter cable with a 2.0 mm diameter and adheres to the G.657.A1 fiber standard for reliable performance.
Advantages
This cable splitter provides a reliable method for dividing optical signals in passive optical networks. Its specific 70:10:10:10 split ratio allows for precise power allocation among different network branches. The inclusion of factory-terminated SC/APC connectors ensures secure connections with minimal signal reflection. The robust ABS material protects the internal components, while the compact dimensions and standard fiber compatibility facilitate smooth integration into existing telecommunication setups.
Suitable for
- FTTH infrastructure deployment
- Passive optical fiber networks
- Telecommunication signal distribution
- Server room to client device fiber routing
This product may not be suitable for network environments that require active signal amplification or management, as passive splitters only divide existing optical power without boosting it. It is also not intended for heavy industrial environments requiring armored cabling or applications utilizing different connector types without appropriate adapters.
Key specifications
- Type: Cable splitter
- Configuration: 1:4 FBT
- Split ratio: 70:10:10:10
- Connectors: SC/APC
- Fiber standard: G.657.A1
- Cable length: 1 m
- Cable diameter: 2.0 mm
- Housing material: ABS
- Colour: Green, Yellow
To use the cable splitter, carefully unpack the unit and inspect the connectors for any dust or debris. Clean the SC/APC connectors using appropriate fiber optic cleaning tools before mating. Connect the input fiber from the source to the designated input port, and route the output lines to the respective client or network devices, ensuring that the bend radius limits of the G.657.A1 fiber are respected during installation.
What to consider before purchase
- Verify that the 70:10:10:10 split ratio matches your network design requirements
- Ensure your equipment utilizes SC/APC compatible connections
- Check the available space for housing the 20 mm x 200 mm x 150 mm splitter unit
- Confirm whether a passive splitter meets your network architecture needs
Always maintain cleanliness on all optical interfaces and avoid exceeding the minimum bend radius of the 2.0 mm cable during installation to ensure optimal signal transmission and longevity of the network splitter.
- Type:
- Cable splitter
- Number of connectors:
- 5
Logistics data
- Customs product code (TARIC):
- 85447000
Other features
- Material:
- ABS
- Connector(s):
- 5
Packaging content
- Quantity per pack:
- 1 pc(s)
Weight & dimensions
- Weight:
- 0.98 kg
- Height:
- 150 mm
- Depth:
- 200 mm
- Width:
- 20 mm
Features
- Country of origin:
- China
- Product colour:
- Green, Yellow
Product comparison
The optical cable splitter Cable splitter Extralink Splitter 1:4 FBT SC/APC 70:10:10:10 2.0mm 1m is compared against several alternative fiber optic splitters from Extralink. All products are designed for optical signal distribution in telecommunication networks, but they differ in splitting technology, power split ratios, output counts, connector types, and cable dimensions.
⚙️ The specifications comparison table below evaluates the splitting technology, split ratios, output channels, connector types, and cable characteristics for each product.
| Parameter | Extralink 1:4 FBT 70:10:10:10 (Main) | Extralink 1:4 PLC G657A | Extralink 1:8 PLC G657A | Extralink 1:8 PLC SC/UPC | Extralink 1:2 FBT 5:95 | Extralink 1:2 FBT 35:65 | Practical significance |
|---|---|---|---|---|---|---|---|
| Splitter type | FBT | PLC | PLC | PLC | FBT | FBT | FBT technology enables unequal power splitting, whereas PLC provides uniform distribution across all outputs. |
| Split ratio | 70:10:10:10 (uneven) | Uniform (1:4) | Uniform (1:8) | Uniform (1:8) | 5:95 (uneven) | 35:65 (uneven) | Uneven splitting suits branched trunk lines, while uniform splitting is ideal for equal subscriber distribution. |
| Outputs | 4 | 4 | 8 | 8 | 2 | 2 | The number of outputs determines the maximum amount of connected subscriber lines or branches. |
| Connector type | SC/APC | No connectors | No connectors | SC/UPC | SC/UPC | SC/UPC | Pre-terminated connectors speed up installation, while connectorless models are suited for splicing into panels. |
| Cable length | 1 m | 1.5 m | 1.5 m | 1.5 m | 1 m | 1 m | Longer pigtail cables provide more flexibility during routing inside distribution enclosures. |
◎ The suitability table below reviews usage scenarios, installation needs, and buyer profiles to help determine the most appropriate splitter option.
| Use case | Recommended product | Why |
|---|---|---|
| Uneven signal division into 4 lines with pre-installed SC/APC connectors | Cable splitter Extralink Splitter 1:4 FBT SC/APC 70:10:10:10 2.0mm 1m | Provides a precise unequal split ratio of 70:10:10:10 across four outputs with ready-to-use SC/APC interfaces. |
| Uniform 4-way signal distribution for fusion splicing in distribution panels | Optical PLC Splitter 1:4 Extralink SC/APC, 2.0 mm G657A... | Utilizes PLC technology with bend-insensitive G657A fiber and no pre-installed connectors for enclosure integration. |
| Expanding network connections to 8 subscribers with equal power division | Fiber optic PLC splitter 1:8 Extralink SC/APC... | Accommodates a higher density of connections utilizing an 1:8 PLC configuration. |
| Simple 2-way signal division with custom ratios like 5:95 or 35:65 | Cable splitter Extralink Splitter 1:2 FBT SC/UPC... | Designed for two-port split scenarios requiring specific unequal attenuation levels in a compact housing. |
The main product differs from the alternatives by offering a specific 70:10:10:10 uneven FBT split ratio across four SC/APC outputs, making it best suited for network setups where a strong main signal must be preserved while feeding three smaller branches. Alternative models are more appropriate when uniform signal splitting, a higher count of output ports, or connectorless fusion splicing is required.
