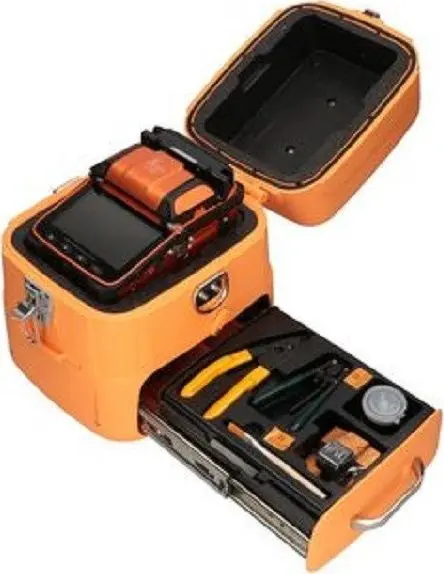

Fusion splicer Extralink AI-9

Name: Fusion splicer Extralink AI-9 7800mAh EX.16125
Brand: Extralink
SKU: 4817132
Price: 927.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Fusion splicer Extralink AI-9 7800mAh battery LED lamp LCD 5.1"

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Extralink AI-9 Fusion Splicer features a 5.1" LCD display, 7800mAh battery, and LED lamp. Designed for efficient fiber optic splicing, it offers durability with an aluminum housing and compact dimensions of 270mm width, 237mm depth, and 293mm height.

Available at price 927.99 €: 1 pcs.

Total available for order: 94 pcs.

Warranty: 2 Years

SKU: 4817132

Manufacturer: Extralink

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 7.38 € (Weight: 8.41 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 32.29 euros per month

Available for private customers at price 967.99 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Extralink AI-9 fusion splicer is a portable fiber optic splicing tool built for field technicians and installation teams. It integrates a 5.1" LCD for clear visualisation of fiber alignment and fusion results, an internal 7800mAh battery for extended operation, and an LED lamp to assist work in low-light conditions. The unit is housed in an aluminium body with compact external dimensions of 270mm (width) × 237mm (depth) × 293mm (height) and a weight of 7.1 kg, providing a balance of durability and portability for on-site splicing tasks.

Advantages

The aluminium housing offers enhanced mechanical protection and heat dissipation while keeping the device relatively lightweight for field use. The 5.1" LCD delivers a detailed view that simplifies fiber positioning and verification. A high-capacity 7800mAh battery supports longer job cycles without frequent recharging, and the integrated LED lamp improves visibility in poorly lit environments. Compact dimensions make the splicer easier to transport and store within standard technician kits.

Suitable for

Outdoor and indoor fiber optic installation and repair
Telecommunications network construction and maintenance
FTTx, LAN and data centre cabling projects
Field service operations where portability and battery operation are required

Key specifications

Display: 5.1" LCD for fusion monitoring and menu navigation
Battery capacity: 7800mAh for extended field operation
Illumination: Built-in LED lamp for working in low light
Housing: Aluminium for improved durability and heat dissipation
Dimensions: 270mm (W) × 237mm (D) × 293mm (H)
Weight: 7.1 kg
Colour: Orange

How to use

Prepare fibers by stripping, cleaning, and cleaving to the recommended lengths, then place them into the fiber holders and align using the on-screen guidance on the 5.1" LCD. Start the automatic alignment and fusion sequence according to the device menu. Monitor the fusion process on the LCD and confirm splice quality after the cycle completes. Use the LED lamp to illuminate the working area if needed. Recharge the internal battery between extended jobs or connect an external power source where supported.

Usage recommendations

For consistent splice results, clean fibers and cleaver blades regularly and operate the splicer on a stable, vibration-free surface. Keep the aluminium housing free from heavy impacts and store the unit in a protective case during transport. Monitor battery charge level before starting field assignments and use the LED lamp to improve visibility in dim conditions.

Specifications

Weight:: 7.1 kg
Product colour:: Orange

All features

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 5.1 "
Display type:: LCD
Heating time:: 15 s
Splicing time:: 6 s
Applicable fiber:: Multimode Fiber (MMF), Single Mode Fiber (SMF)
Cladding diameter (min):: 250 µm
Cladding diameter (max):: 900 µm

Weight & dimensions

Weight:: 7.1 kg
Height:: 293 mm
Width:: 270 mm
Depth:: 237 mm

Technical details

Product colour:: Orange
Housing material:: Aluminium

Hide Show all
