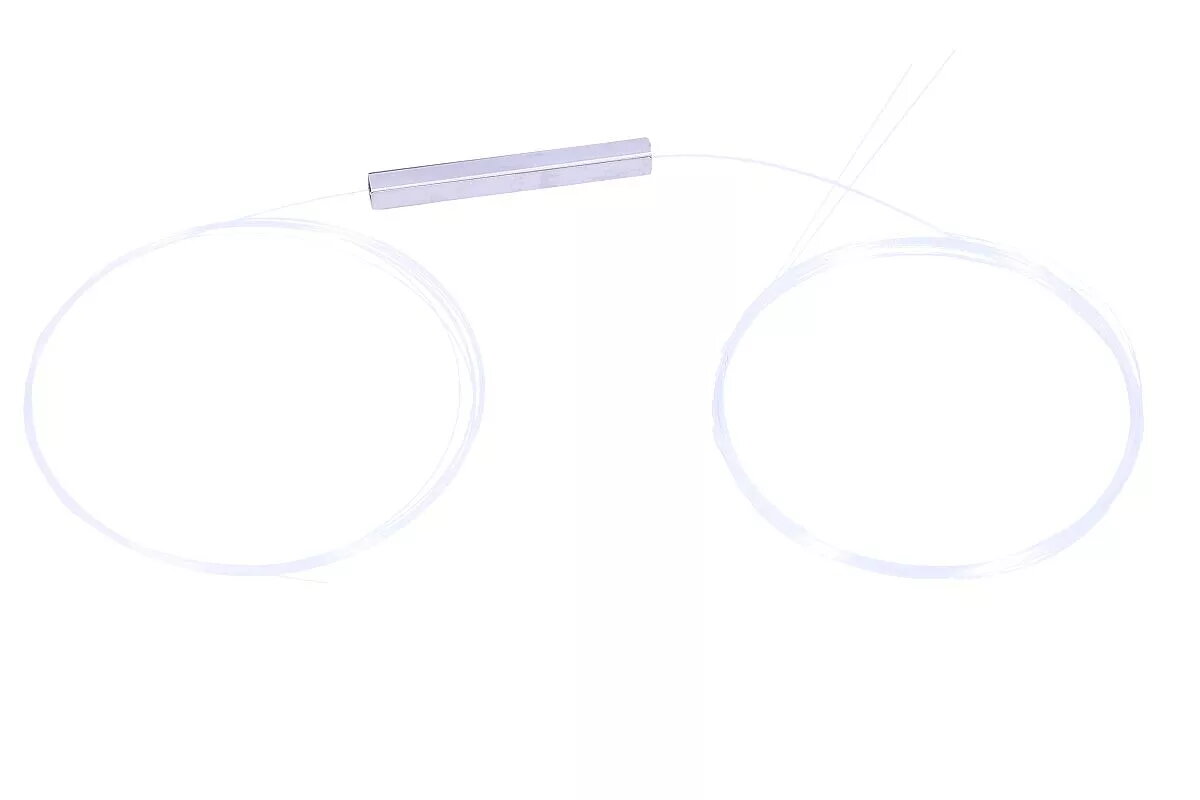

Extralink 1:2 PLC 250um Fiber Optic Cable Splitter without Connector
Short description
Product information
Description
The Extralink 1:2 PLC 250um Fiber Optic Cable Splitter without Connector is a specialized passive optical component engineered for splitting optical signals evenly in telecommunication networks and fiber optic installations. Housed in a durable steel tube and manufactured with a white polyvinyl chloride exterior, this splitter is designed to ensure reliable signal distribution and stable long-term performance in various networking environments. Its compact construction allows for seamless integration into existing infrastructure where space management and signal integrity are critical factors.
Advantages
This fiber optic splitter provides consistent and balanced signal splitting across its output ports, supporting efficient data transmission without active power requirements. The use of robust materials such as polyvinyl chloride and a protective steel tube housing offers adequate mechanical protection for internal fibers during installation and daily operation. The G.657.A1 fiber standard ensures enhanced bend insensitivity, which reduces signal loss even in tight routing spaces. Without pre-installed connectors, the unit offers maximum flexibility for technicians who require splicing to match specific deployment standards.
Suitable for
- FTTH and FTTP passive optical networks
- Telecommunication distribution boxes and splice trays
- Fiber optic signal management in local area networks
- Custom fiber installations requiring fusion splicing
When it may not be suitable
This device is not equipped with pre-terminated connectors, making it unsuitable for plug-and-play environments where fusion splicers or specialized fiber termination tools are unavailable. It is also not designed for outdoor deployment without an appropriate weatherproof enclosure, as it lacks outdoor-rated weather sealing.
Key specifications
- Fiber standard: G.657.A1
- Splitter configuration: 1x2
- Cable diameter: 0.25 mm
- Splitter case type: Steel tube
- Material: Polyvinyl chloride (PVC)
- Product colour: White
- Dimensions: 20 mm width, 150 mm depth, 305 mm height
How to use
Installation requires professional fiber optic handling and fusion splicing equipment. Strip the incoming and outgoing fiber cables carefully, clean the fiber ends, and align them according to standard optical splicing procedures. Splice the input fiber to the source line and the output fibers to the destination lines using a fusion splicer. Once the splices are complete, protect them with splice sleeves and secure the steel tube splitter body inside a designated splice tray, patch panel, or distribution enclosure.
What to consider before purchase
- Verify that your installation environment requires a bare fiber splitter without connectors
- Ensure compatibility with G.657.A1 fiber specifications in your network architecture
- Confirm the availability of fusion splicing tools and trained personnel for installation
- Check available space in your distribution boxes or splice trays for proper mounting
Usage recommendations: Always perform optical insertion loss testing using a power meter and light source after completing the installation to verify link performance. Handle the 0.25mm fibers with care to prevent micro-bends and signal degradation during routing inside enclosures.
- Type:
- Cable splitter
- Number of connectors:
- 3
Logistics data
- Customs product code (TARIC):
- 85447000
Other features
- Material:
- Polyvinyl Chloride (PVC)
- Connector(s):
- 3
Packaging data
- Package weight:
- 16000 g
- Package height:
- 400 mm
- Package depth:
- 600 mm
- Package width:
- 400 mm
Weight & dimensions
- Weight:
- 0.24 kg
- Height:
- 305 mm
- Depth:
- 150 mm
- Width:
- 20 mm
Features
- Country of origin:
- China
- Connector gender:
- No
- Product colour:
- White
