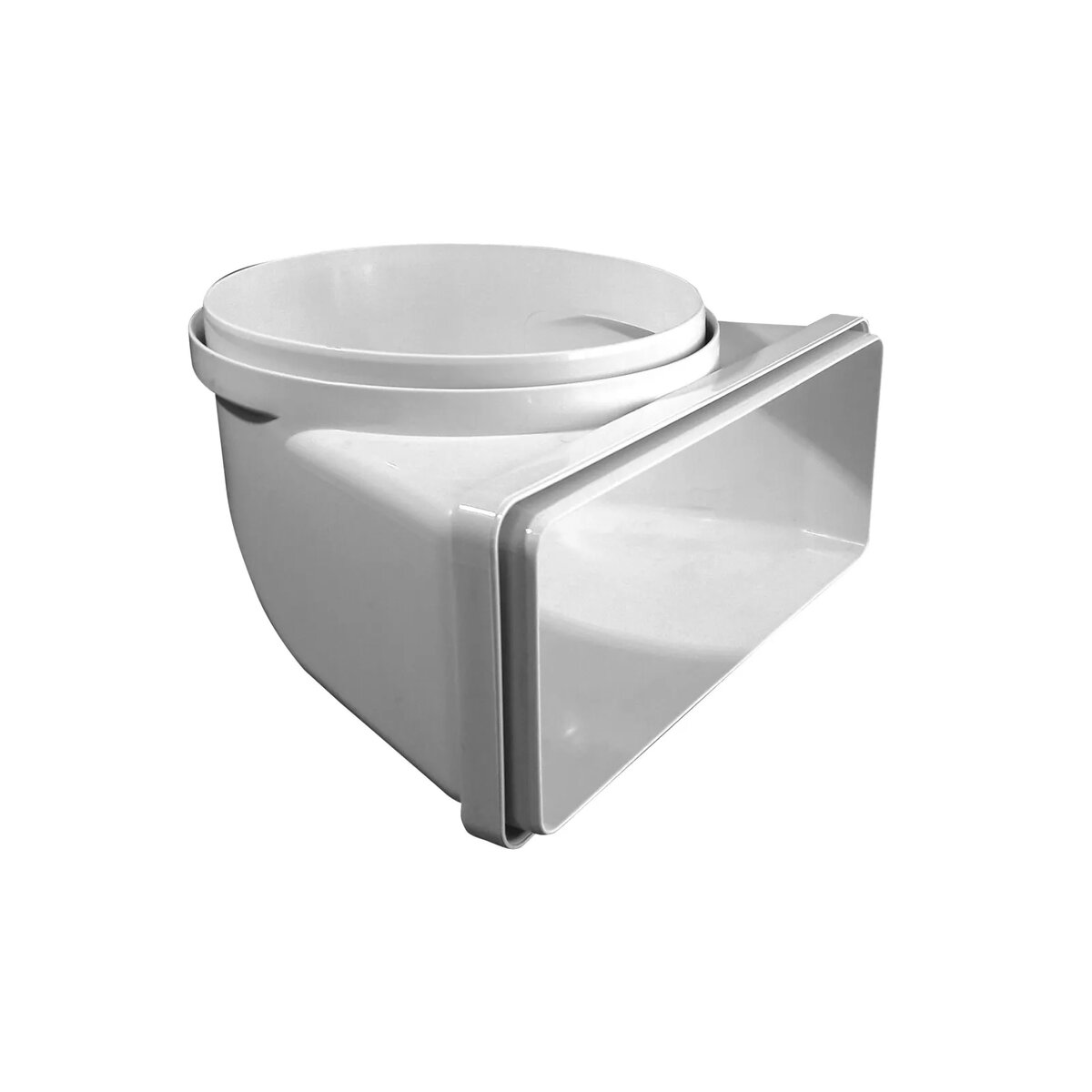

Cooker hood elbow FABER 112.0459.451 white — connection tube 220×90 mm to Ø150 mm

Connection elbow for cooker hoods by FABER that adapts a rectangular duct 220×90 mm to a round outlet Ø150 mm. The component is finished in white and is intended for ventilation and exhaust installations where a transition from a hood’s rectangular outlet to circular ducting is required. It is suitable for retrofit, replacement or new installations and provides a compact mechanical connection between different duct shapes.

Advantages

The elbow provides a precise dimensional transition from 220×90 mm to Ø150 mm, reducing the need for custom cutting or on-site fabrication. Its white finish matches many kitchen hoods and visible duct runs, and the shaped profile is designed to maintain airflow with minimal obstruction. Made for straightforward mechanical installation, it allows secure joining of rectangular hood outlets to standard round ventilation ducts.

Suitable for

• Converting a cooker hood rectangular outlet 220×90 mm to circular ducting Ø150 mm
• Retrofit or replacement of existing hood duct transitions
• New ventilation installations in kitchens requiring a shape conversion
• Situations where a compact elbow is needed to route exhaust air to round ducts

Key specifications

• Input profile: rectangular 220×90 mm
• Output profile: circular Ø150 mm
• Color/finish: white
• Material: durable sheet/formed metal or equivalent ventilation-grade material
• Function: ventilation/exhaust transition elbow for cooker hoods
• Mounting: designed for mechanical connection to rectangular hood outlet and round duct

How to use

Position the rectangular end of the elbow over the cooker hood outlet sized 220×90 mm and secure it according to the hood manufacturer’s mounting instructions, using screws, clamps or sealant as required. Align the round Ø150 mm end with the circular duct and fasten with an appropriate clamp or connection sleeve. Ensure joints are sealed to prevent air leakage and to maintain exhaust efficiency. Verify clearance and routing to avoid kinks or compression of the elbow that could restrict airflow.

Usage recommendations

Inspect the existing ductwork for compatibility before installation, confirm that the hood airflow capacity matches the duct diameter, and use appropriate seals or tape rated for ventilation to ensure airtight connections. Where local regulations apply, follow relevant building and ventilation codes during installation.
