Extraction tool Facom CR Series CR.D5PB — removal tool for pins and terminals

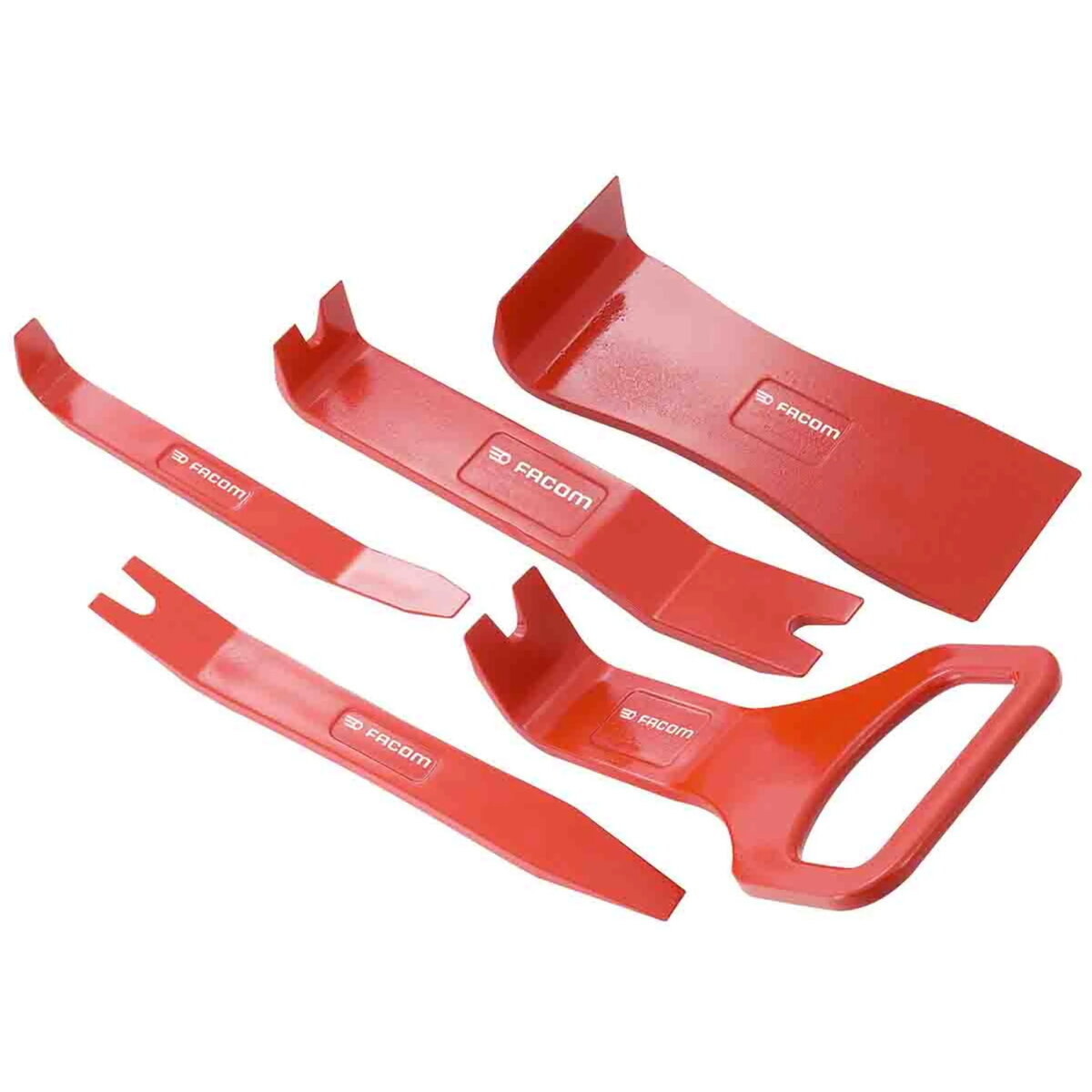

Facom Extraction Tool CR Series CR.D5PB is designed for removing pins, terminals and connectors from electrical housings and for unclipping plastic components such as dashboards, door panels, external trim and snap rings. The set includes five tools suited to different connector shapes and access conditions and is supplied in a blister pack for compact storage and easy identification.

Advantages

The five-piece set provides a range of extractor shapes to match various terminal designs, allowing controlled disengagement of contacts without bending or damaging pins and surrounding components. Made to Facom quality standards, the tools offer precision tip profiles for reliable access in confined spaces and reduce the risk of damage during removal and reassembly.

Suitable for

• Automotive electrical connector removal and terminal extraction
• Industrial and electronic connector maintenance
• Removing plastic trim, dashboard panels and snap rings

Key specifications

• Set composition: 5 extraction tools with varied tip shapes
• Application: pins, terminals, connectors and plastic trim removal
• Packaging: blister pack for compact storage

How to use

Select the extractor tip that matches the terminal or terminal housing. Insert the tool to engage the locking feature of the pin or connector and gently pull or depress as required to release the contact. For plastic trim or panels, insert the appropriate blade to unclip fasteners and work along edges to avoid concentrated force on a single point. Inspect the contact and housing after removal and replace any damaged components before reassembly.

Usage recommendations

Use steady, controlled force and the correct extractor shape for the terminal type. Avoid levering against fragile plastics; if resistance is high, reassess tool choice or access angle to prevent damage to connectors or surrounding components.
