header-product FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm HSSE TiCN countersink
47.49 €

FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm HSSE TiCN countersink

FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm HSSE TiCN countersink

{{email}}
You keep track of price changes

FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm HSSE TiCN countersink

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

FANAR POGLEBIACZ DIN 335-C is a 90° countersink with a 20.5 mm diameter made from HSSE and coated with TiCN. Designed for creating chamfers and deburring holes to DIN 335-C standards, it suits metalworking and fabrication tasks where precision countersinking is required. Use with drills or machining centers for chamfering and preparing screw seats.
Available for order: 23 pcs.
Warranty: 2 Years
SKU: 11820979
Manufacturer: FANAR
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm HSSE TiCN countersink is a precision tool engineered for creating clean chamfers and deburring holes to DIN 335-C specifications. Made from high-speed steel with enhanced cobalt (HSSE) and finished with a titanium carbonitride (TiCN) coating, this 90° countersink provides improved wear resistance and a smooth cutting performance for metalworking applications. Its 20.5 mm diameter is suitable for preparing screw seats and chamfering a range of hole sizes in machining and fabrication environments.

Advantages

The HSSE substrate offers higher heat resistance and toughness compared with standard high-speed steel, reducing the risk of edge chipping during demanding operations. The TiCN coating decreases friction and extends the tool life by providing surface hardness and improved corrosion resistance. The 90° angle produces consistent chamfer geometry for reliable seating of fasteners, and the tool’s construction supports use in drills, drill presses, and machining centers for repeatable results.

Suitable for

  • Chamfering holes to prepare screw seats in metal components
  • Deburring drilled holes in steel, stainless steel and non-ferrous metals
  • Manual drilling and CNC machining centers
  • General fabrication, maintenance and assembly operations requiring precise countersinks

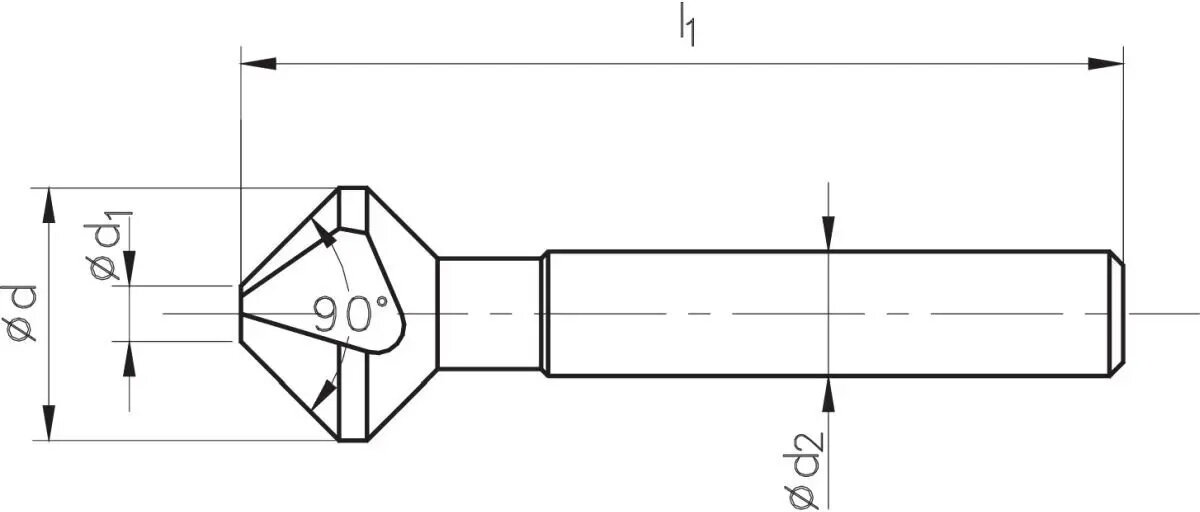

Key specifications

  • Angle: 90°
  • Diameter: 20.5 mm
  • Material: HSSE (high-speed steel with cobalt)
  • Coating: TiCN (titanium carbonitride)
  • Intended standard: DIN 335-C countersink geometry

How to use

Secure the countersink in an appropriate chuck or tool holder ensuring concentric mounting. Align the tool with the prepared hole and apply steady feed at recommended speeds for the workpiece material; lower speeds and moderate feeds are suggested for stainless steels, while higher speeds are acceptable for softer alloys. Use cutting fluid when machining steels to improve surface finish and tool life. Withdraw the tool periodically to clear chips and inspect the chamfer until the required depth and seating angle are achieved.

Usage recommendations

For best results, match cutting speed and feed to the workpiece material: reduce speed for stainless steel and increase for aluminum or soft copper alloys. Maintain rigidity in the setup to avoid chatter and uneven chamfers. Replace or recondition the countersink when wear affects chamfer quality to ensure consistent screw seating and assembly fit.

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the FANAR POGLEBIACZ DIN 335-C 90° x 20.5 mm cost, and is it available for purchase?

The price is 47.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 23 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 13.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All FANAR products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized FANAR service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.
