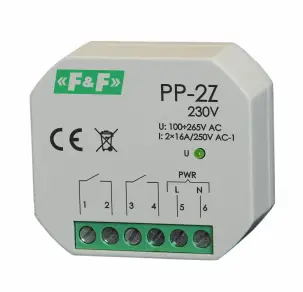

Electromagnetic Relay FF PP-2Z 230V 2 Form C (2Z) 16A for Switching Circuits

FF PP-2Z 230V is an electromechanical relay with a 230 V coil and two changeover contacts (2 Form C) rated for 16 A. It is designed for switching and control tasks in electrical circuits where mains-level loads must be managed reliably. The relay provides galvanic separation between coil and contacts and is suitable for use in control cabinets, automation panels and various electrical devices that require mechanical contact switching.

Advantages

The relay offers two isolated changeover contacts allowing independent control of two circuits with a single coil, supporting both normally open and normally closed wiring. With a rated contact current of 16 A, it handles a wide range of AC mains loads. The electromechanical design provides clear on/off states and simple diagnostic checks, while the standard 230 V coil makes it compatible with common supply voltages in many installations.

Suitable for

• Control cabinets and automation panels
• Machine control and industrial switching
• Lighting circuits and mains-level load switching
• Signal switching and interlocking circuits

Key specifications

• Coil voltage: 230 V AC
• Contact configuration: 2 changeover contacts (2 Form C)
• Contact rating: 16 A (AC mains-compatible)
• Relay type: electromechanical (electromagnetic)
• Typical mounting: panel or DIN rail-compatible socket (verify with socket type before installation)

How to use

Install the relay in a compatible socket or mounting base according to the panel layout and wiring diagram. Verify that the supply voltage to the coil is 230 V AC and that the load connected to the contacts does not exceed the 16 A rating. Connect control circuit wires to the coil terminals and load wires to the changeover contact terminals, observing correct polarity and earthing practices where applicable. Before energising, check mechanical clearance, secure mounting, and tightness of terminal connections. Perform an initial functional test at no-load or reduced load to confirm correct switching action.

Usage recommendations

Use appropriate protective devices such as fuses or circuit breakers on the load side, and ensure the relay is used within its specified voltage and current limits. For frequent switching applications, verify contact life expectancy in the manufacturer documentation and consider using a relay with higher endurance or a solid-state alternative if required. Maintain accessible mounting for inspection and replace the relay if contact wear or unreliable operation is observed.
