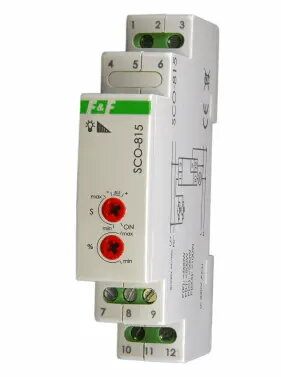

FF SCO-815 Universal Dimmer for R, L, C, and ESL Loads, 500W, 230V AC, DIN Rail Mount

The FF SCO-815 is a universal dimmer engineered to provide precise control over light intensity for a wide range of lighting technologies. Designed for seamless integration into electrical cabinets, this 1-module device mounts directly onto a standard DIN rail and operates on a 230V AC power supply. It is compatible with resistive, inductive, and capacitive loads, as well as energy-saving lamps, offering a versatile solution for managing illumination in various environments.

Advantages

The primary benefit of this universal dimmer is its broad compatibility with different lamp types, including R, L, C, and ESL loads, which simplifies inventory and installation requirements. Its compact 1-module design ensures efficient use of space within distribution boards. The device provides smooth and reliable dimming performance, allowing users to create desired lighting atmospheres while maintaining energy efficiency. The robust construction ensures long-term operational stability in both residential and commercial lighting control systems.

Suitable for

• Residential lighting control for living rooms and bedrooms
• Commercial office lighting management
• Adjustable illumination in hospitality settings
• Integration into existing DIN rail electrical systems

When it may not be suitable

This device is not intended for use with non-dimmable LED lamps or other light sources that do not support phase-cut dimming technology. It should not be used in circuits exceeding the maximum power rating of 500W.

Key specifications

• Supply voltage: 230V AC
• Maximum load: 500W
• Mounting: DIN rail (TH-35)
• Module width: 1 module (18 mm)
• Supported load types: R, L, C, and ESL

How to use

Installation must be performed by a qualified electrician in accordance with local safety regulations. The dimmer is mounted on a standard 35mm DIN rail inside an electrical distribution board. Connect the phase and neutral wires according to the provided wiring diagram. Once installed, the device allows for the adjustment of light intensity through the connected control interface. Ensure that the total power of the connected lamps does not exceed the specified maximum load capacity to prevent overheating or damage to the unit.

What to consider before purchase

• Verify that your light sources are explicitly marked as dimmable
• Ensure the total wattage of the lighting circuit is below 500W
• Check available space on your DIN rail
• Confirm compatibility with your existing electrical installation

Usage recommendations

Always verify the compatibility of your specific lamp models with universal dimmers before installation to ensure flicker-free operation and longevity of the light sources.
