Drill bit set Fischer 553210 7 pcs for Rotary hammer Brick Concrete Natural stone

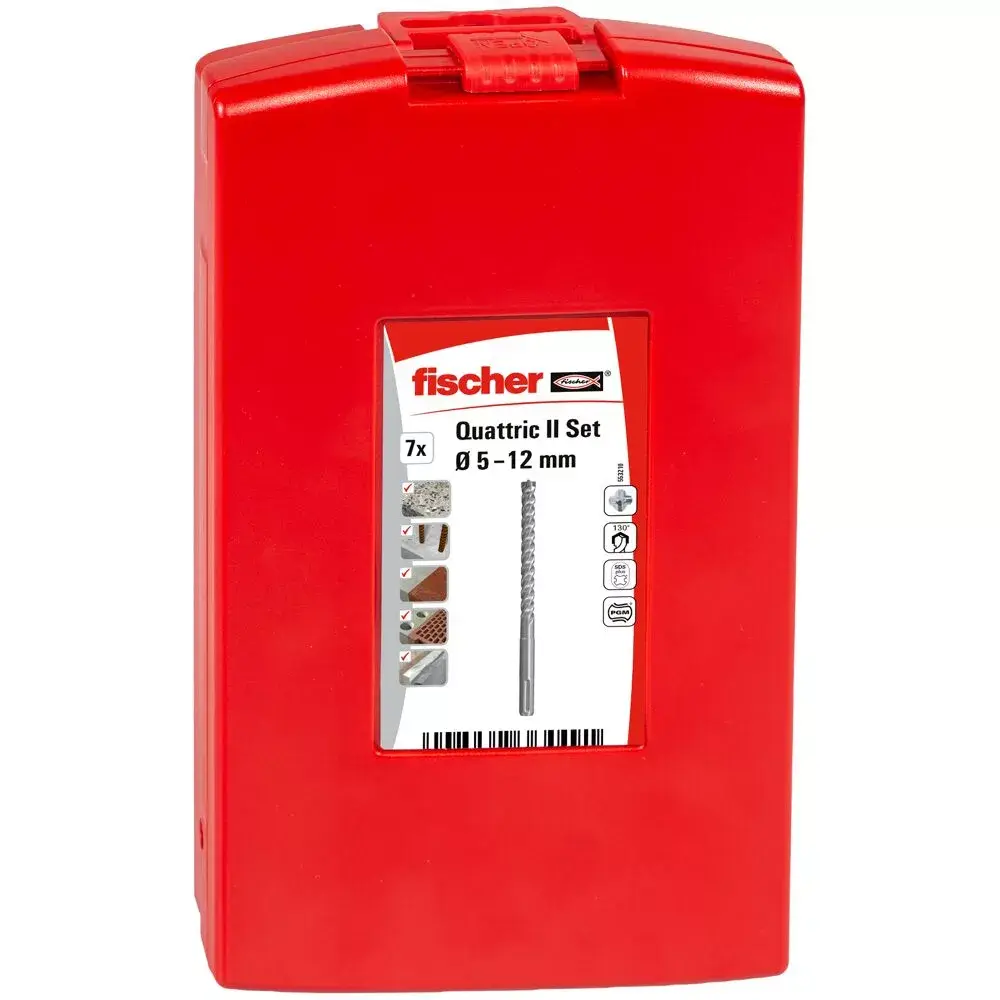

fischer hammer drill Quattric II set (7 pcs) for rotary hammers, suitable for drilling into brick, concrete and natural stone. The set contains drill bits in sizes 5, 6 (2 pcs), 8 (2 pcs), 10 and 12 mm with an SDS‑Plus adapter. A carbide head (on sizes up to 10 mm) and a two‑piece spiral design provide faster drilling progress and extended service life. Reinforcement chamfers reduce the risk of jamming when drilling through rebar and the centring tip enables precise positioning. The set is supplied in a robust plastic box and is suitable for approval‑compliant drill holes in accordance with PGM.

Advantages

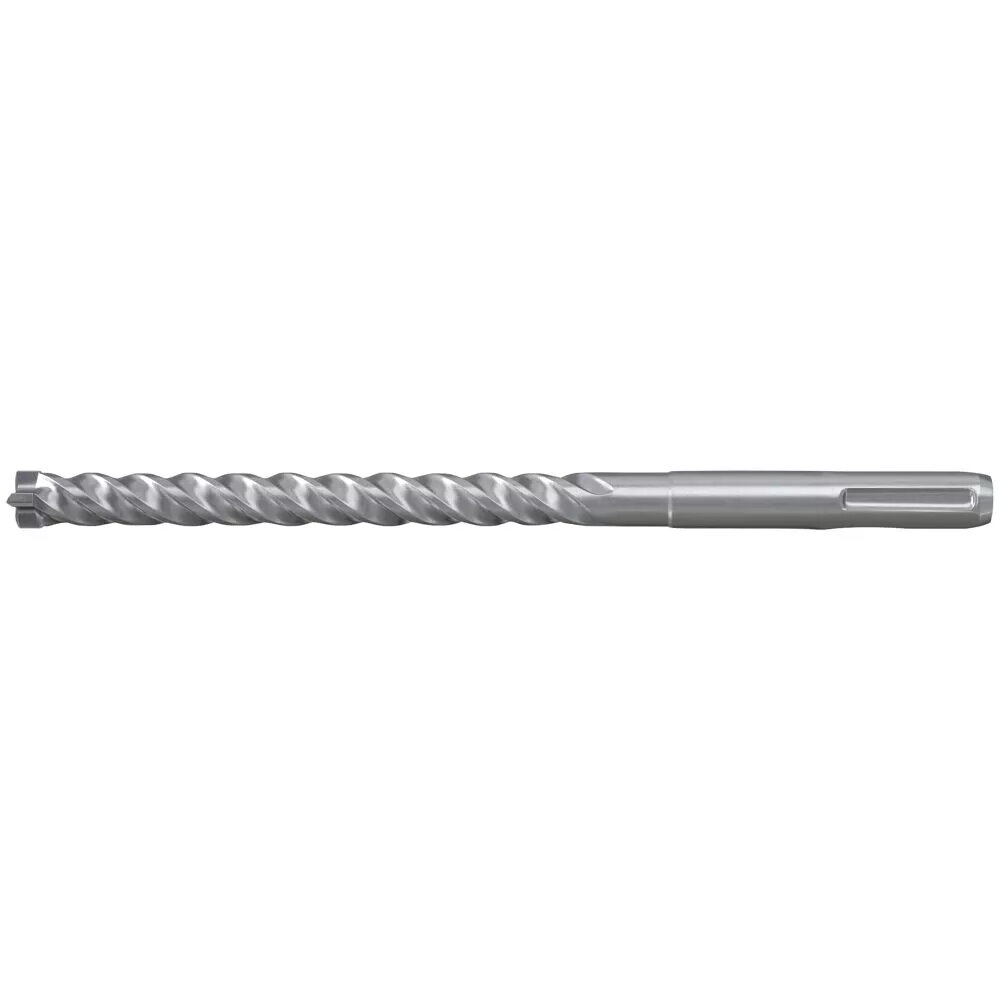

The Quattric II drill bits feature a carbide head on sizes up to 10 mm, massive main cutting edges and power shoulders for improved breakup performance in concrete. The two‑piece spiral promotes quick drilling progress and increased lifetime, while reinforcement chamfers prevent jamming in reinforcement. A wear mark indicates the wear limit in accordance with PGM and the centring tip simplifies initial positioning. The set includes common dimensions in one kit and is delivered in a robust plastic box suitable for construction site use.

Suitable for

• Drilling into brick
• Drilling into concrete
• Drilling into natural stone
• Rotary hammer (SDS‑Plus) applications

Key specifications

• Brand: FISCHER
• MPN: 553210
• EAN: 4048962364491

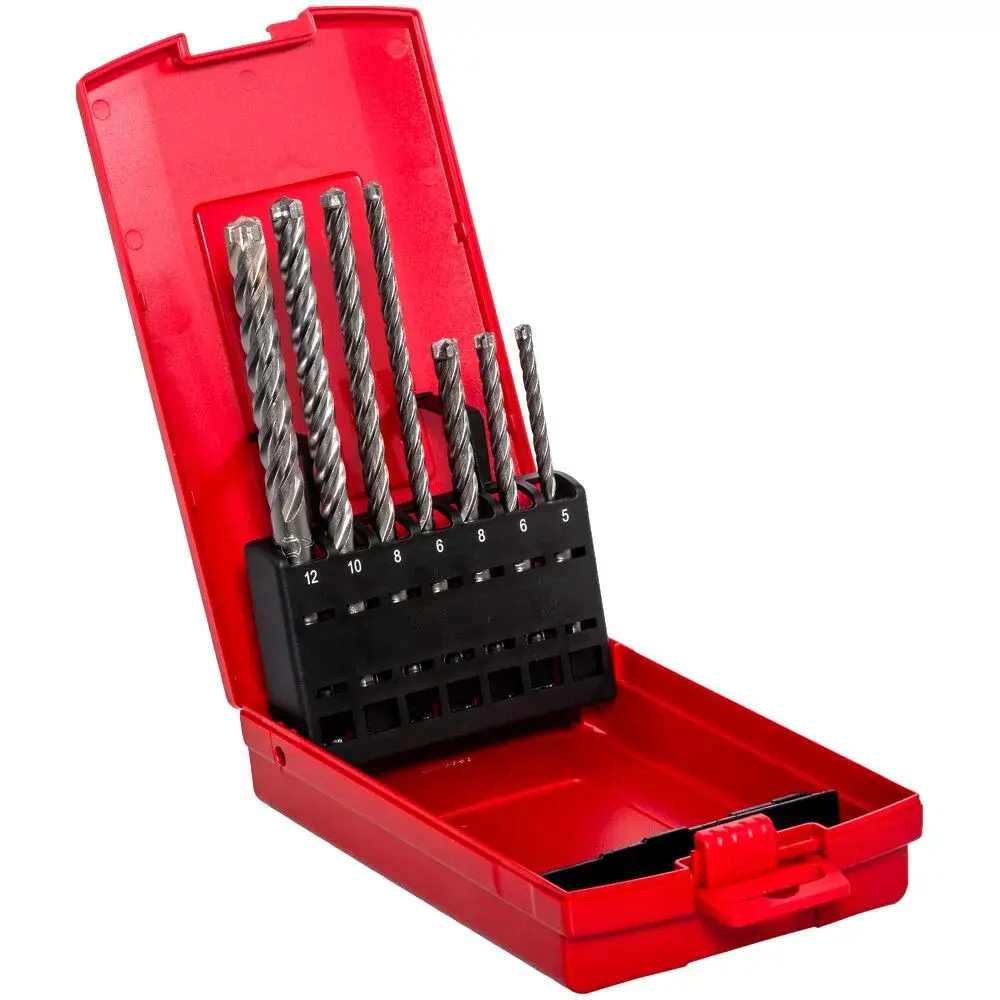

• Set contents: 7 pcs (5 mm, 6 mm x2, 8 mm x2, 10 mm, 12 mm)
• Shank: SDS‑Plus
• Suitable materials: brick, concrete, natural stone
• Carbide head: up to ø 10 mm

How to use

Select the appropriate drill bit size for the required hole diameter, insert the SDS‑Plus shank into the rotary hammer according to the tool manufacturer’s instructions and secure it. Position the centring tip on the marked spot, apply steady pressure and start drilling at low speed to establish the hole, then continue with the recommended hammering/drilling setting. Withdraw the bit occasionally to clear debris and avoid overheating. Observe the wear mark to determine when the bit has reached its service limit in accordance with PGM.

Usage recommendations

Use appropriate personal protective equipment (safety glasses, gloves, hearing protection) and a suitable rotary hammer rated for SDS‑Plus bits. For reinforced concrete, start with a smaller diameter pilot hole if required and avoid excessive side pressure on the bit to reduce risk of breakage. Store the bits in the supplied plastic box to protect the carbide tips.
