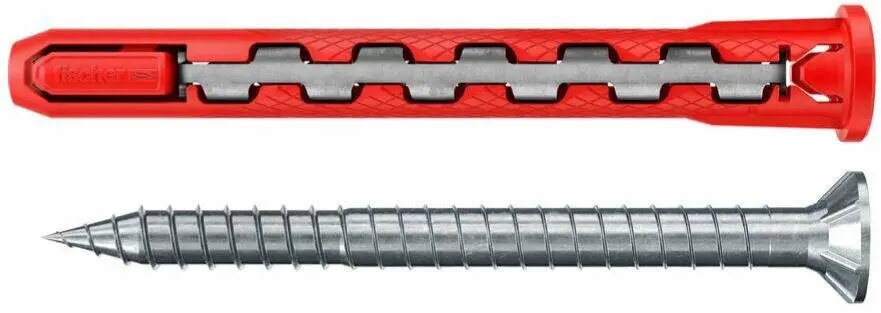

FISCHER Anchor Fischer HybridPower 10x90 T K 577393 — steel material

FISCHER Anchor HybridPower 10x90 T K is a mechanical anchor designed for secure fastening in solid substrates. Engineered for use with steel components, this anchor provides a reliable connection between fixtures and concrete or other solid bases. The 10x90 designation refers to its nominal diameter and length, giving a compact yet strong solution for structural and installation tasks where a steel-compatible fastener is required.

Advantages

The HybridPower design combines proven expansion principles with material compatibility for steel fittings, offering consistent load transfer and dependable pull-out resistance in solid masonry and concrete. Its geometry and surface treatment ensure good contact and stability when installed according to manufacturer's recommendations. The anchor's dimensions and mechanical properties make it suitable for medium to heavy-duty applications while remaining easy to handle and position during installation.

Suitable for

• Fixing steel plates and brackets to concrete
• Mounting structural supports and handrails
• Installation of cable trays and service ducts
• Anchoring machinery baseplates and equipment
• General installation work in solid substrates

Key specifications

• Nominal diameter: 10 mm
• Length: 90 mm
• Material compatibility: intended for use with steel components
• Anchor type: mechanical expansion anchor (HybridPower design)
• Suitable base materials: solid concrete and other solid masonry

How to use

Select a proper drill bit for the anchor diameter and drill a hole in the solid substrate to the recommended depth. Clean the drilled hole thoroughly of dust and debris before inserting the anchor. Insert the anchor through the fixture into the hole and tighten the screw or nut to the specified torque to activate the expansion mechanism. Ensure the fixture is held in the correct position while tightening and verify the anchor is seated and engaged correctly. Follow applicable standards and site requirements for spacing, edge distances and load orientation.

Usage recommendations

Use the anchor only in approved base materials and follow the specified installation torque and embedment depth. Allow for correct spacing and edge distances to avoid substrate cracking. For load-bearing or safety-critical applications, consult structural documentation or a qualified engineer to confirm suitability and loading calculations.
