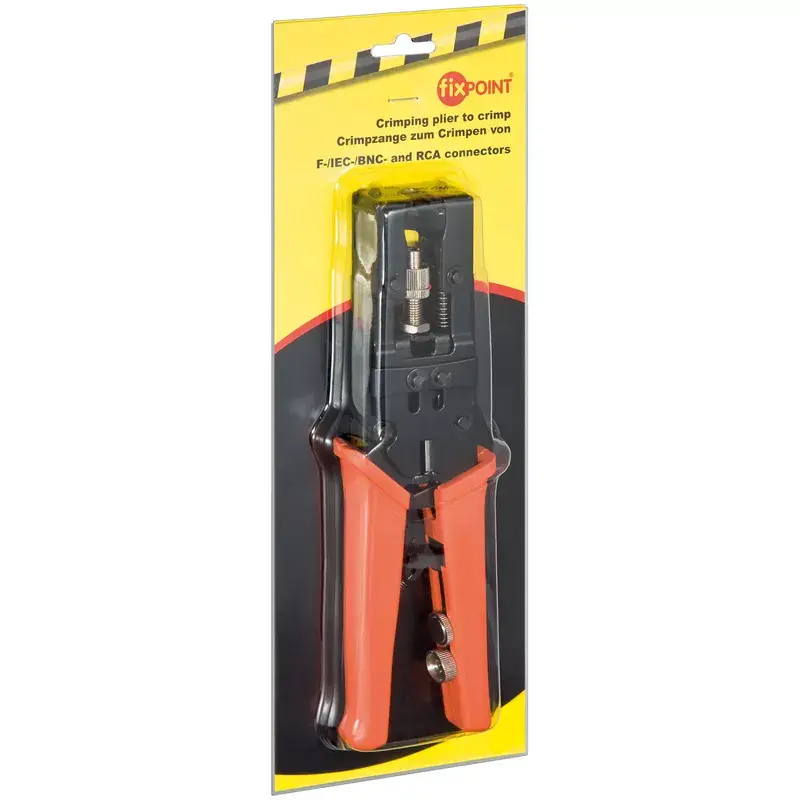

Crimping tool Fixpoint 77268 — hand cable crimper, 223 mm length, 65 mm width, 22 mm height, black/orange

Fixpoint 77268 is a hand-operated cable crimper designed for mechanical crimping of electrical connectors and terminals, with a compact form factor suited for both field and workshop use. The tool measures 223 mm in length, 65 mm in width and 22 mm in height, and is finished in black and orange. It is intended for multi-purpose professional crimping of waterproof F/IEC, BNC and RCA connectors and includes three different fittings stored within the handle for quick access. The crimper is suitable for use on a range of coaxial cable types and compatible connector series used in satellite and broadcast installations.

Advantages

The Fixpoint 77268 combines a compact, hand-held design with built-in interchangeable fittings, enabling fast changes between connector types without separate adapters. Its dimensions and colour coding support easy handling and visibility during on-site work. The integrated fittings and manual operation make it a reliable choice where electric or pneumatic tools are impractical. The tool’s construction supports crimping of both insulated and non-insulated terminals and is optimized for a selection of common coaxial cable types.

Suitable for

• Crimping waterproof F/IEC connectors on coaxial cables
• Terminating BNC connectors for video and RF applications
• Crimping RCA connectors for audio and low-frequency signal cables
• Field and workshop installation of satellite and broadcast coaxial lines
• Working with RG-59 (4C) and RG-6 (5C) coaxial cable types and compatible wentronic coaxial series

Key specifications

• Overall length: 223 mm
• Overall width: 65 mm
• Overall height: 22 mm
• Colour: black and orange
• Manual hand crimper with three built-in fittings for F/IEC, BNC and RCA connectors
• Suitable for RG-59 (4C) and RG-6 (5C) coaxial cables and specified wentronic coaxial connector series

How to use

Select the fitting required for the connector type from the fittings stored in the handle and secure it in the crimping head according to the tool’s guidance. Prepare the cable by stripping the outer jacket, braid and dielectric to the appropriate lengths for the chosen connector, insert the connector onto the cable, then position the connector in the crimping die. Squeeze the handles evenly until the crimp cycle is complete and the connector is firmly attached. Verify the mechanical integrity and electrical continuity of the connection after crimping.

Usage recommendations

Use the tool with the specified cable types (RG-59, RG-6 and compatible wentronic series) and manufacturer-recommended connector dimensions. Keep fittings clean and free of debris, store the tool in a dry place when not in use, and perform visual checks on the crimped joints and tool wear to ensure consistent results during repeated field or workshop operations.
