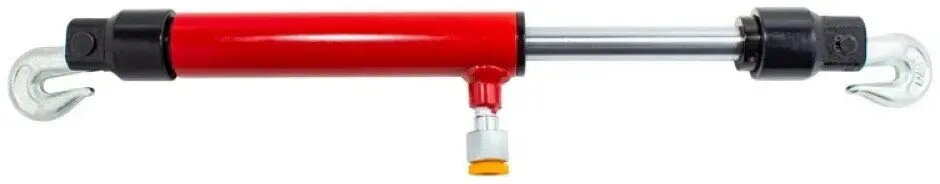

Hydraulic Double-Acting Cylinder Forsage F-0202 — 2 t, piston stroke 120 mm, total length 575 mm

Double-acting hydraulic cylinder Forsage F-0202 with 2 t capacity, 120 mm piston stroke and 575 mm total length provides reversible linear actuation for a variety of hydraulic systems. The cylinder is designed to deliver controlled push and pull force in compact installations where reliable, bidirectional movement is required. Its construction suits workshop presses, vehicle repair rigs, jacks and clamping fixtures that need a durable, compact actuator with a moderate stroke and clear load rating.

Advantages

This double-acting cylinder offers bi-directional operation, allowing both extension and retraction under hydraulic pressure for controlled movement. The 2-ton rated capacity combines with a 120 mm piston stroke to give a balance of force and travel suitable for many repair and assembly tasks. A compact total length makes it easier to integrate into confined spaces, while the robust mechanical design supports repeated cycles in workshop environments. The product is compatible with standard hydraulic systems and fittings used in mobile and stationary equipment.

Suitable for

• Workshop hydraulic presses for forming, straightening and pressing operations
• Vehicle repair and bodywork applications requiring pushing or pulling forces
• Lifting, positioning and hold-down tasks in maintenance and assembly
• Clamping fixtures and jigs where reversible actuation is needed

Key specifications

• Rated capacity: 2 tonnes (push/pull)
• Piston stroke: 120 mm
• Total length (retracted): 575 mm
• Double-acting operation for extension and retraction under hydraulic pressure
• Compact form factor suitable for confined installations
• Intended for integration with hydraulic systems for workshop and vehicle service use

How to use

Install the cylinder into the hydraulic circuit following the equipment manufacturer's instructions and ensuring correct port connections for double-acting operation. Secure mounting points at both ends to handle axial loads during extension and retraction. Connect the cylinder to a hydraulic pump and control valve that provide appropriate pressure and flow for the 2 t capacity and desired speed. Operate the control valve to extend and retract the piston as required, monitoring for leaks and abnormal noises. Perform routine checks of seals and fittings and follow standard safety procedures when working with pressurised hydraulic fluid.

Usage recommendations

Use hydraulic fluid and system pressures within the limits recommended for workshop hydraulic equipment; avoid exceeding rated capacity. Regularly inspect seals, connections and mounting hardware, keep the cylinder clean and protect it from impact and corrosive environments to extend service life.
