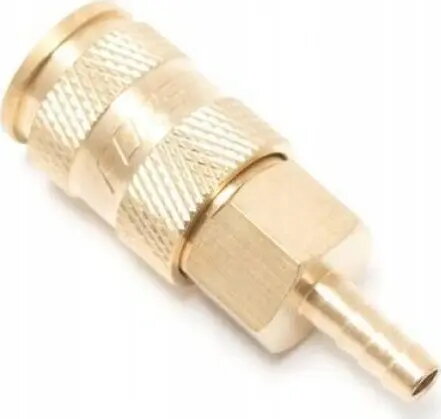

Pneumatic Quick Coupler with Valve 'Herringbone' 12 mm Brass — Forsage F-BSE1-5SH

Forsage pneumatic quick coupler F-BSE1-5SH is a 12 mm brass connector with an integrated non-return 'herringbone' valve designed for pneumatic systems. The coupler provides rapid and secure connection and disconnection of air lines while preventing backflow when disconnected. Constructed from brass, it is intended for use with workshop tools, compressors and industrial pneumatic circuits that require a durable metal fitting and reliable sealing.

Advantages

The brass construction offers corrosion resistance and mechanical strength suitable for repeated coupling cycles. The integrated non-return 'herringbone' valve prevents air from escaping or flowing back when the mating half is removed, simplifying maintenance and line changes. A 12 mm diameter ensures compatibility with common air hoses and fittings used in industrial and workshop environments, and the compact design allows use in confined spaces.

Suitable for

• Compressed air lines in workshops and garages
• Connection to portable pneumatic tools such as impact wrenches and air drills
• Compressed air supply from shop compressors to distribution manifolds
• Industrial pneumatic circuits requiring brass fittings with non-return valve

Key specifications

• Material: brass body and internal components where specified
• Nominal connection diameter: 12 mm
• Integrated non-return ('herringbone') valve to prevent backflow
• Type: pneumatic quick coupler for male/female hose connections
• Suitable for compressed air applications and general pneumatic use

How to use

Ensure the air supply is depressurized before installing or removing the coupler. Push the mating connector into the coupler until it clicks to form a secure seal; the non-return valve will close when disconnected to prevent air loss. Inspect the sealing surfaces for debris and verify hose clamps or fittings are tightened according to the hose manufacturer’s instructions. Periodically check for wear, leaks or corrosion and replace the coupler if sealing performance degrades.

Usage recommendations

Use the coupler with compressed air only and within the pressure limits specified by your pneumatic system. Avoid exposure to aggressive chemicals that can attack brass alloys. For reliable operation, maintain the coupler with regular inspections and replace if threads or sealing faces are damaged.
