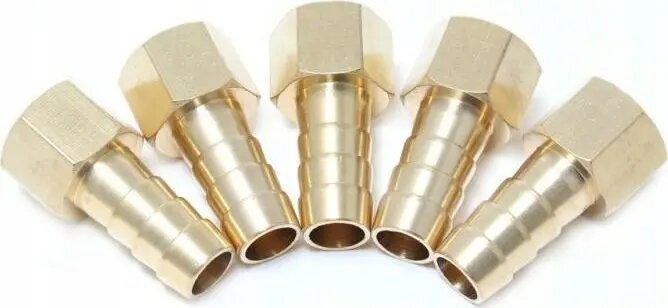

Pneumatic hose fitting Forsage female threaded 1/4" jigsaw 8 mm set of 5

Set of 5 Forsage pneumatic hose fittings with female 1/4" thread and 8 mm jigsaw (serrated) hose connection. These fittings are designed to join, extend or repair 8 mm pneumatic tubing in compressed air systems and provide a female threaded port for secure connection to male-threaded components such as couplers, valves or tools. The jigsaw (serrated) hose tail ensures improved grip on flexible air hose when clamped with a hose clamp.

Advantages

The fittings combine a standardized female 1/4" threaded connection with an 8 mm serrated hose tail to deliver a reliable mechanical and pneumatic seal when used with suitable clamps. Supplied as a set of five, they allow quick replacement or parallel installations. The metal construction offers durability for workshop and industrial environments and resists deformation under typical pneumatic line pressures.

Suitable for

• Repairing or replacing damaged sections of 8 mm pneumatic hose
• Connecting flexible 8 mm tubing to male-threaded couplers, valves or air tools
• Expanding or re-routing compressed air lines in workshops and garages
• Small industrial pneumatic installations and maintenance tasks

Key specifications

• Thread type: female 1/4" (standard pipe thread for pneumatic fittings)
• Hose connection: 8 mm jigsaw / serrated tail for secure clamping
• Quantity: set of 5 identical fittings
• Material: metal construction suitable for pneumatic use
• Application: compressible air systems with flexible 8 mm tubing

How to use

Cut the hose end square and slide a suitable hose clamp onto the 8 mm tube. Insert the serrated hose tail fully into the tubing until it seats against the fitting shoulder. Position the clamp over the serrated section and tighten to the manufacturer's recommended torque to ensure an airtight connection. Thread the female 1/4" port onto the corresponding male thread and use appropriate sealing tape or sealant on the male thread if required by the system. Inspect for leaks after pressurizing the line.

Usage recommendations

Use matching 8 mm pneumatic hose and a compatible clamp rated for compressed air; avoid exceeding the recommended working pressure of the hose or the system components. For permanent installations or high-vibration environments consider soldered, flared or crimped alternatives and follow local safety standards for compressed air systems.
