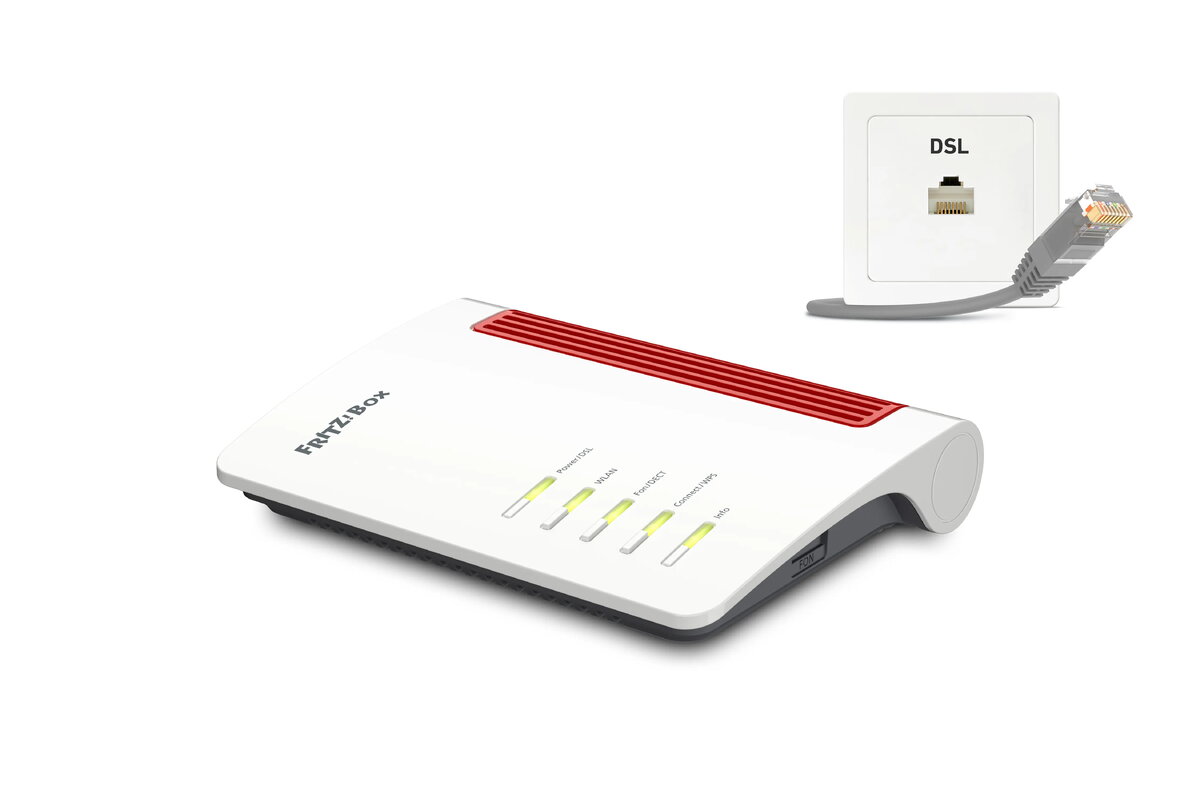

Router FRITZ! Box 7530 WLAN AX – FRITZ 7530 dual-band Wi‑Fi 6 router with DECT and Gigabit LAN

FRITZ 7530 AX is a tabletop router that combines Wi‑Fi 6 (802.11ax) dual‑band wireless, Gigabit Ethernet and integrated telephony functions for home and small office networks. It supports DSL and VDSL including 35b supervectoring and can be used behind cable or fiber modems or with 3G/4G USB modems. The router delivers a maximum WLAN throughput of up to 2400 Mbps across 2.4 GHz and 5 GHz bands, offers four Gigabit LAN ports and a USB port for networked storage and peripherals, and includes modern security with WPA2/WPA3 and integrated VPN (IPSec and WireGuard) support.

Advantages

The device provides next‑generation Wi‑Fi 6 performance for multiple simultaneous devices, improved network efficiency, and backward compatibility with Wi‑Fi 5/4 devices. Mesh capability allows the FRITZ 7530 AX to operate with other FRITZ devices to extend coverage and optimize traffic across the home or office. Built‑in telephony features include a DECT base for up to six cordless handsets, analog ports for telephones and fax, answering machine with voice‑to‑mail, and wideband (HD) telephony. Regular FRITZ!OS updates add features and security enhancements.

Suitable for

• Homes and small offices requiring reliable dual‑band Wi‑Fi 6 coverage
• Users with multiple concurrent wireless devices such as smartphones, tablets, smart TVs and game consoles
• Environments needing integrated telephony (DECT, analog, IP) and voicemail/fax handling
• Networks where VPN access or secure remote connections are required
• Setups that benefit from mesh Wi‑Fi expansion and central device management

Key specifications

• Wireless standard: Wi‑Fi 6 (802.11ax) dual‑band (2.4 GHz / 5 GHz), combined up to 2400 Mbps
• DSL compatibility: ADSL, ADSL2+, VDSL including 35b supervectoring, supports DSL speeds up to 300 Mbps
• Ethernet: 4 x Gigabit LAN ports; Ethernet WAN operation supported
• USB: 1 x USB port for storage and peripheral sharing
• Telephony: Integrated telephone system with DECT base (up to 6 handsets), analog ports, fax support, answering machine with email forwarding
• Security: WPA2/WPA3 Wi‑Fi encryption, preconfigured network keys, integrated firewall, guest network
• VPN: IPSec and WireGuard support for encrypted remote connections
• Software: FRITZ!OS with auto‑update, MyFRITZ! remote access, media server and NAS functionality
• Smart Home: Support for DECT ULE / HAN FUN and FRITZ!DECT devices
• Form factor: Tabletop router; available in grey, red and white color variants

How to use

Connect the FRITZ 7530 AX to your DSL line or to an existing modem via Ethernet and power it up. Use the web‑based FRITZ!OS setup wizard or the FRITZ!Apps to complete initial configuration: set up Internet access, create Wi‑Fi network names and keys, and register DECT handsets if needed. Attach USB storage or a printer to the USB port for network sharing and enable the media server or FRITZ!NAS in the software. Configure VPN connections and telephony settings directly in the FRITZ!OS interface.

Usage recommendations

Place the router centrally in the living or office area and avoid large obstacles for optimal Wi‑Fi coverage; enable Mesh with additional FRITZ devices to extend signal into distant rooms. Keep FRITZ!OS auto‑update enabled to receive security and feature updates. Use WPA3 where supported for maximum wireless security and configure a separate guest network for visitors to restrict access to your main network.
