Router FRITZ! Box 4690 — FRITZ

Name: Router FRITZ! Box 4690 — 20003082
Brand: FRITZ
SKU: 11693687
Price: 334.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

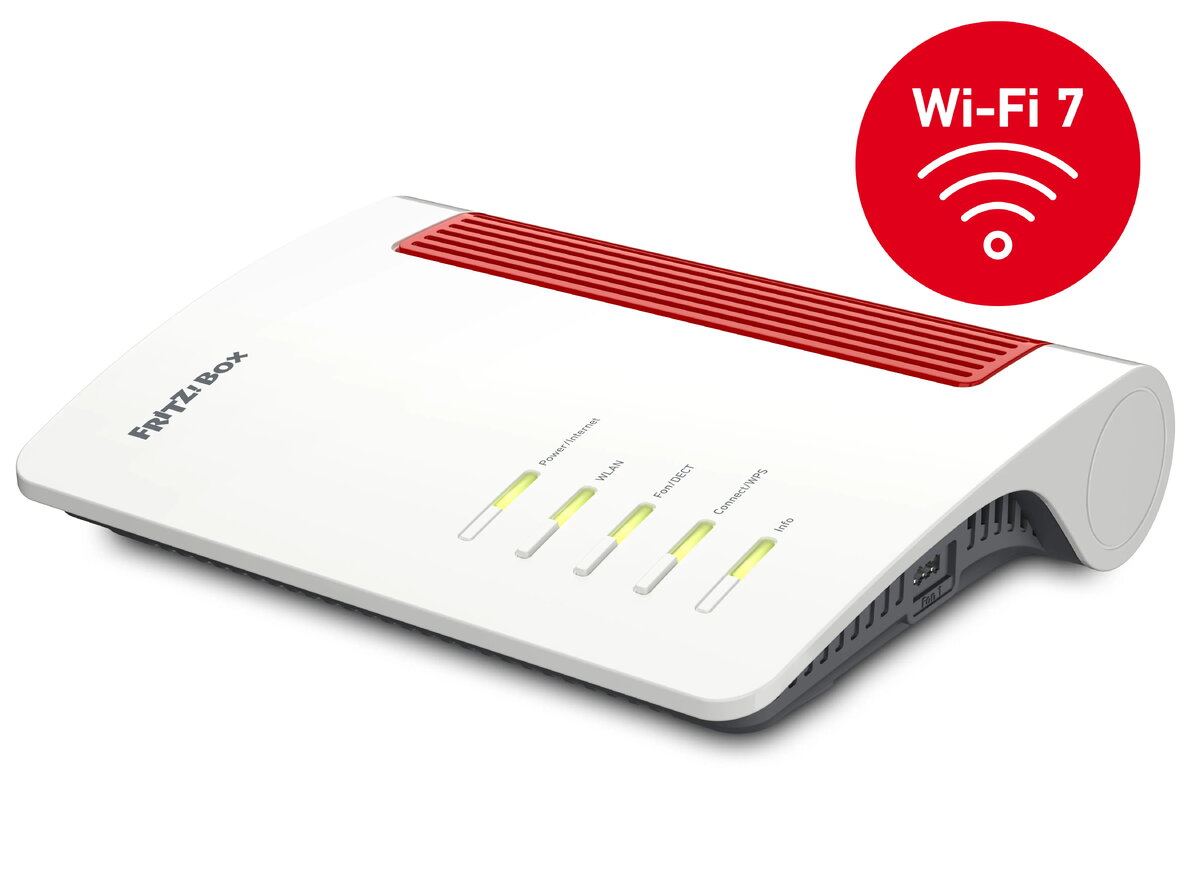

Router FRITZ! Box 4690 — FRITZ broadband router, model 4690

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

FRITZ! Box 4690 is a FRITZ broadband router model 4690 designed to provide home and small office internet connectivity. It serves as a central network device for routing and Wi‑Fi access, supporting wired and wireless clients, network management and device configuration via the FRITZ! web interface. Suitable for setting up local networks, internet access sharing and basic network services.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 11693687

Manufacturer: FRITZ

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 111.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 9.29 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

FRITZ Box 4690 is a tabletop router that supports Dual-band Wi‑Fi 7 (802.11be) with combined WLAN throughput up to 5760 Mbps on the 2.4 / 5 GHz bands. The device includes a 10 Gbps RJ‑45 WAN port and a multi‑rate Ethernet LAN configuration that supports 10/100/1000/2500/10000 Mbps, plus a USB port and a built‑in DECT base for cordless telephony. The FRITZ!OS operating system provides guided setup, automatic updates and integrated Mesh Wi‑Fi management so the router can be used as the central unit in a home or small‑office network.

Advantages

The FRITZ Box 4690 combines Wi‑Fi 7 performance with multi‑gigabit wired connectivity, enabling low‑latency connections for real‑time applications and high throughput for large file transfers. Mesh integration ensures consistent coverage across multiple rooms when used with other FRITZ devices, while security functions such as WPA2/WPA3, WPS and an integrated firewall protect the network. The two‑tone red/white tabletop housing includes LED status indicators for quick visual feedback, and the DECT base supports cordless telephony and smart‑home integration.

Suitable for

Homes with high‑speed fibre connections requiring a 10 Gbps WAN interface
Small offices and work‑from‑home setups needing multi‑gigabit LAN and low latency for conferencing or remote work
Multi‑device households using bandwidth‑intensive streaming, cloud backup, gaming or VR
Environments that use Mesh Wi‑Fi to extend coverage across multiple rooms

Key specifications

Wireless standard: Wi‑Fi 7 (802.11be), dual‑band 2.4 GHz / 5 GHz
Maximum WLAN throughput: up to 5760 Mbps
WAN: RJ‑45 10 Gbps Ethernet port (supports multi‑gigabit connections)
LAN: one 10 Gbps Ethernet port and three 2.5 Gbps Ethernet ports (multi‑rate support)
Additional interfaces: USB port for media server and storage functions
Telephony: integrated DECT base station supporting cordless handsets and answer machine functions
Security: WPA2, WPA3, WPS and built‑in firewall
Form factor and indicators: tabletop design with LED status indicators; red/white housing
Software: FRITZ!OS with Mesh management, automatic updates and NAS/media server features

How to use

Place the FRITZ Box 4690 on a stable tabletop surface near your modem or fibre optic termination and connect the modem to the 10 Gbps RJ‑45 WAN port. Power the unit and follow the FRITZ!OS setup wizard via web interface or companion app to configure the internet connection, wireless SSIDs and security settings. Connect wired devices to the multi‑rate LAN ports or pair them over Wi‑Fi 7 for high throughput. Register DECT handsets to the integrated base station for internal telephony and configure Mesh functions if extending coverage with other FRITZ devices.

Usage recommendations

For best performance, position the router centrally in the coverage area, avoid large metallic obstacles between the router and clients, and enable Mesh features when using additional FRITZ!Repeaters or Powerline adapters. Keep FRITZ!OS automatic updates enabled to receive the latest security fixes and feature improvements.

Specifications

Wi-Fi band:: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard:: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max):: 5760 Mbit/s
USB port:: Yes
Ethernet LAN (RJ-45) ports:: 4
Ethernet LAN:: Yes
Antenna type:: 4x4
Wi-Fi standards:: Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a
Product colour:: Red, White

All features

Wireless LAN features

Wi-Fi band:: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard:: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max):: 5760 Mbit/s
Wi-Fi standards:: Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a
WLAN data transfer rate (first band):: 1200 Mbit/s
WLAN data transfer rate (second band):: 5760 Mbit/s

WAN connection

SIM card slot:: No
Ethernet WAN:: Yes
WAN connection type:: RJ-45

Ports & interfaces

USB port:: Yes
Ethernet LAN data rates:: 10000, 2500, 1000, 100, 10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 1
Ethernet LAN (RJ-45) ports:: 4
RJ-11 ports quantity:: 2
DC-in jack:: Yes

Network

Ethernet LAN:: Yes
Media server:: Yes

Mobile network

Mobile network generation:: Not supported

Antenna

Antenna type:: 4x4
Antenna design:: Internal

Security

Guest access:: Yes
Security algorithms:: WPS, WPA3, WPA2, IPSec
Parental control:: Yes
Firewall:: Yes

Protocols

Universal Plug and Play (UPnP):: Yes

Design

Product type:: Tabletop router
LED indicators:: Status
Product colour:: Red, White

Management features

WPS push button:: Yes

System requirements

Mobile operating systems supported:: Android, iOS

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 14 W
Power source type:: AC

Weight & dimensions

Height:: 69 mm
Width:: 250 mm
Depth:: 184 mm

Certificates

Digital Living Network Alliance (DLNA) certified:: Yes

Packaging content

AC adapter included:: Yes
Cables included:: LAN (RJ-45)
Quick installation guide:: Yes

Logistics data

Warranty period:: 5 year(s)

Hide Show all

Instructions

fritz-20003082-11693687.pdf

Description

Instructions

fritz-20003082-11693687.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Router FRITZ! Box 4690 — FRITZ cost, and is it available for purchase?

The price is 334.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 2 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can Router FRITZ! Box 4690 — FRITZ be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the Router FRITZ! Box 4690 — FRITZ online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All FRITZ products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized FRITZ service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: wi-fi band, top wi-fi standard, wlan data transfer rate (max), usb port, ethernet lan (rj-45) ports, ethernet lan, antenna type, wi-fi standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Router FRITZ! Box 4690 — FRITZ?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
