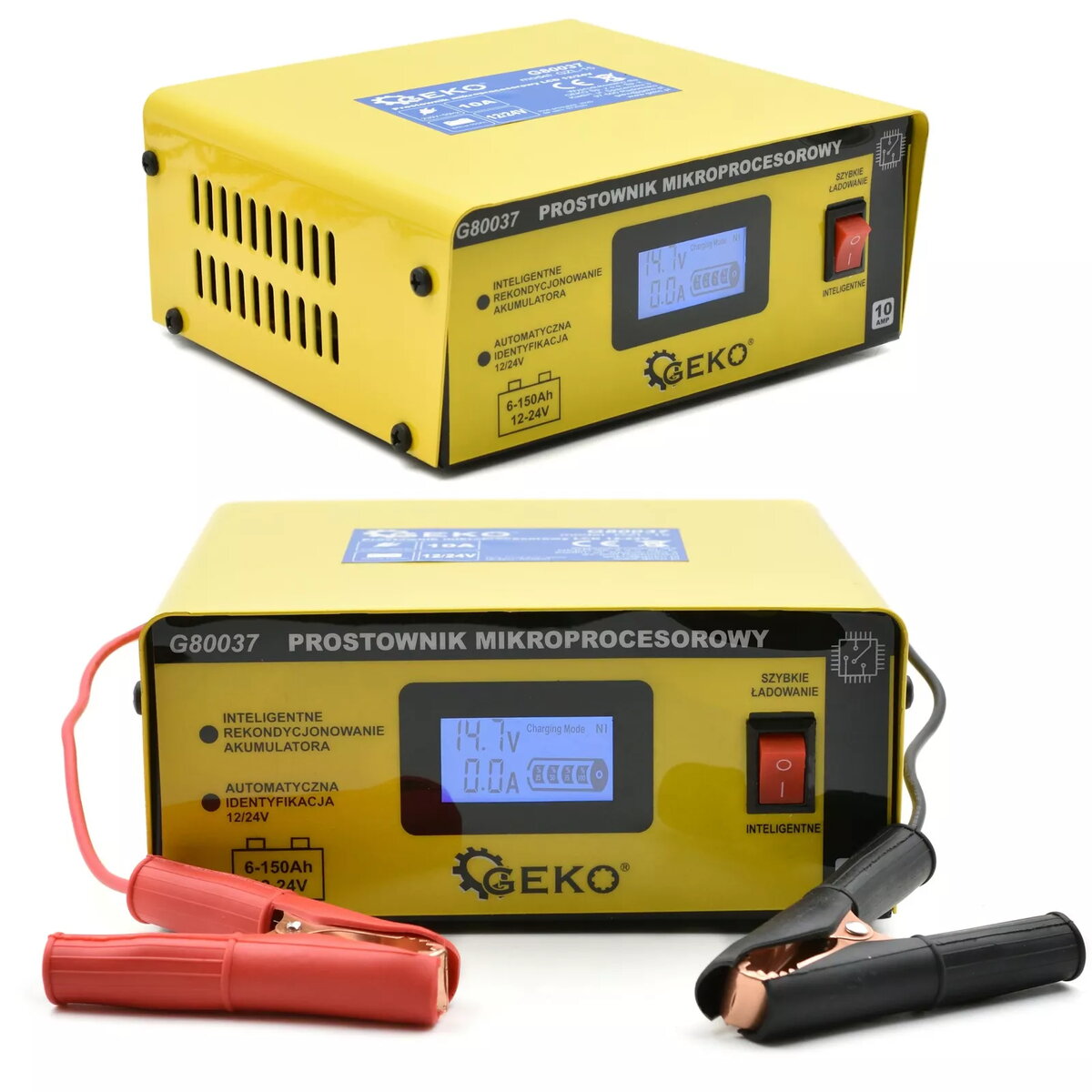

Battery Charger GEKO 7160165 12V/24V for 6–150 Ah batteries

GEKO 7160165 is a charger for 12 V and 24 V lead-acid batteries with capacities from 6 Ah to 150 Ah. It supports charging currents from 0 A to 10 A and is suitable for cars, motorcycles and small commercial vehicles. The device offers automatic 4-stage charging, selectable charging modes (intelligent charge or fast charge) and built-in protections including overvoltage, short-circuit and overheating protection, as well as basic battery diagnostics.

Advantages

The charger features an LCD display with a four-step charge level indicator (20%, 50%, 75%, 100%) and automatic voltage identification for 12 V and 24 V systems. It provides controlled charging up to 10 A and supports maintenance and recharging of discharged starter and maintenance-free lead-acid batteries. Safety functions include overvoltage protection, short-circuit protection, overheating protection and a diagnostic routine to detect battery condition.

Suitable for

• Charging and maintaining 12 V and 24 V lead-acid starter batteries (6–150 Ah)
• Cars, motorcycles and small commercial vehicles
• Seasonal battery storage and routine maintenance

Key specifications

• Model: GEKO 7160165
• Input voltage: 220–240 V, 50 Hz
• Output systems: 12 V and 24 V (automatic identification)
• Voltage detection range 12 V: 8 V–14.5 V
• Voltage detection range 24 V: 18 V–29 V
• Charging current: 0–10 A
• Battery capacity supported: 6 Ah–150 Ah
• Compatible battery types: lead-acid, starter, maintenance-free
• LCD display with 4-step charge indicator (20%, 50%, 75%, 100%)
• Power supply: 220–240 V / 50 Hz
• Power cable length: 130 cm
• Charging cable length: 140 cm

How to use

Connect the charger to the mains (220–240 V, 50 Hz) and attach the clamps to the battery terminals, observing correct polarity. The charger will automatically identify 12 V or 24 V systems within the specified voltage ranges and you can select the preferred charging mode (intelligent or fast). Monitor the LCD display to follow charge progress shown as 20%, 50%, 75% and 100%. After charging completes, disconnect the mains first, then remove the clamps from the battery terminals.

Usage recommendations

Use the GEKO 7160165 charger on batteries within the supported capacity range (6–150 Ah) and of compatible types (lead-acid, starter, maintenance-free). Avoid using the charger on frozen or visibly damaged batteries. Ensure correct polarity when connecting clamps and allow the charger to perform its diagnostic routine before forcing a charging mode. Store the charger in a dry, ventilated place and keep cables untangled to prevent damage.
