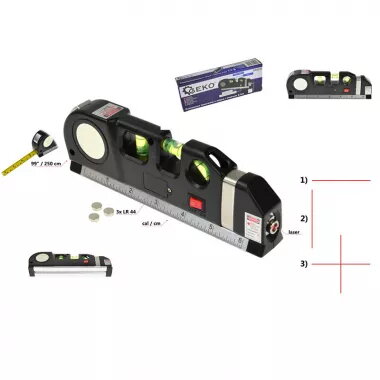

Laser level GEKO G03310 with built-in laser and 2.5 m measuring tape

Laser level GEKO G03310 with built-in laser and 2.5 m measuring tape is a multifunctional measuring tool designed to provide straight lines and precise measurements for a variety of tasks. It combines vertical, horizontal and cross laser marking modes with a 2.5 m tape measure and a 15 cm ruler in a compact ABS and aluminum housing.

Advantages

The device offers three laser marking modes (vertical, horizontal and cross) and an integrated 2.5 m measuring tape for quick on-site measurements. Its compact size (total length 190 mm) and lightweight ABS and aluminium construction make it easy to handle and transport. The laser is a class IIIA device with a maximum output of 5 mW and a wavelength of 630–650 nm, providing clear visible lines for alignment tasks.

Suitable for

• Hanging pictures and shelves
• Aligning tiles and floor coverings
• Basic home renovations and DIY alignment tasks
• Quick on-site measurements with a 2.5 m tape

Key specifications

• Device type: Vertical and horizontal laser level
• Additional: 45° angle level
• Total length: 190 mm
• Laser class: IIIA, max power 5 mW
• Laser wavelength: 630–650 nm
• Ruler length: 15 cm
• Measuring tape: 250 cm
• Material: ABS, aluminium
• Power: 3 × LR44 (AG13) batteries

How to use

Switch the unit on and select the required laser mode (vertical, horizontal or cross). Use the integrated 15 cm ruler or extend the 2.5 m measuring tape for distance measurements. Position the tool on the mounting surface and align the laser line to the desired reference; secure fixtures or mark points as needed. Replace the three LR44 (AG13) batteries when laser brightness diminishes.

Usage recommendations

For safe operation, avoid direct eye exposure to the laser beam. Use on a stable surface or secure the unit to prevent movement while marking. Replace batteries with identical types and store the device in a dry place when not in use.
