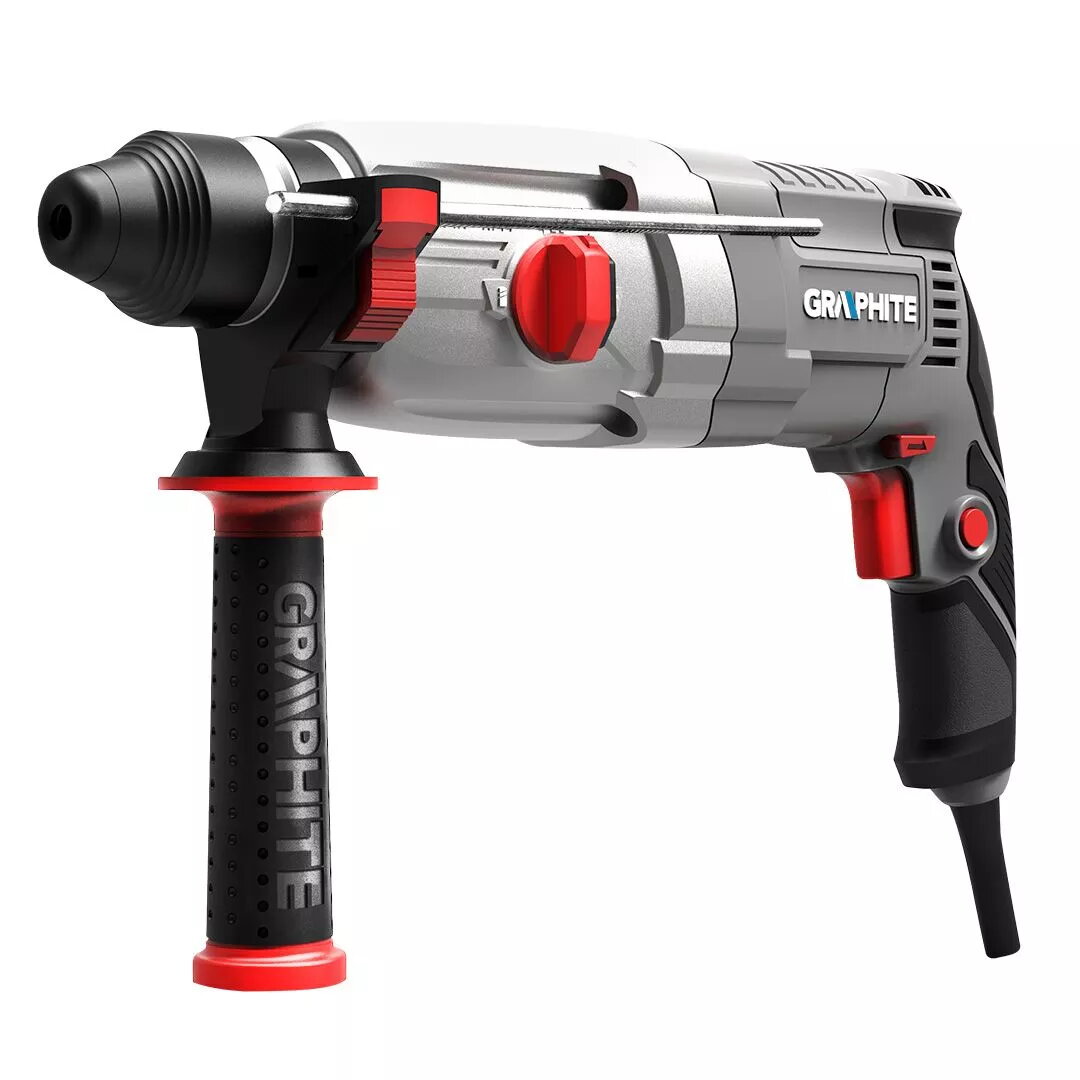

Rotary Hammer Graphite 58G538, Weight: 3.28 kg, Depth: 385 mm

The Graphite 58G538 rotary hammer is an SDS+ class power tool designed for drilling and chiseling in concrete, brick, steel and wood. With an 800 W motor and maximum impact energy of 2.8 J, it delivers high performance for demanding construction, assembly and renovation tasks. The unit weighs 3.28 kg and has a working depth of 385 mm; its four-function design supports standard drilling, drilling with percussion, chiseling (shoring) and stepless adjustment of the chisel angle for precise positioning.

Advantages

The tool combines high drilling power with a compact build, enabling holes up to 26 mm in concrete and brick, up to 13 mm in steel and up to 30 mm in wood. A variable speed control, reverse rotation and a switch lock for continuous operation expand its versatility on site. The robust 3 m rubber-coated cable and CE certification make it suitable for professional and industrial environments. The product set includes an additional drill bit, a drill chuck, a chuck adapter and a practical carrying case for safe transport and storage.

Suitable for

• Drilling and anchoring into concrete and brick
• Chiseling and shoring tasks on masonry and concrete
• Drilling through steel and structural metalwork
• Woodworking tasks requiring higher hole diameters
• Construction, renovation and installation work on-site

Key specifications

• Power: 800 W
• Maximum impact energy: 2.8 J
• Maximum drilling diameter: concrete/brick 26 mm, steel 13 mm, wood 30 mm
• Maximum impact rate at nominal speed: 5500 min-¹
• Maximum no-load speed during drilling: 1350 min-¹

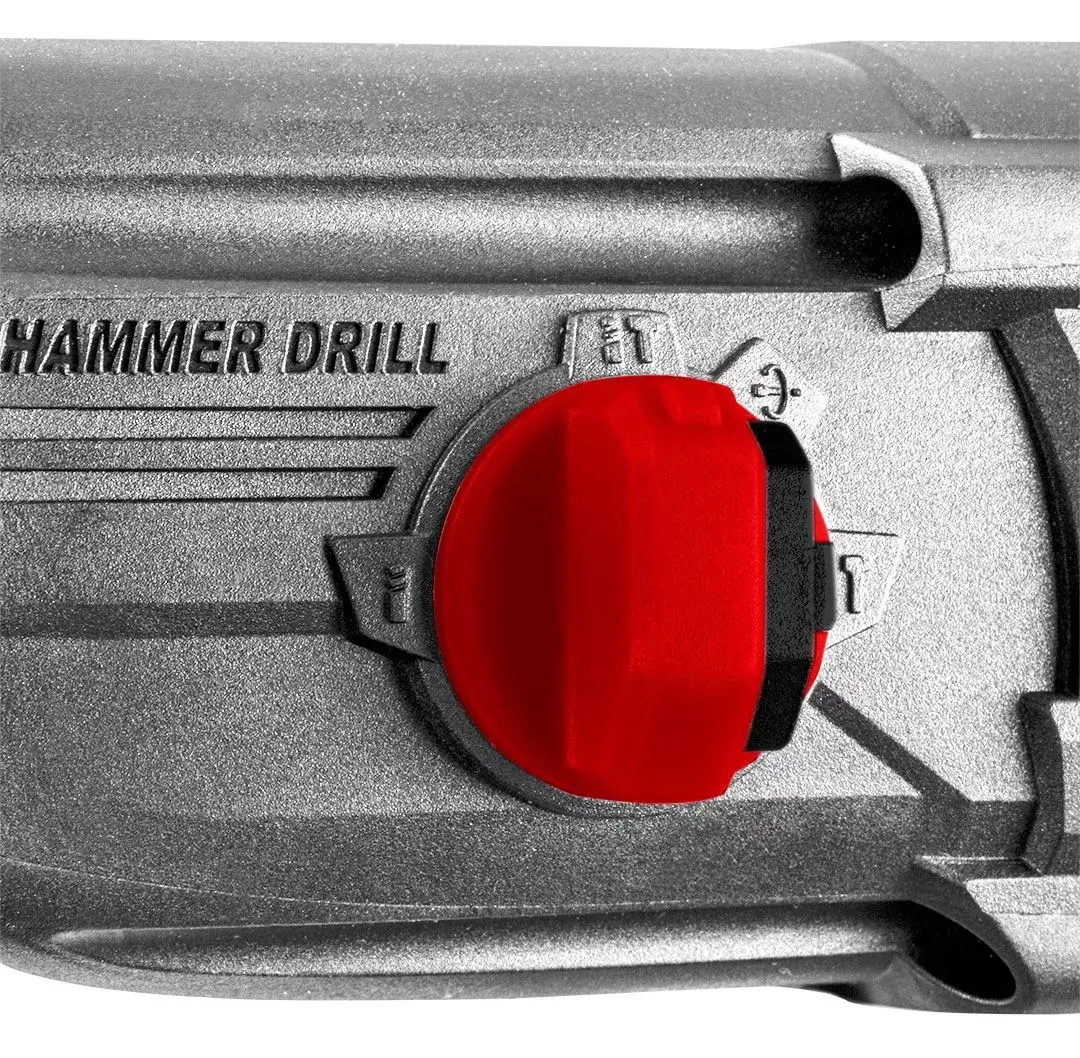

• Four operating modes: drilling, drilling with percussion, chiseling, stepless chisel angle adjustment
• Reverse rotation and variable speed control
• Power cable length: 3 m (rubber-coated)
• Weight: 3.28 kg
• Working depth: 385 mm

How to use

Select the appropriate SDS+ bit or chuck accessory and secure it according to the included adapter or chuck instructions. Choose the operating mode required for the material — drilling, drilling with percussion or chiseling — and set the desired speed and chisel angle. For continuous operations use the switch lock. Start drilling with steady pressure, avoid lateral forces on the bit, and allow the tool to do the work. Use reverse rotation when extracting stuck bits or when backing out screws. When changing accessories or performing maintenance, disconnect the tool from the power supply.

Usage recommendations

Use appropriate personal protective equipment: safety goggles, hearing protection, dust mask and work gloves. For drilling into concrete or masonry begin with a pilot hole if necessary, and clear dust from holes periodically to maintain drilling efficiency. For prolonged chiseling, periodically check accessory tightness and allow the motor to cool during extended continuous use. Store the rotary hammer and accessories in the supplied carrying case to protect components during transport.
