Graphite 58G878 Drill

Name: Graphite 58G878 Straight Drill 1700 58G878
Brand: GRAPHITE
SKU: 10791733
Price: 275.99 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

Graphite 58G878 Straight Drill 1700 W SDS Max 1900 RPM Black Red Silver

Short description

The Graphite 58G878 straight drill is a powerful AC-powered tool equipped with an SDS Max chuck, designed for demanding drilling and hammer drilling applications. Featuring a 1700 W input power, adjustable idle speed from 950 to 1900 RPM, and a maximum concrete drilling diameter of 5 cm, this robust black, red, and silver device delivers reliable performance for heavy-duty construction and renovation tasks.

Warranty: 2 Years

SKU: 10791733

Manufacturer: GRAPHITE

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

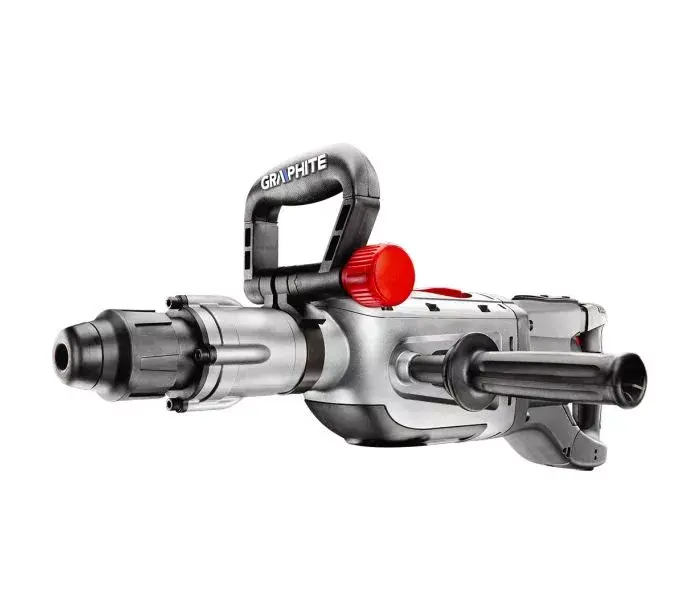

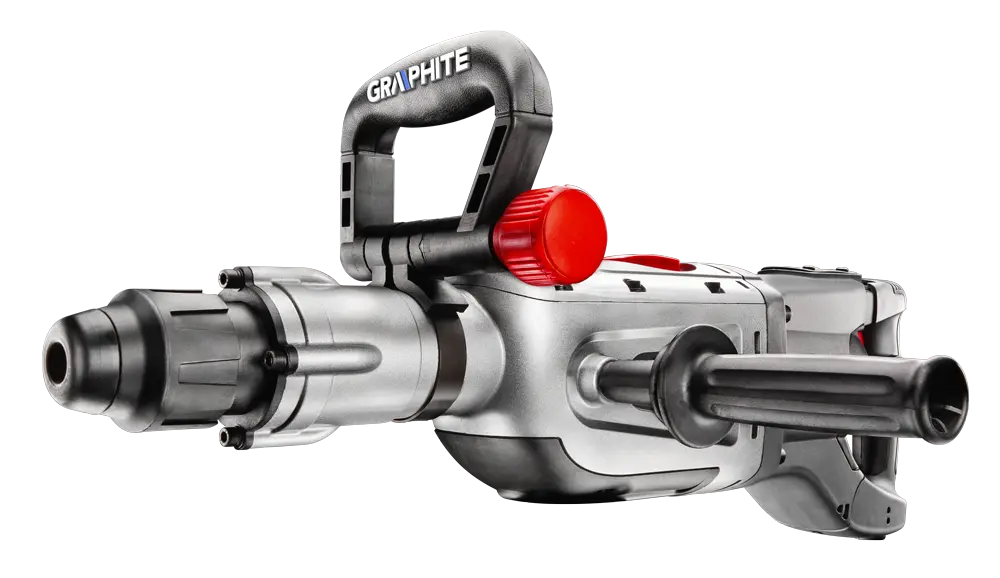

The Graphite 58G878 straight drill is a heavy-duty, AC-powered rotary hammer designed for demanding construction, renovation, and demolition tasks. Equipped with a robust 1700 W motor and an SDS Max chuck system, this professional tool delivers reliable performance when working with tough mineral materials like concrete, brick, and stone. Featuring an adjustable impact rate from 950 to 1900 impacts per minute and an impact energy of 27 J, it handles intense workloads efficiently while incorporating an integrated shock absorption system in the main handle to reduce user fatigue during extended operation.

Advantages

The tool stands out through its versatile three-function operation, supporting drilling with impact, chiselling, and precise chisel angle adjustment for optimal adaptation to the task at hand. Operational safety and durability are enhanced by a built-in overload clutch that protects the mechanism against accidental overheating, alongside a reinforced magnesium alloy gear casing. The ergonomic design includes an anti-slip coating on the handle for a secure grip and improved working comfort, while the durable 4-meter rubber-coated power cord provides flexibility for both indoor and outdoor professional applications.

Suitable for

Heavy-duty concrete drilling up to 50 mm in diameter
Demolition and chiselling work on brick and stone structures
Advanced professional fitting and renovation tasks

When it may not be suitable

This powerful demolition hammer is not intended for delicate woodworking, standard household screwdriving, or precision drilling into soft materials such as thin plastics or light metals where lower power and non-impact settings are required.

Key specifications

Power source: AC electricity
Input power: 1700 W
Chuck type: SDS Max
Maximum concrete drilling diameter: 50 mm
Impact energy: 27 J
Impact rate: 950 to 1900 impacts per minute
Rotary speed: 160 to 320 RPM
Functions: Drilling, hammer drilling, chiselling

How to use

Before operation, ensure the tool is disconnected from the power source and securely insert the appropriate SDS Max accessory, such as a concrete drill or chisel, into the chuck. Select the required operating mode using the function selector to switch between drilling, hammer drilling, or chiselling, and adjust the chisel angle if necessary. Connect the 4-meter power cord to a compatible AC power supply, grip the tool firmly using both the main anti-slip handle and the auxiliary support, and engage the trigger while maintaining steady, controlled pressure on the work surface.

What to consider before purchase

Ensure your workspace has a compatible AC power supply capable of handling a 1700 W high-power tool
Verify that your project requirements match the heavy-duty capabilities of an SDS Max system

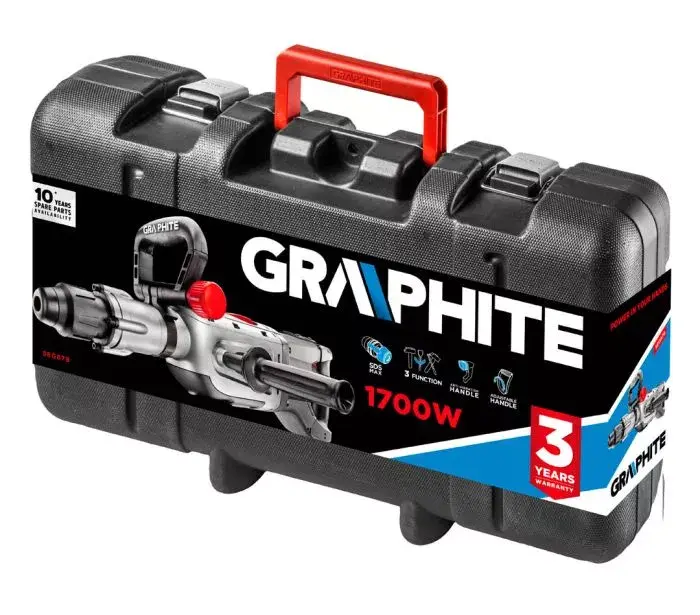

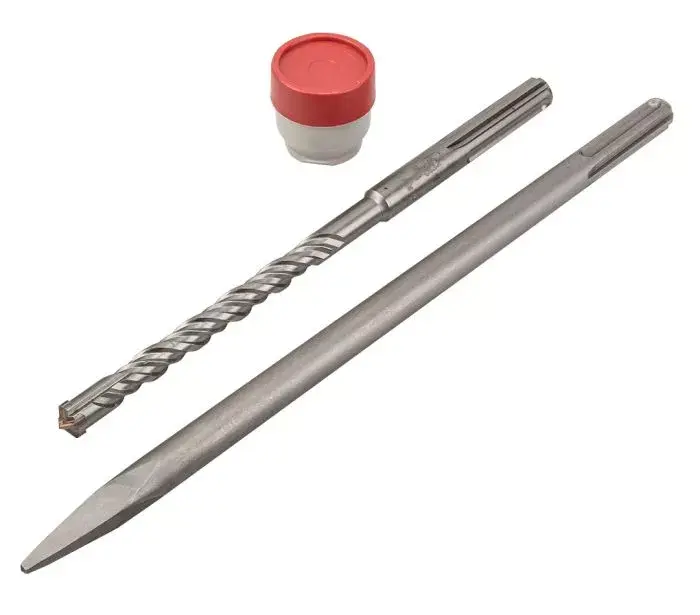

Check that the included accessories, such as the concrete drill and chisel, meet your immediate operational needs

Usage recommendations: Always wear appropriate personal protective equipment, including eye protection, hearing protection, and a dust mask, especially when utilizing the anti-dust shield included in the set. Allow the tool to cool down periodically during continuous heavy demolition to extend its operational lifespan.

Specifications

Power source: What is providing power for the product e.g. mains electricity.: AC
Drilling diameter in concrete (max): The maximum width of the hole which can be drilled in concrete.: 50 mm
Chuck type: A chuck is a specialized type of clamp used to hold an object, usually an object with radial symmetry, especially a cylindrical object. It is most commonly used to hold a rotating tool (such as the drill bit in a power tool) or a rotating workpiece (such as the bar or blank in the headstock spindle of a lathe).: SDS Max
Hammer drilling: Also known as hammer drilling, this is use of a rotary drill with a hammering action. The hammering action provides a short, rapid hammer thrust to pulverize relatively brittle material and provide quicker drilling with less effort. These tools are usually electrically powered, and increasingly powered by batteries. The same technology is also used in electric "demolition hammers", also known as "chipping guns" or "breakers".: Yes
Drilling: The device features the option to drill with it, i.e. bore a hole in hard materials using a bit for rotating abrasion.: Yes

All features

Product design: The creation of a plan or convention for the construction of an object or a system.: Straight drill
Idle speed (min):: 950 RPM
Hangable:: Yes
Screwdriving:: No

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.: 205 mm
Depth: The distance from the front to the back of something.: 730 mm

Power

AC input frequency:: 50
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 230
Input power: The power that is inputted into the device.: 1700 W
Power source: What is providing power for the product e.g. mains electricity.: AC

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: CE

Performance

Sound power level:: 105 dB
Drilling diameter in concrete (max): The maximum width of the hole which can be drilled in concrete.: 50 mm
Idle speed (max):: 1900 RPM

Features

Product colour: The colour e.g. red, blue, green, black, white.: Black, Red, Silver
Built-in light: There is a light which is inside/on the outside of the product.: No
Number of gears:: 3
Adjustable speed: The speed can be changed.: Yes
Chuck type: A chuck is a specialized type of clamp used to hold an object, usually an object with radial symmetry, especially a cylindrical object. It is most commonly used to hold a rotating tool (such as the drill bit in a power tool) or a rotating workpiece (such as the bar or blank in the headstock spindle of a lathe).: SDS Max
Hammer drilling: Also known as hammer drilling, this is use of a rotary drill with a hammering action. The hammering action provides a short, rapid hammer thrust to pulverize relatively brittle material and provide quicker drilling with less effort. These tools are usually electrically powered, and increasingly powered by batteries. The same technology is also used in electric "demolition hammers", also known as "chipping guns" or "breakers".: Yes
Drilling: The device features the option to drill with it, i.e. bore a hole in hard materials using a bit for rotating abrasion.: Yes

Hide Show all

Instructions

graphite-58G878-10791733.pdf

Description

Instructions

graphite-58G878-10791733.pdf

Machine translation.

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All GRAPHITE products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized GRAPHITE service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: power source, drilling diameter in concrete (max), chuck type, hammer drilling, drilling, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Graphite 58G878 Drill?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
