Magnetic welding angle GRAPHITE 5902062007285 — 22.7 kg holding capacity, 45° and 90° positions

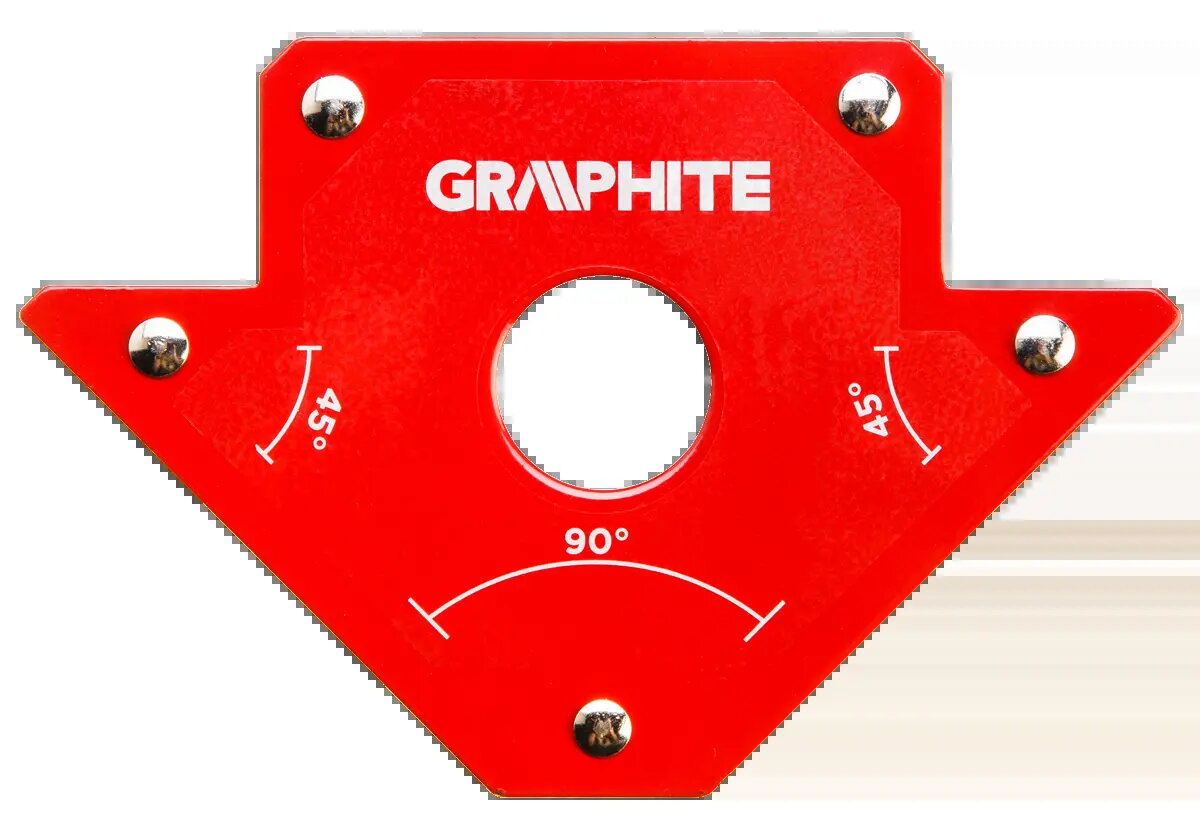

GRAPHITE magnetic welding angle is a compact magnetic clamp designed to hold ferrous metal parts at precise 45° and 90° angles. Intended for use in welding, soldering, assembly and light fabrication tasks, the tool provides repeatable positioning and frees both hands for work. Its permanent magnet design offers consistent clamping force for aligning steel components during on-site repairs or workshop projects.

Advantages

The device delivers stable magnetic holding with a rated capacity of 22.7 kg, enabling secure fixation of small to medium workpieces without mechanical clamps. Its two fixed angle positions—45° and 90°—simplify setup and reduce measurement time. The compact, lightweight construction makes it easy to carry and position, while the magnetized faces offer direct contact gripping for quick alignment and repositioning.

Suitable for

• Welding and tack welding of steel and other ferrous materials
• Soldering and brazing tasks requiring fixed angles
• Assembly, jigging and temporary holding during fabrication
• On-site repairs where portable magnetic clamping is needed

Key specifications

• Holding capacity: 22.7 kg
• Available fixed angles: 45° and 90°
• Material compatibility: ferrous metals (steel, iron)
• Magnet type: permanent magnetic clamping faces
• Form factor: compact, handheld magnetic angle

How to use

Place the magnetic faces against clean, flat areas of the ferrous workpieces to be joined, selecting either the 45° or 90° orientation as required. Ensure surfaces are free of heavy rust, paint flakes or debris to maximize contact and holding strength. Once the pieces are in contact with the magnetic faces and held steady, perform tack welding, soldering or assembly operations. After work is completed or when repositioning is needed, simply lift the magnetic angle away from the parts.

Usage recommendations

For reliable clamping, clean the contact surfaces and avoid using the magnetic angle on non-ferrous materials. Use additional mechanical supports for heavy or critical assemblies that exceed the rated holding capacity. Store the tool dry and away from magnetic-sensitive items.
